VX-5HD
VX-5HD

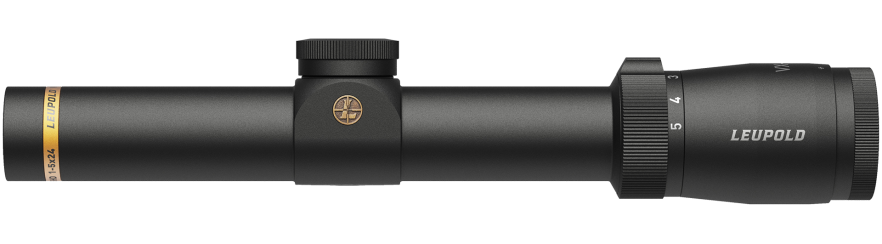

1-5x24
VX-5HD

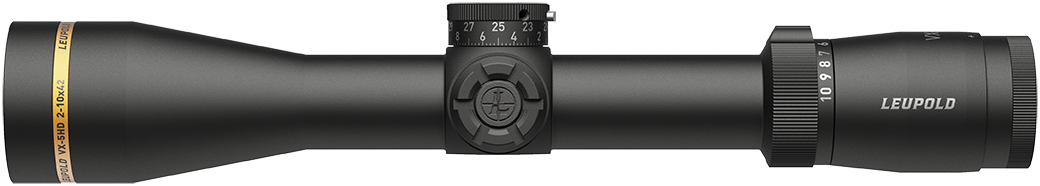

2-10x42
VX-5HD

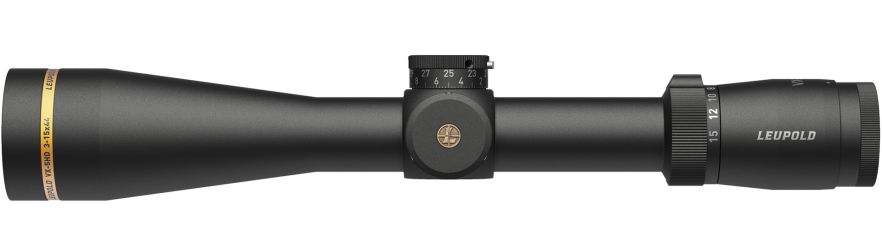

3-15x44
VX-5HD
3-15x56
VX-5HD

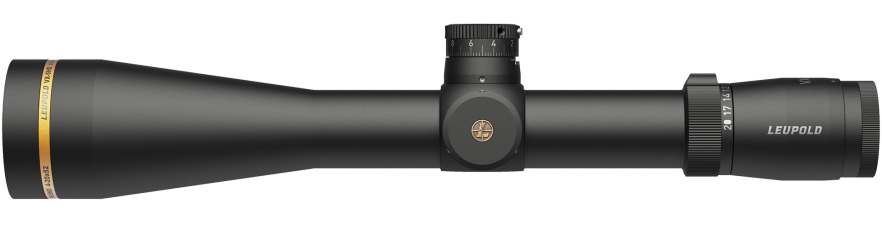

4-20x52
VX-5HD

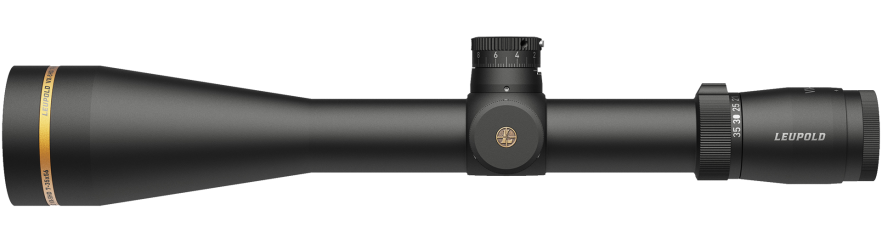

7-35x56
1-5x24
2-10x42
3-15x44
3-15x56
4-20x52
7-35x56

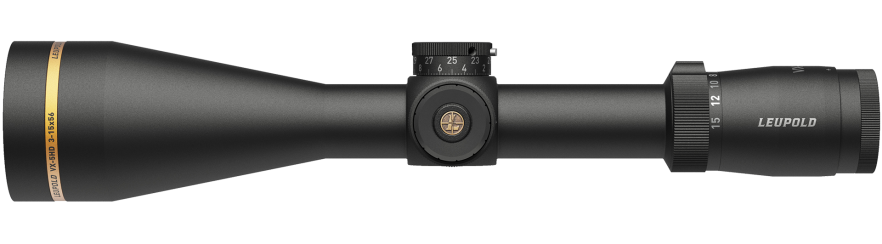

The VX®-5HD riflescope has everything you need and nothing you don’t. With high-definition lenses, extended low-light hunting performance, and our Lifetime Guarantee, this is the only scope you’ll ever need.
Lifetime
Guarantee Anyone can offer you a lifetime warranty, but guaranteeing performance takes serious dedication and craftsmanship. From our Beaverton Oregon factory to the wilderness, the battlefield, and everywhere in between, we won't let you down.
Features
5:1 Zoom Ratio
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Professional-Grade Optical System
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.

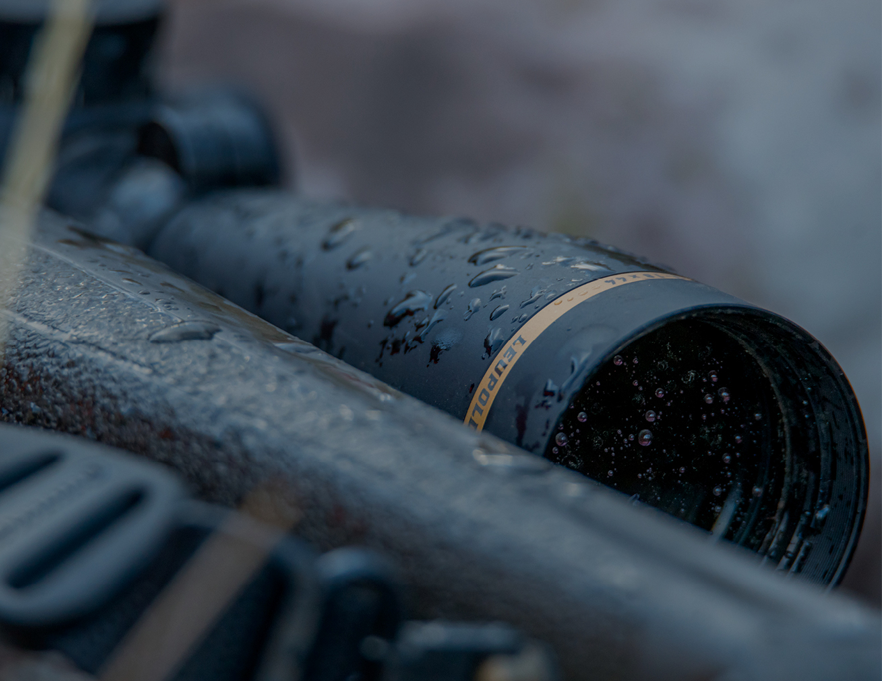

Guard-Ion Lens Coating
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
High-Definition Performance
Experience the difference with Leupold's High-Definition lenses, which provide unparalleled clarity, color, and image quality all the way to the edge of your field of view.
CDS-ZL2 Elevation Dial
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock® system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
Motion Sensor Technology (MST™)
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Lightweight, Rugged Performance
Leupold's lightweight design disperses recoil energy for unrivaled performance with ultra-lightweight construction.
5:1 Zoom Ratio
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Professional-Grade Optical System
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Guard-Ion Lens Coating
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
High-Definition Performance
Experience the difference with Leupold's High-Definition lenses, which provide unparalleled clarity, color, and image quality all the way to the edge of your field of view.
CDS-ZL2 Elevation Dial
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock® system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
Motion Sensor Technology (MST™)
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Lightweight, Rugged Performance
Leupold's lightweight design disperses recoil energy for unrivaled performance with ultra-lightweight construction.
| Part# | Product image | Part# | Power | Tube diameter | Reticle | Eye relief | Linear FOV | Elevation ADJ. range (MOA) | Windage ADJ. range (MOA) | Custom dial system | Elevation Type | Price | Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VX-5HD 2-10x42 Duplex | ||||||||||||||
| 171386 |
|
171386 | 2 - 10 | 30 mm |
Duplex®
| 3.7 - 3.8 | 56.5 - 11.5 | 70 | 70 | Yes | Pop-Up Rezero |
$1,099.99
|
||
| VX-5HD 3-15x44 CDS-ZL2 Side Focus Wind-Plex | ||||||||||||||
| 171715 |
|
171715 | 3 - 15 | 30 mm |
Wind-Plex
| 3.7 - 3.8 | 38.3 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,099.99
|
||
| VX-5HD 3-15x44 CDS-ZL2 Side Focus Duplex | ||||||||||||||
| 171714 |
|
171714 | 3 - 15 | 30 mm |
Duplex®
| 3.7 - 3.8 | 38.3 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,099.99
|
||
| VX-5HD 3-15x44 CDS-ZL2 Side Focus HTMR | ||||||||||||||
| 178027 |
|
178027 | 3 - 15 | 30 mm |
HTMR
| 3.7 - 3.8 | 38.3 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,199.99
|
||
| VX-5HD 1-5x24 CDS-ZL2 Illum. FireDot Duplex | ||||||||||||||
| 172367 |
|
172367 | 1 - 5 | 30 mm |
FireDot® Duplex® Illum.
| 3.7 - 3.8 | 120.9 - 22 | 170 | 170 | Yes | CDS-ZL2 |
$1,199.99
|
||
| VX-5HD 2-10x42 CDS-ZL2 Illum. FireDot Duplex | ||||||||||||||
| 171389 |
|
171389 | 2 - 10 | 30 mm |
FireDot® Duplex® Illum.
| 3.7 - 3.8 | 56.5 - 11.5 | 70 | 70 | Yes | CDS-ZL2 |
$1,199.99
|
||
| VX-5HD 3-15x44 CDS-ZL2 Side Focus Illum. FireDot Duplex | ||||||||||||||
| 172368 |
|
172368 | 3 - 15 | 30 mm |
FireDot® Duplex® Illum.
| 3.7 - 3.8 | 38.3 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,199.99
|
||
| VX-5HD 3-15x44 CDS-ZL2 Side Focus Impact-29 MOA | ||||||||||||||
| 171716 |
|
171716 | 3 - 15 | 30 mm |
Impact-29 MOA
| 3.7 - 3.8 | 38.3 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,399.99
|
||
| VX-5HD 3-15x44 CDS-ZL2 Side Focus Boone & Crockett | ||||||||||||||
| 171717 |
|
171717 | 3 - 15 | 30 mm |
Boone & Crockett®
| 3.7 - 3.8 | 38.3 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,399.99
|
||
| VX-5HD 3-15x56 CDS-ZL2 Side Focus Metric Illum. FireDot 4 Fine | ||||||||||||||
| 175834 |
|
175834 | 3 - 15 | 30 mm |
FireDot® 4 Fine Illum.
| 3.7 - 3.8 | 38.3 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,499.99
|
||
| VX-5HD 3-15x56 CDS-ZL2 Side Focus Illum. FireDot Duplex | ||||||||||||||
| 171390 |
|
171390 | 3 - 15 | 30 mm |
FireDot® Duplex® Illum.
| 3.7 - 3.8 | 38.3 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,499.99
|
||
| VX-5HD 4-20x52 CDS-ZL2 Side Focus Duplex | ||||||||||||||
| 171701 |
|
171701 | 4 - 20 | 34 mm |
Duplex®
| 3.7 - 3.8 | 28.4 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,699.99
|
||
| VX-5HD 4-20x52 CDS-TZL3 Side Focus TMOA | ||||||||||||||
| 171700 |
|
171700 | 4 - 20 | 34 mm |
TMOA®
| 3.7 - 3.8 | 28.1 - 5.8 | 75 | 75 | Yes | CDS-TZL3 |
$1,899.99
|
||
| VX-5HD 4-20x52 CDS-ZL2 Side Focus FireDot Duplex | ||||||||||||||
| 178166 |
|
178166 | 4 - 20 | 34 mm |
FireDot® Duplex® Illum.
| 3.7 - 3.8 | 28.4 - 7.7 | 75 | 75 | Yes | CDS-ZL2 |
$1,899.99
|
||
| VX-5HD 7-35x56 CDS-TZL3 Side Focus Impact-14 MOA | ||||||||||||||
| 173221 |
|
173221 | 7 - 35 | 34 mm |
Impact-14 MOA
| 3.7 - 3.8 | 16.3 - 3.1 | 50 | 50 | Yes | CDS-TZL3 |
$2,099.99
|
||
| VX-5HD 7-35x56 CDS-TZL3 Side Focus TMOA | ||||||||||||||
| 172754 |
|
172754 | 7 - 35 | 34 mm |
TMOA®
| 3.7 - 3.8 | 16.3 - 3.1 | 50 | 50 | Yes | CDS-TZL3 |
$2,099.99
|
||
