VX-5HD

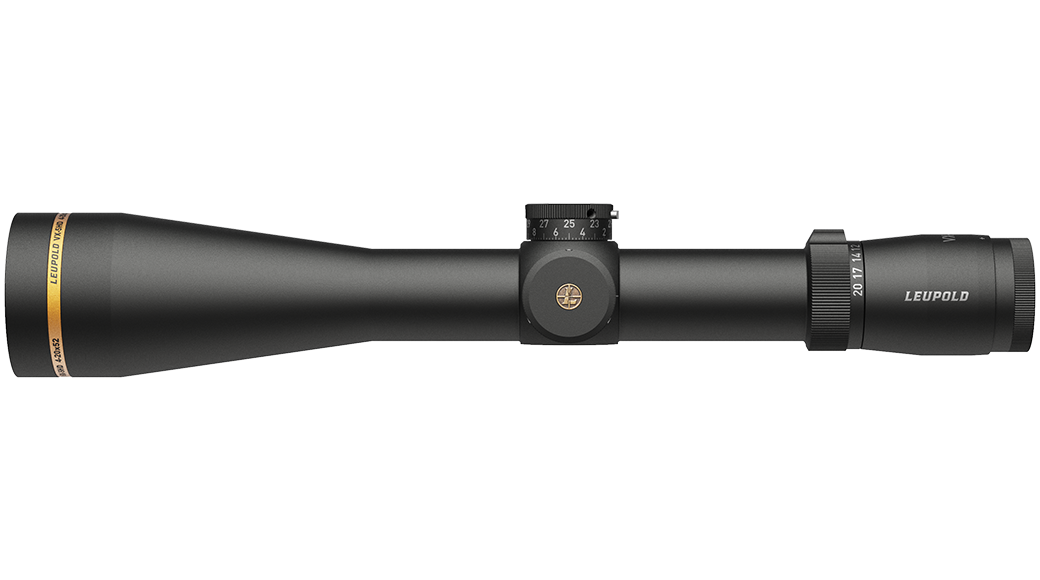

VX-5HD 4-20x52 CDS-ZL2 Side Focus Duplex

Part #
171701

The VX®-5HD 4-20x52mm may just be that sweet spot you've been looking for in magnification ranges. Low enough magnification to get the job done in densely wooded areas and enough horsepower at the top-end to make accurate shots at long distances.

Duplex® Reticle info
$1,699.99
Find it locally

The VX®-5HD 4-20x52mm may just be that sweet spot you've been looking for in magnification ranges. Low enough magnification to get the job done in densely wooded areas and enough horsepower at the top-end to make accurate shots at long distances. This scope has the versatility to dominate them all.

The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Adjustable Parallax Side Focus
BDC Dial Included No
Custom Dial Compatible Yes
Daylight Bright Illumination No
Custom Dial System (CDS) Yes
Elevation Adjustment Type CDS-ZL2
Electronic Reticle Level No
Illuminated No
Light Management System Professional-Grade Optical System
Locking Dial Yes
Magnification Type Variable
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Reticle Focal Plane Second Focal Plane
Revolution Indicator Yes
Reticle Duplex
Rezero Type Set Screw
Reticle Type Second Focal Plane
Adjustable Objective No
Windage Adjustment Type Pop-Up Rezero
Weight (oz) 23.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 22
Elevation Adjustment Range (cm @ 100m) 218
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 22
Windage Adjustment Range (cm @ 100m) 218
Windage Adjustment Per Revolution 15 MOA
Magnification Max 20
Magnification Min 4
Objective Lens Diameter (mm) 52
Linear FOV Low Mag (ft@100yds) 28.4
Linear FOV High Mag (ft@100yds) 7.7
Angular FOV Low Mag (Degrees) 5.4
Angular FOV High Mag (Degrees) 1.5
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50

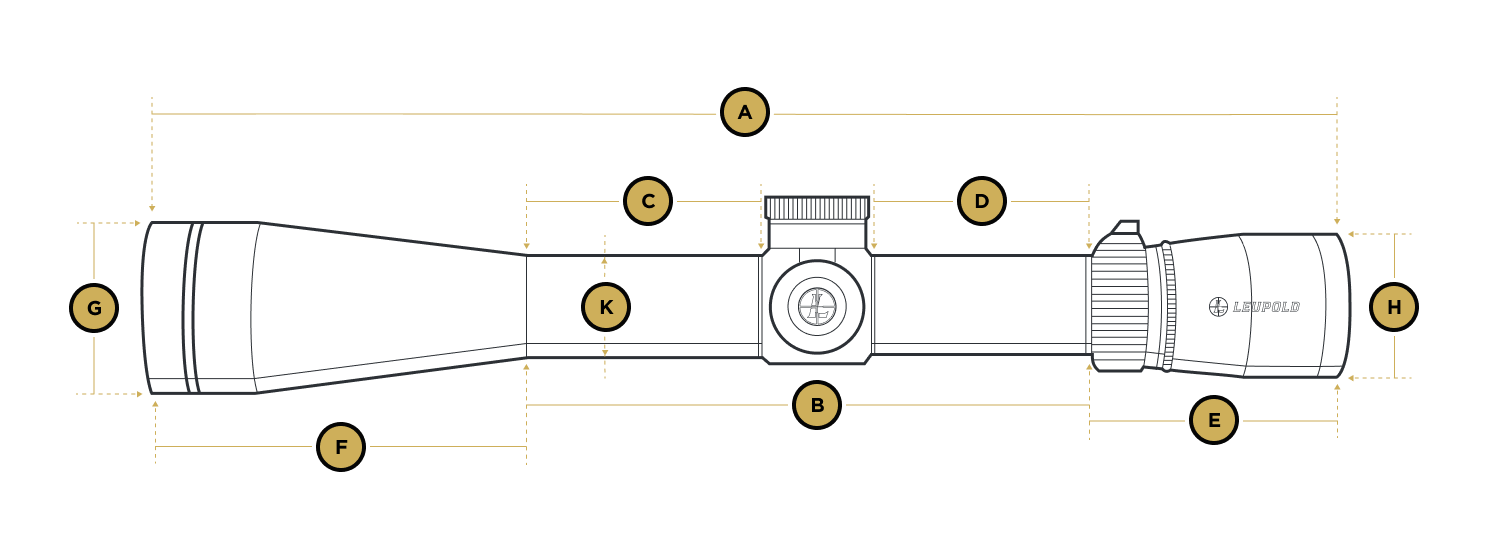

Dimensions
A Total Length (in) - A 14.7
B Total Mounting Space (in) - B 6.2
C Front Mounting Space (in) - C 2.1
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 5.1
G Objective Diameter (in) - G 2.4
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 34 mm

Detailed reticle info

Duplex®

Download PDF
  • Invented in 1962 by Leupold®
  • Defined by heavy posts
  • Stands out against cover in low light
  • Quick target acquisition with thin lines at the center
  • Most popular reticle in the world
  • Rear (second) focal plane
