Waterproof & Fogproof
Impact Tested & Verified
Extreme Climate Tested & Verified

Mark 5HD rifle scope delivers superior edge-to-edge clarity and extreme low-light performance, while the versatility of its multiple reticle options will give you an advantage at the range or in the field. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long-range rifles and ammo.

Lifetime Guarantee Lifetime
Guarantee
Anyone can offer you a lifetime warranty, but guaranteeing performance takes serious dedication and craftsmanship. From our Beaverton Oregon factory to the wilderness, the battlefield, and everywhere in between, we won't let you down.

Features

5:1 Zoom Ratio

A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.

Professional-Grade Optical System

Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.

1/10 MIL or 1/4 MOA Click Adjustment

The available 1/10th MIL (M5C3) or 1/4 MOA (M1C3) click windage and elevation provide precise and repeatable dialing for any shooter.

M5C3 ZeroLock® Adjustments

These low-profile dials are available on select models and provide up to 30-MILs of adjustment in 3 revolutions and 0.1 MIL clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.

M1C3 Adjustments

These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.

Motion Sensor Technology (MST™)

Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.

35mm Maintube

Larger 34mm and 35mm maintubes produce ample windage and elevation adjustment travel, which is ideal for long-range shooting.

Waterproof, Fogproof, & Shockproof

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

5:1 Zoom Ratio

A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.

Professional-Grade Optical System

Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.

1/10 MIL or 1/4 MOA Click Adjustment

The available 1/10th MIL (M5C3) or 1/4 MOA (M1C3) click windage and elevation provide precise and repeatable dialing for any shooter.

M5C3 ZeroLock® Adjustments

These low-profile dials are available on select models and provide up to 30-MILs of adjustment in 3 revolutions and 0.1 MIL clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.

M1C3 Adjustments

These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.

Motion Sensor Technology (MST™)

Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.

35mm Maintube

Larger 34mm and 35mm maintubes produce ample windage and elevation adjustment travel, which is ideal for long-range shooting.

Waterproof, Fogproof, & Shockproof

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Part# Product image Part# Power Tube diameter Reticle Eye relief Linear FOV Elevation ADJ. range (MOA) Windage ADJ. range (MOA) Custom dial system Elevation Type Price Details

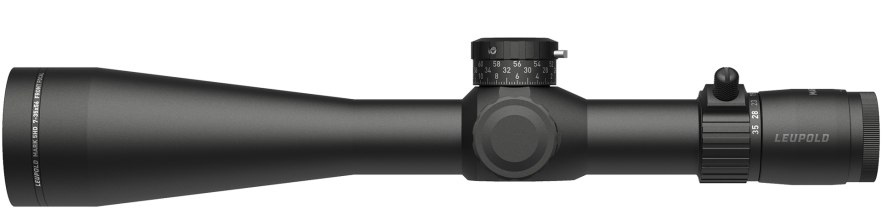

Mark 5HD 7-35x56 M5C3 Illum. FFP Tremor 3
177333 Mark 5HD 7-35x56 MIL 177333 7 - 35 35 mm
Illum. FFP Tremor 3
Illum. FFP Tremor 3
3.6 - 3.8 14.7 - 3 100 50 No M5C3
$3,099.99

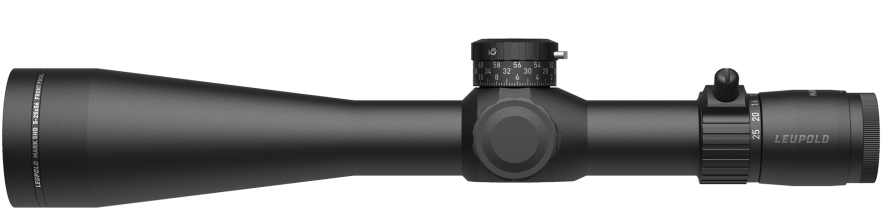

Mark 5HD 5-25x56 M5C3 Illum. FFP Tremor 3
171777 Mark 5HD 5-25x56 MIL 171777 5 - 25 35 mm
Illum. FFP Tremor 3
Illum. FFP Tremor 3
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$2,799.99
Mark 5HD 7-35x56 M5C3 Illum. FFP TMR
176124 Mark 5HD 7-35x56 MIL 176124 7 - 35 35 mm
Illum. FFP TMR (Mk)
Illum. FFP TMR (Mk)
3.6 - 3.8 14.7 - 3 100 50 No M5C3
$2,799.99

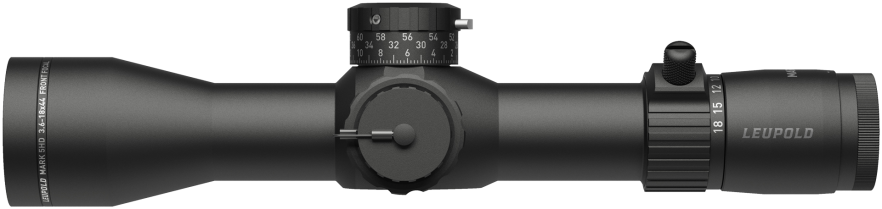

Mark 5HD 3.6-18x44 M5C3 Illum. FFP Tremor 3
176811 Mark 5HD 3.6-18x44 MIL 176811 3.6 - 18 35 mm
Illum. FFP Tremor 3
Illum. FFP Tremor 3
3.5 - 3.8 28.3 - 5.8 100 80 No M5C3
$2,599.99
Mark 5HD 7-35x56 M5C3 FFP H59
174545 Mark 5HD 7-35x56 MIL 174545 7 - 35 35 mm
FFP H59
FFP H59
3.6 - 3.8 14.7 - 3 100 50 No M5C3
$2,599.99
Mark 5HD 7-35x56 M5C3 FFP Tremor 3
177332 Mark 5HD 7-35x56 MIL 177332 7 - 35 35 mm
FFP Tremor 3
FFP Tremor 3
3.6 - 3.8 14.7 - 3 100 50 No M5C3
$2,599.99
Mark 5HD 5-25x56 M1C3 Illum. FFP PR-1MOA
176449 Mark 5HD 5-25x56 MOA 176449 5 - 25 35 mm
Illum. FFP PR1-MOA
Illum. FFP PR1-MOA
3.6 - 3.8 20.4 - 4.2 120 60 No M1C3
$2,569.99
Mark 5HD 5-25x56 M5C3 FFP Illum. PR1-Mil
180610 Mark 5HD 5-25x56 M5C3 FFP Illum. PR1-Mil 180610 5 - 25 35 mm
Illum. FFP PR-1MIL
Illum. FFP PR-1MIL
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$2,569.99
Mark 5HD 5-25x56 M5C3 Illum. FFP TMR
171776 Mark 5HD 5-25x56 MIL 171776 5 - 25 35 mm
Illum. FFP TMR (Mk)
Illum. FFP TMR (Mk)
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$2,499.99
Mark 5HD 7-35x56 M1C3 FFP Impact 60 MOA
174548 Mark 5HD 7-35x56 MOA 174548 7 - 35 35 mm
FFP Impact-60 MOA
FFP Impact-60 MOA
3.6 - 3.8 14.7 - 3 100 50 No M1C3
$2,399.99
Mark 5HD 7-35x56 M5C3 FFP CCH
174546 Mark 5HD 7-35x56 MIL 174546 7 - 35 35 mm
FFP CCH
FFP CCH
3.6 - 3.8 14.7 - 3 100 50 No M5C3
$2,399.99
Mark 5HD 5-25x56 M5C3 FFP H59
171774 Mark 5HD 5-25x56 MIL 171774 5 - 25 35 mm
FFP H59
FFP H59
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$2,299.99
Mark 5HD 7-35x56 M5C3 FFP TMR
176594 Mark 5HD 7-35x56 MIL 176594 7 - 35 35 mm
FFP TMR (Mk)
FFP TMR (Mk)
3.6 - 3.8 14.7 - 3 100 50 No M5C3
$2,299.99
Mark 5HD 7-35x56 M1C3 TMOA Plus
174549 Mark 5HD 7-35x56 M1C3 MOA Second Focal 174549 7 - 35 35 mm
TMOA Plus
TMOA Plus
3.6 - 3.8 14.7 - 3 100 50 No M1C3
$2,299.99
Mark 5HD 5-25x56 M5C3 FFP Tremor 3
171775 Mark 5HD 5-25x56 MIL 171775 5 - 25 35 mm
FFP Tremor 3
FFP Tremor 3
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$2,299.99
Mark 5HD 3.6-18x44 M5C3 FFP Illum. PR1-MIL
180725 Mark 5HD 3.6-18x44 M5C3 FFP Illum. PR1-MIL 180725 3.6 - 18 35 mm
Illum. FFP PR-1MIL
Illum. FFP PR-1MIL
3.5 - 3.8 28.3 - 5.8 100 80 No M5C3
$2,299.99
Mark 5HD 3.6-18x44 M1C3 Illum. FFP PR-1MOA
176446 Mark 5HD 3.6-18x44 MOA 176446 3.6 - 18 35 mm
Illum. FFP PR1-MOA
Illum. FFP PR1-MOA
3.5 - 3.8 28.3 - 5.8 100 80 No M1C3
$2,299.99
Mark 5HD 3.6-18x44 M5C3 Illum. FFP TMR
173301 Mark 5HD 3.6-18x44 MIL 173301 3.6 - 18 35 mm
Illum. FFP TMR (Mk)
Illum. FFP TMR (Mk)
3.5 - 3.8 28.3 - 5.8 100 80 No M5C3
$2,299.99
Mark 5HD 7-35x56 M5C3 FFP PR2-MIL
180223 Mark 5HD 7-35x56 M5C3 FFP PR2-MIL 180223 7 - 35 35 mm
FFP PR2-MIL
FFP PR2-MIL
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$2,199.99
Mark 5HD 7-35x56 M1C3 FFP PR2-MOA
180292 Mark 5HD 7-35x56 M1C3 FFP PR2-MOA 180292 7 - 35 35 mm
FFP PR2-MOA
FFP PR2-MOA
3.6 - 3.8 20.4 - 4.2 120 60 No M1C3
$2,199.99
Mark 5HD 5-25x56 M5C3 FFP CCH
171773 Mark 5HD 5-25x56 MIL 171773 5 - 25 35 mm
FFP CCH
FFP CCH
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$2,199.99
Mark 5HD 3.6-18x44 M5C3 FFP H59
173298 Mark 5HD 3.6-18x44 MIL 173298 3.6 - 18 35 mm
FFP H59
FFP H59
3.5 - 3.8 28.3 - 5.8 100 80 No M5C3
$2,099.99
Mark 5HD 3.6-18x44 M5C3 FFP Tremor 3
173299 Mark 5HD 3.6-18x44 MIL 173299 3.6 - 18 35 mm
FFP Tremor 3
FFP Tremor 3
3.5 - 3.8 28.3 - 5.8 100 80 No M5C3
$2,099.99
Mark 5HD 5-25x56 M5C3 FFP PR1-MIL
180609 Mark 5HD 5-25x56 M5C3 FFP PR1-MIL 180609 5 - 25 35 mm
PR-1MIL
PR-1MIL
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$1,999.99
Mark 5HD 5-25x56 M5C3 FFP PR2-MIL
180222 Mark 5HD 5-25x56 M5C3 FFP PR2-MIL 180222 5 - 25 35 mm
FFP PR2-MIL
FFP PR2-MIL
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$1,999.99
Mark 5HD 5-25x56 M5C3 FFP TMR
171772 Mark 5HD 5-25x56 MIL 171772 5 - 25 35 mm
FFP TMR (Mk)
FFP TMR (Mk)
3.6 - 3.8 20.4 - 4.2 120 60 No M5C3
$1,999.99
Mark 5HD 5-25x56 M1C3 FFP PR2-MOA
180291 Mark 5HD 5-25x56 M1C3 FFP PR2-MOA 180291 5 - 25 35 mm
FFP PR2-MOA
FFP PR2-MOA
3.6 - 3.8 20.4 - 4.2 120 60 No M1C3
$1,999.99
Mark 5HD 5-25x56 M1C3 FFP PR-1MOA
176448 Mark 5HD 5-25x56 MOA 176448 5 - 25 35 mm
FFP PR1-MOA
FFP PR1-MOA
3.6 - 3.8 20.4 - 4.2 120 60 No M1C3
$1,999.99
Mark 5HD 3.6-18x44 M5C3 FFP CCH
173297 Mark 5HD 3.6-18x44 MIL 173297 3.6 - 18 35 mm
FFP CCH
FFP CCH
3.5 - 3.8 28.3 - 5.8 100 80 No M5C3
$1,999.99
Mark 5HD 3.6-18x44 M1C3 FFP PR-1MOA
176445 Mark 5HD 3.6-18x44 MOA 176445 3.6 - 18 35 mm
FFP PR1-MOA
FFP PR1-MOA
3.5 - 3.8 28.3 - 5.8 100 80 No M1C3
$1,799.99
Mark 5HD 3.6-18x44 M5C3 FFP TMR
173296 Mark 5HD 3.6-18x44 M5C3 FFP TMR 173296 3.6 - 18 35 mm
FFP TMR (Mk)
FFP TMR (Mk)
3.5 - 3.8 28.3 - 5.8 100 80 No M5C3
$1,799.99
Mark 5HD 3.6-18x44 M5C3 FFP PR1-MIL
180726 Mark 5HD 3.6-18x44 M5C3 FFP PR1-MIL 180726 3.6 - 18 35 mm
PR-1MIL
PR-1MIL
3.5 - 3.8 28.3 - 5.8 100 80 No M5C3
$1,799.99
