VX-5HD

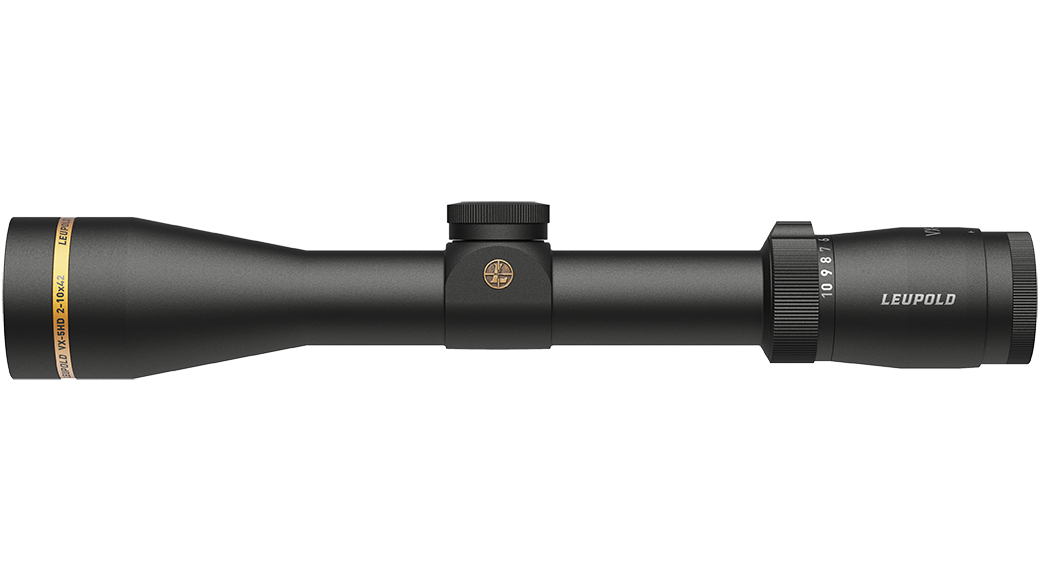

VX-5HD 2-10x42 Duplex

Part #
171386

Completely at home on the side of a mountain chasing monster goats or ringing steel at the range, the extremely versatile 2-10x magnification range gives you a super-wide field of view, while also allowing for clear, long-range shots.

matte finish
Duplex® Reticle info
$999.99

Completely at home on the side of a mountain chasing monster goats or ringing steel at the range, the extremely versatile 2-10x magnification range gives you a super-wide field of view, while also allowing for clear, long-range shots.

The VX-5HD 2-10x42mm defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. It's 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Objective No
Side Focus No
Elevation Adjustment Type Pop-Up Rezero
Zero Stop No
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Rezero Type Pop-Up
Windage Adjustment Type Pop-Up Rezero
Custom Dial System (CDS) No
Custom Dial Compatible No
BDC Dial Included No
Reticle Type Second Focal Plane
Reticle Duplex
Magnification Type Variable
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Weight (oz) 17.9
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 70
Elevation Adjustment Range (MIL) 20
Elevation Adjustment Range (cm @ 100m) 204
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 70
Windage Adjustment Range (MIL) 20
Windage Adjustment Range (cm @ 100m) 204
Windage Adjustment Per Revolution 15 MOA
Magnification Max 10
Magnification Min 2
Objective Lens Diameter (mm) 42
Linear FOV Low Mag (ft@100yds) 56.5
Linear FOV High Mag (ft@100yds) 11.5
Angular FOV Low Mag (Degrees) 10.8
Angular FOV High Mag (Degrees) 2.2
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Fixed Parallax-Free Distance (yd) 150
Dimensions
A Total Length (in) - A 12.6
B Total Mounting Space (in) - B 5.6
C Front Mounting Space (in) - C 1.7
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 3.6
G Objective Diameter (in) - G 2
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

Duplex®

Download PDF
  • Invented in 1962 by Leupold®
  • Defined by heavy posts
  • Stands out against cover in low light
  • Quick target acquisition with thin lines at the center
  • Most popular reticle in the world
  • Rear (second) focal plane
