VX-5HD

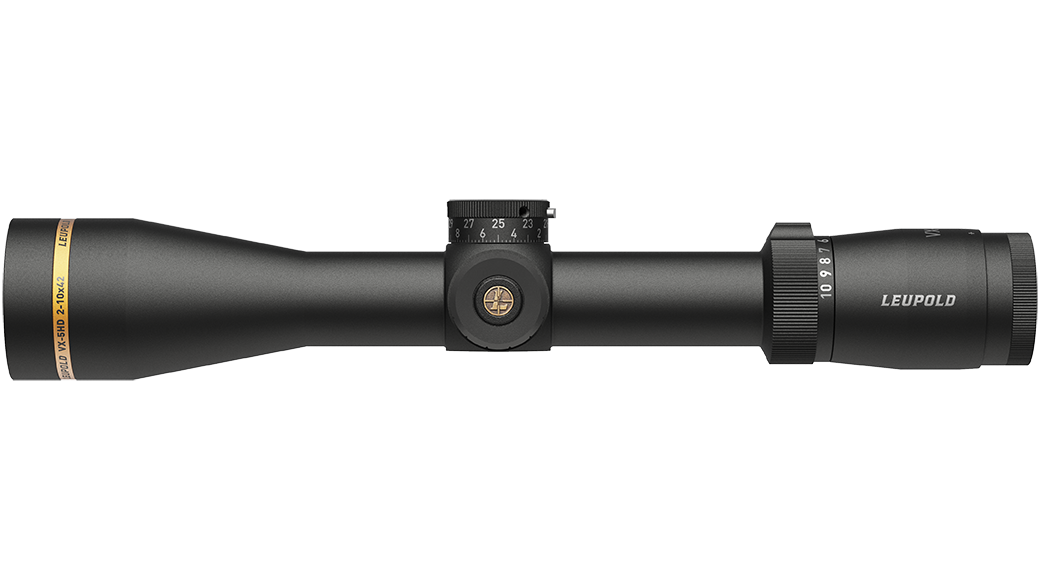

VX-5HD 2-10x42 CDS-ZL2 Illum. FireDot Duplex

Part #
171389

Completely at home on the side of a mountain chasing monster goats or ringing steel at the range, the extremely versatile 2-10x magnification gives you a super-wide field of view, while also allowing for clear, long-range shots.

FireDot® Duplex® Illum. Reticle info
$1,299.99
Find it locally

Completely at home on the side of a mountain chasing monster goats or ringing steel at the range, the extremely versatile 2-10x magnification gives you a super-wide field of view, while also allowing for clear, long-range shots. Plus, with our proprietary Firedot® illumination you get a bright, intuitive aiming point that won't get lost in low-light conditions.

The VX-5HD 2-10x42mm defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation the two-turn CDS® ZeroLock® 2 dials deliver.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. It's 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Battery Type CR2032
BDC Dial Included No
Custom Dial Compatible Yes
Daylight Bright Illumination Yes
Custom Dial System (CDS) Yes
Elevation Adjustment Type CDS-ZL2
Electronic Reticle Level No
Light Management System Professional-Grade Optical System
Locking Dial Yes
Magnification Type Variable
Nightvision Compatible Illumination No
Reticle Focal Plane Second Focal Plane
Revolution Indicator Yes
Rezero Type Set Screw
Reticle Type Illuminated
Adjustable Objective No
Side Focus No
Switch Type Push Button
Windage Adjustment Type Pop-Up Rezero
Weight (oz) 18.9
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 70
Elevation Adjustment Range (MIL) 20
Elevation Adjustment Range (cm @ 100m) 204
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 70
Windage Adjustment Range (MIL) 20
Windage Adjustment Range (cm @ 100m) 204
Windage Adjustment Per Revolution 15 MOA
Magnification Max 10
Magnification Min 2
Objective Lens Diameter (mm) 42
Linear FOV Low Mag (ft@100yds) 56.5
Linear FOV High Mag (ft@100yds) 11.5
Angular FOV Low Mag (Degrees) 10.8
Angular FOV High Mag (Degrees) 2.2
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Dimensions
A Total Length (in) - A 12.6
B Total Mounting Space (in) - B 5.6
C Front Mounting Space (in) - C 1.7
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 3.6
G Objective Diameter (in) - G 2
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

FireDot® Duplex® Illum.

Download PDF
  • Brings new technology to a classic design
  • Fiber-optic powered red dot
  • Multiple brightness settings for changing conditions
  • FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
  • Broad range of shooting applications
  • Rear (second) focal plane
