VX-5HD

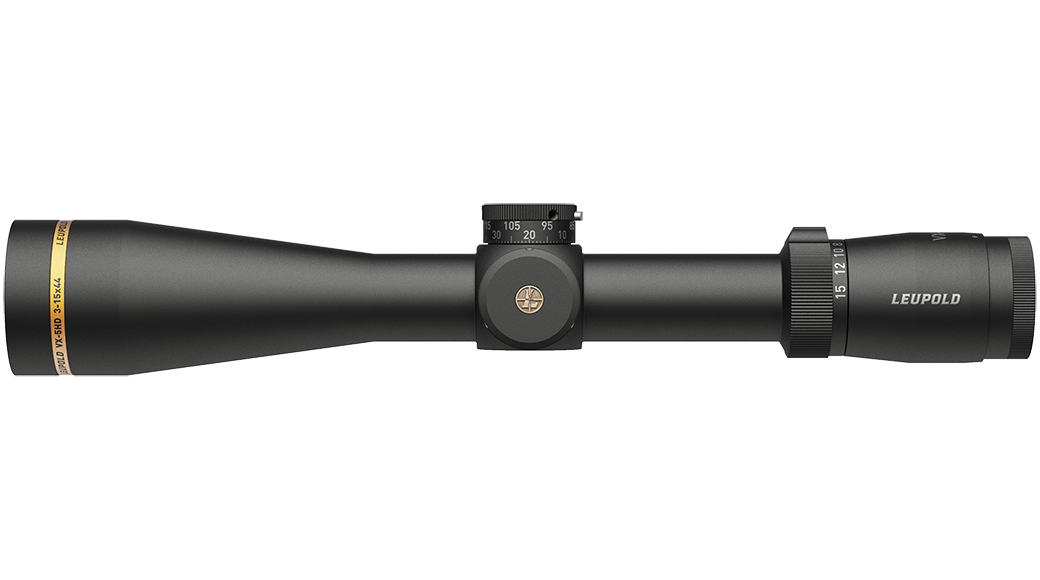

VX-5HD 3-15x56 CDS-ZL2 Side Focus Metric Illum. FireDot 4 Fine

Part #
175834

Let there be light! The VX®-5HD 3-15x56mm gives you all the flexibility of its 44mm counterpart, but with the 56mm objective bell, it maximizes as much exit pupil light as your eye can handle. From the mountains, to the open plains, and to range day, this scope has the ability to dominate them all.

FireDot® 4 Fine Illum. Reticle info
$1,599.99
Find it locally

Let there be light. The VX®-5HD 3-15x56mm gives you all the flexibility of its 44mm counterpart but with the 56mm objective bell, so it maximizes as much exit pupil light as your eye can handle. From the mountains to the open plains to range day, this scope has the ability to dominate. Plus, it comes with our proprietary Firedot® illumination to give you a bright, intuitive aiming point that won't get lost in low-light conditions.

The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Adjustable Parallax Side Focus
Battery Type CR2032
BDC Dial Included No
Custom Dial Compatible Yes
Daylight Bright Illumination Yes
Custom Dial System (CDS) Yes
Elevation Adjustment Type CDS-ZL2
Electronic Reticle Level No
Light Management System Professional-Grade Optical System
Locking Dial Yes
Magnification Type Variable
Nightvision Compatible Illumination No
Reticle Focal Plane Second Focal Plane
Revolution Indicator Yes
Reticle Illum. FireDot 4 Fine
Rezero Type Set Screw
Reticle Type Illuminated
Adjustable Objective No
Switch Type Push Button
Windage Adjustment Type Pop-Up Rezero
Weight (oz) 22.2
Elevation Adjustment Value per Click 1cm @ 100m
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 22
Elevation Adjustment Range (cm @ 100m) 218
Elevation Adjustment Per Revolution 80CM @ 100M
Elevation Dial Travel Limit 15.2MIL
Windage Adjustment Value per Click 1cm @ 100m
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 22
Windage Adjustment Range (cm @ 100m) 218
Windage Adjustment Per Revolution 80CM @ 100M
Magnification Max 15
Magnification Min 3
Objective Lens Diameter (mm) 56
Linear FOV Low Mag (ft@100yds) 38.3
Linear FOV High Mag (ft@100yds) 7.7
Angular FOV Low Mag (Degrees) 7.3
Angular FOV High Mag (Degrees) 1.5
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Dimensions
A Total Length (in) - A 13.6
B Total Mounting Space (in) - B 5.3
C Front Mounting Space (in) - C 1.3
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 4.9
G Objective Diameter (in) - G 2.5
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 30 mm

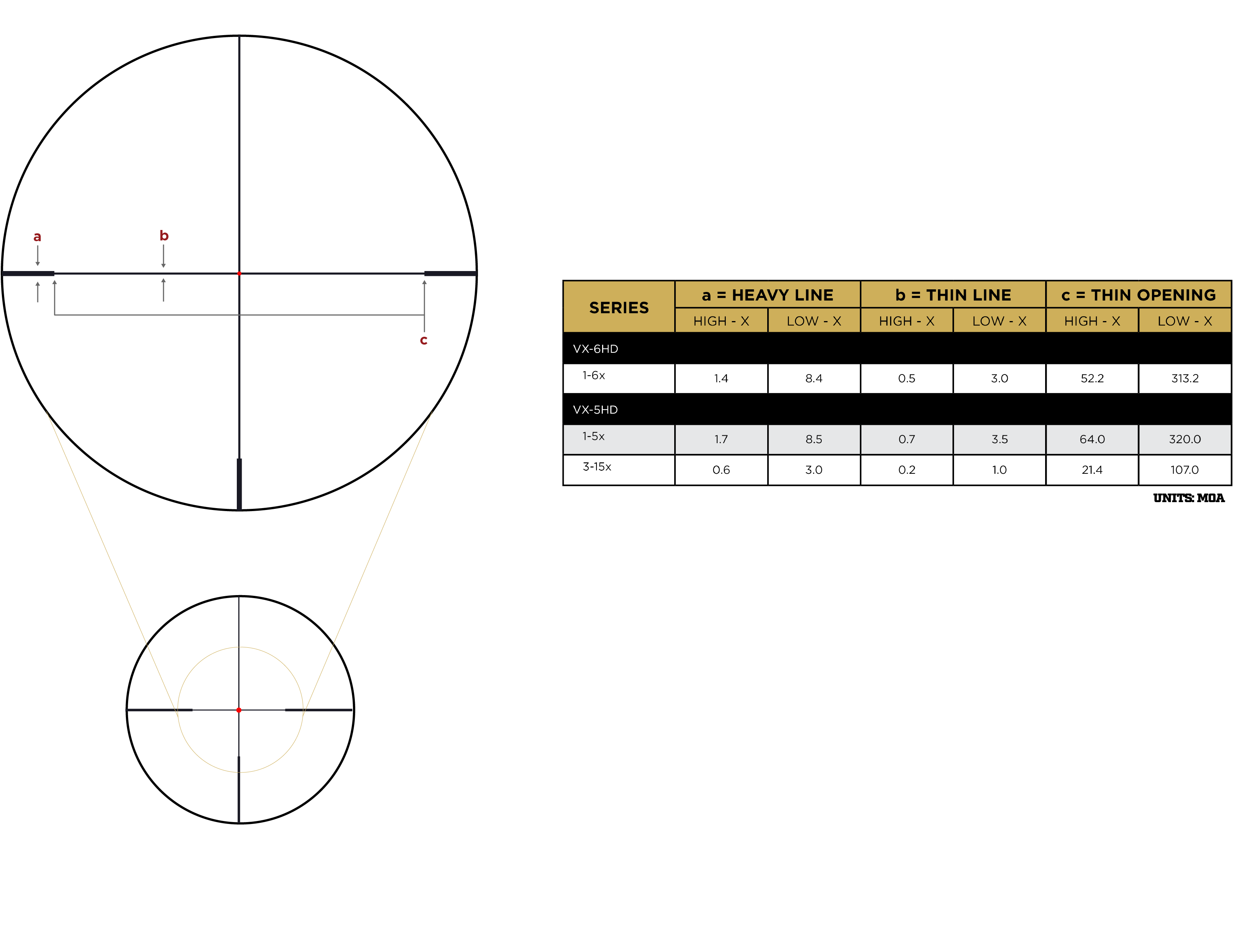

Detailed reticle info

FireDot® 4 Fine Illum.

Download PDF
  • European influenced design
  • Bold outer lines align targets quickly
  • Open upper half of the reticle for observation and spotting
  • Fiber-optic powered red dot
  • Multiple brightness settings for changing conditions
  • FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
  • Features Motion Sensor Technology
  • Rear (second) focal plane
