Mark 5HD

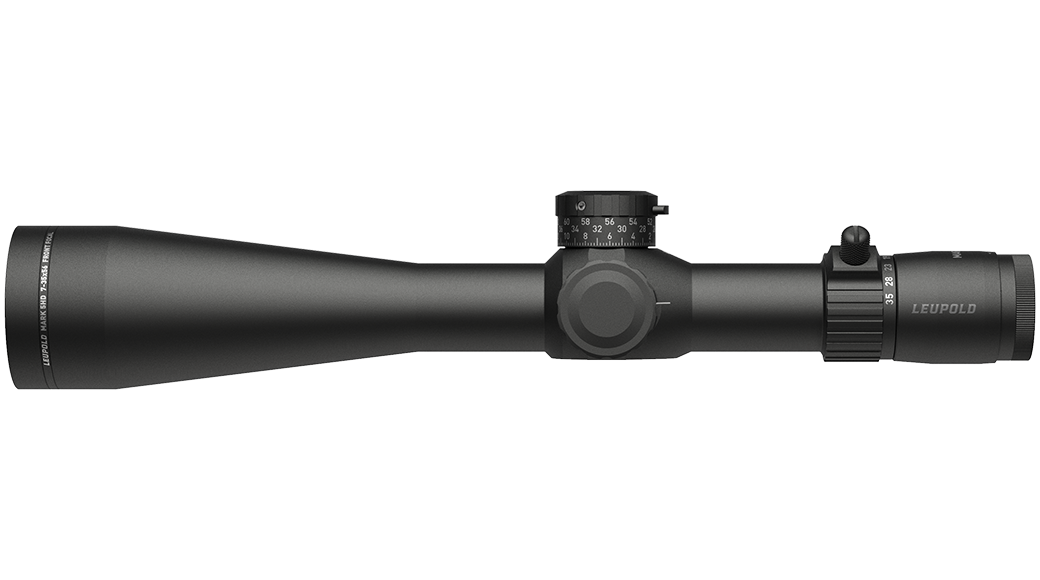

Mark 5HD 7-35x56 M1C3 FFP Impact 60 MOA

Part #
174548

The Mark 5HDâ„¢ 7-35x56mm riflescope gives you the extra magnification you need to take advantage of the distances that modern precision rifles can shoot. With the right glass, no target is out of reach. And with the same dimensions and only 3 more ounces than its 5-25x56mm counterpart, you don't have to pay a weight penalty for the extra magnification.

Impact-60 MOA Reticle info
$2,499.99
Find it locally

The Mark 5HD™ 7-35x56mm riflescope gives you the extra magnification you need to take advantage of the distances that modern precision rifles can shoot. With the right glass, no target is out of reach. And with the same dimensions and only 3 more ounces than its 5-25x56mm counterpart, you don't have to pay a weight penalty for the extra magnification.

Built around Leupold’s Professional-Grade Optical System, the Mark 5HD 7-35x offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

Get behind the Mark 5HD and you'll see the difference. From the superior edge-to-edge clarity and extreme low-light performance to the versatility of its multiple reticle options, this rugged scope will give you an advantage at the range or in the field. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long-range rifles and ammo. It's ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high-speed throw lever, so you can put accurate fire downrange faster.

Its unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

Note that SKU 174549 is a second focal plane riflescope and SKU 174548 is a first focal plane riflescope.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Adjustable Parallax Side Focus
BDC Dial Included No
Custom BDC Dial Compatible Yes
Daylight Bright Illumination No
Custom Dial System (CDS) No
Elevation Adjustment Type M1C3
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Locking Dial Yes
Magnification Type Variable
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Revolution Indicator Yes
Reticle FFP Impact-60 MOA
Rezero Type Set Screw
Reticle Type First Focal Plane
Adjustable Objective No
Windage Adjustment Type Capped
Weight (oz) 33
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 100
Elevation Adjustment Range (MIL) 29
Elevation Adjustment Range (cm @ 100m) 291
Elevation Adjustment Per Revolution 25 MOA
Elevation Dial Travel Limit 71.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 50
Windage Adjustment Range (MIL) 15
Windage Adjustment Range (cm @ 100m) 145
Windage Adjustment Per Revolution 15 MOA
Magnification Max 35
Magnification Min 7
Objective Lens Diameter (mm) 56
Linear FOV Low Mag (ft@100yds) 14.7
Linear FOV High Mag (ft@100yds) 3
Angular FOV Low Mag (Degrees) 2.8
Angular FOV High Mag (Degrees) .6
Eye Relief Low Mag (in) 3.6
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
Dimensions
A Total Length (in) - A 15.7
B Total Mounting Space (in) - B 6.2
C Front Mounting Space (in) - C 2
D Rear Mounting Space (in) - D 2
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 6.2
G Objective Diameter (in) - G 2.5
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 35 mm

Detailed reticle info

Impact-60 MOA

Download PDF
  • Patented Leupold® design
  • Uses a MOA based system
  • Spaced hash marks every 2 MOA on horizontal and vertical posts
  • Front (first) focal plane
  • Wind hold dots are 2 MOA apart
  • Every fourth line is numbered with the MOA value for quick reference
  • Vertical grid extends down to 60 MOA
  • Makes initial and follow up shots straightforward with multiple well-defined aiming points
  • 1 MOA is approximately 1 inch at 100 yards
  • Front (first) focal plane
