Mark 5HD

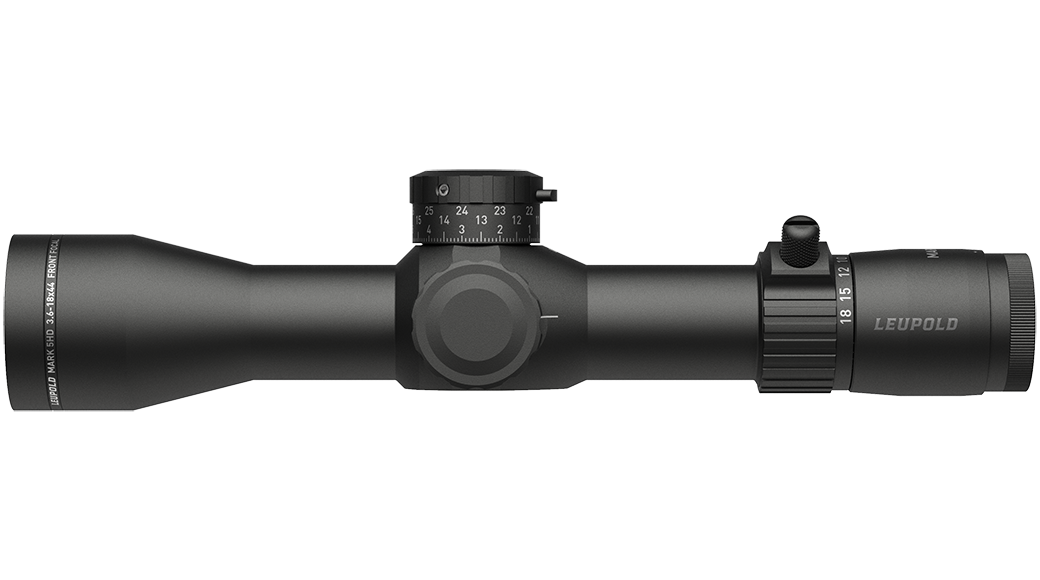

Mark 5HD 3.6-18x44 M5C3 FFP CCH

Part #
173297

Pick up a Mark 5HD™ 3.6-18x44mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 3.6-18x magnification range helps you engage close targets, while also giving you the flexibility to reach out to long distances.

matte finish
CCH Reticle info
$1,999.99

Pick up a Mark 5HD™ 3.6-18x44mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 3.6-18x magnification range helps you engage close targets, while also giving you the flexibility to reach out to long distances. With three revolutions of elevation adjustment and multiple reticle options, this scope will max out the performance of the latest long-range rifles and ammunition, guaranteed.

Built around Leupold’s Professional-Grade Optical System, the Mark 5HD offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter. Ergonomically designed with more tactile and audible click adjustments, larger numbers, and a high-speed throw lever, the Mark 5HD is built to put accurate fire downrange faster.

The unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
These low-profile dials are available on select models and provide up to 30-MILs of adjustment in 3 revolutions and 0.1 MIL clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
These low-profile dials are available on select models and provide up to 30-MILs of adjustment in 3 revolutions and 0.1 MIL clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Objective No
Elevation Adjustment Type M5C3
Locking Dial Yes
Zero Lock Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Capped
Custom Dial System (CDS) No
Custom Dial Compatible Yes
BDC Dial Included No
Reticle FFP CCH
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 26
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 100
Elevation Adjustment Range (MIL) 29
Elevation Adjustment Range (cm @ 100m) 291
Elevation Adjustment Per Revolution 10.5 MIL
Elevation Dial Travel Limit 30MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 80
Windage Adjustment Range (MIL) 23
Windage Adjustment Range (cm @ 100m) 233
Windage Adjustment Per Revolution 10 MIL
Magnification Max 18
Magnification Min 3.6
Objective Lens Diameter (mm) 44
Linear FOV Low Mag (ft@100yds) 28.3
Linear FOV High Mag (ft@100yds) 5.8
Angular FOV Low Mag (Degrees) 5.4
Angular FOV High Mag (Degrees) 1.1
Eye Relief Low Mag (in) 3.5
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
Dimensions
A Total Length (in) - A 12.1
B Total Mounting Space (in) - B 5.9
C Front Mounting Space (in) - C 1.7
D Rear Mounting Space (in) - D 2
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 2.9
G Objective Diameter (in) - G 2.1
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 35 mm
Documents

Downloadable PDFs

Detailed reticle info

  • Proprietary Leupold® design
  • MIL based grid
  • Designed with input from elite operators, shooters, and hunters
  • Multiple aiming points for extreme long-range shots
  • Patented open intersections provide quick bracketing and precise shot placement
  • Moving target holds
  • Integrated measurement tool
  • Optimized at 12-16X for use with night vison and thermal optics
  • Front (first) focal plane
