Mark 5HD

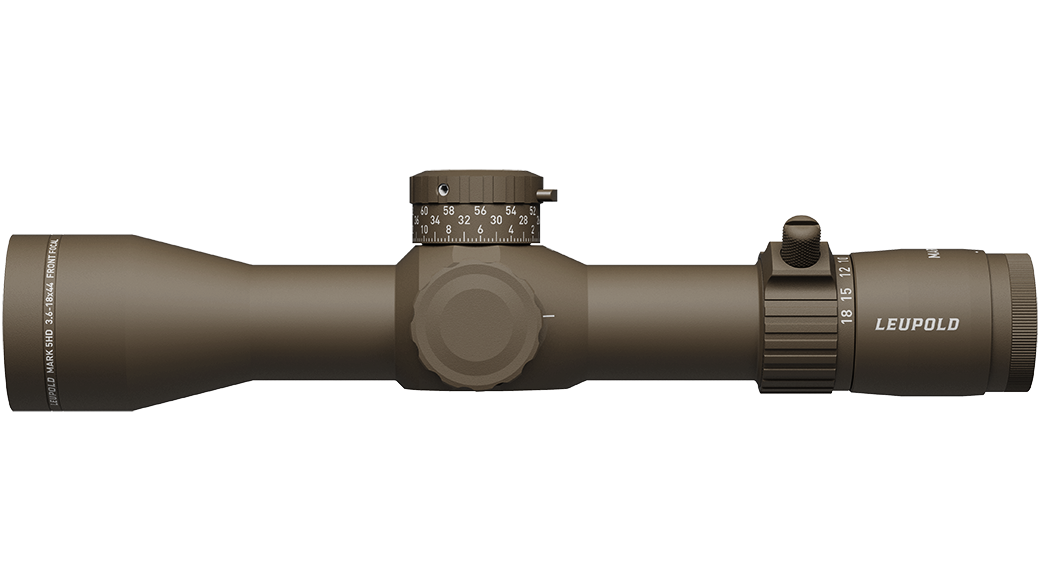

Mark 5HD 3.6-18x44 M1C3 FFP PR1-MOA - FDE

Part #
185066

Pick up a Mark 5HDâ„¢ 3.6-18x44mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 3.6-18x magnification range helps you engage close targets, while also giving you the flexibility to reach out to long distances.

PR1-MOA FFP Reticle info
$2,099.99
Find it locally

Pick up a Mark 5HDâ„¢ 3.6-18x44mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 3.6-18x magnification range helps you engage close targets, while also giving you the flexibility to reach out to long distances. With three revolutions of elevation adjustment and multiple reticle options, this scope will max out the performance of the latest long-range rifles and ammunition, guaranteed.

Built around Leupold’s Professional-Grade Optical System, the Mark 5HD offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter. Ergonomically designed with more tactile and audible click adjustments, larger numbers, and a high-speed throw lever, the Mark 5HD is built to put accurate fire downrange faster.

The unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Motion Sensor Technology (MSTâ„¢) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
BDC Dial Included No
Custom BDC Dial Compatible Yes
Daylight Bright Illumination No
Custom Dial System (CDS) No
Elevation Adjustment Type M1C3
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Locking Dial Yes
Magnification Type Variable
Nightvision Compatible Illumination No
Reticle Focal Plane First Focal Plane
Revolution Indicator Yes
Reticle FFP PR-1MOA
Rezero Type Set Screw
Reticle Type First Focal Plane
Adjustable Objective No
Windage Adjustment Type Capped
Weight (oz) 23
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 100
Elevation Adjustment Range (MIL) 29
Elevation Adjustment Range (cm @ 100m) 291
Elevation Adjustment Per Revolution 25 MOA
Elevation Dial Travel Limit 71.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 80
Windage Adjustment Range (MIL) 23
Windage Adjustment Range (cm @ 100m) 233
Windage Adjustment Per Revolution 15 MOA
Magnification Max 18
Magnification Min 3.6
Objective Lens Diameter (mm) 44
Linear FOV Low Mag (ft@100yds) 28.3
Linear FOV High Mag (ft@100yds) 5.8
Angular FOV Low Mag (Degrees) 5.4
Angular FOV High Mag (Degrees) 1.1
Eye Relief Low Mag (in) 3.5
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
Dimensions
A Total Length (in) - A 12.1
B Total Mounting Space (in) - B 5.9
C Front Mounting Space (in) - C 1.7
D Rear Mounting Space (in) - D 2
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 2.9
G Objective Diameter (in) - G 2.1
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 35 mm

Detailed reticle info

PR1-MOA FFP

Download PDF
  • MOA based grid
  • Created with input from elite shooters and hunters
  • Multiple aiming points for extreme long-range shots
  • 1 MOA increments
  • 40 MOA of measurement in each direction
  • Front (first) focal plane
