Mark 5HD

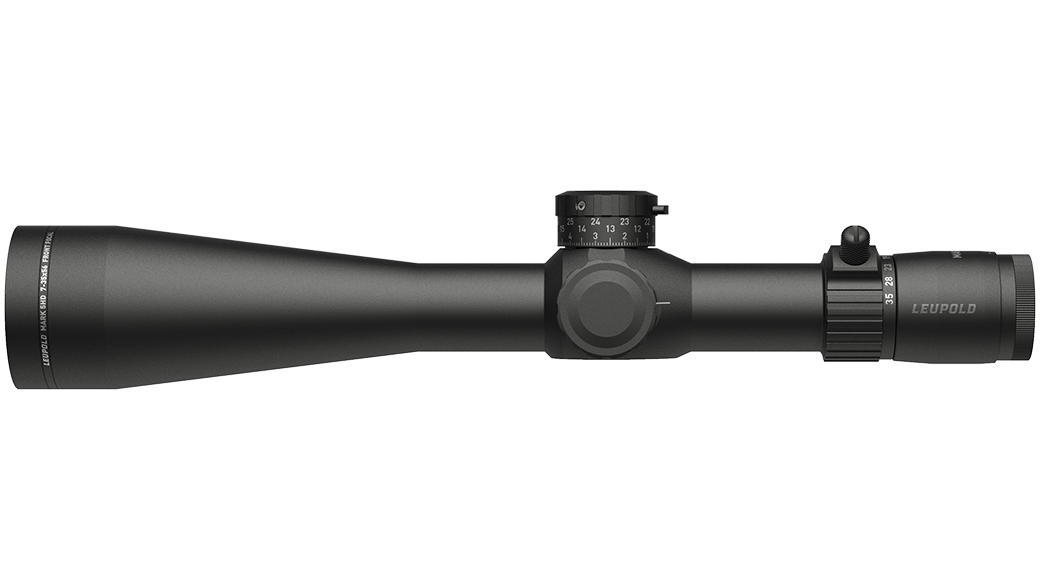

Mark 5HD 7-35x56 M5C3 FFP TMR

Part #
176594
The Mark 5HD™ 7-35x56mm riflescope gives you the extra magnification you need in order to take advantage of the distances that modern precision rifles are capable of shooting. And with the same dimensions and only 3 added ounces than its 5-25x56 counterpart, you don’t have pay a size penalty for the extra magnification.
matte finish
FFP TMR (Mk) Reticle info
$2,299.99

The Mark 5HD™ 7-35x56mm riflescope gives you the extra magnification you need in order to take advantage of the distances that modern precision rifles are capable of shooting. With the right glass, no target is out of reach. And with the same dimensions and only 3 added ounces than its 5-25x56 counterpart, you don’t have pay a size penalty for the extra magnification.

Get behind the Mark 5HD and you'll see the difference. From the superior edge-to-edge clarity and extreme low-light performance to the versatility of its multiple reticle options, this rugged scope will give you an advantage at the range or in the field. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long-range rifles and ammo. It’s ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high-speed throw lever, so you can put accurate rounds downrange faster. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Note that SKU 174549 is a second focal plane riflescope and SKU 174548 is a first focal plane riflescope.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
The Twilight Max® HD Light Management Systems offers our clearest, brightest image with three main benefits: Best Light Transmission - Maximizes the most ambient light in low-light environments for extended visibility. Best Glare Management - Reduces more glare through maximum lens coatings and minimizes image washout caused by stray light. Best Contrast & Resolution - Creates the clearest possible image using premium high-definition, edge-to-edge lens prescriptions and additional HD lens coatings.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
These low-profile dials are available on select models and provide up to 30-MILs of adjustment in 3 revolutions and 0.1 MIL clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
The Twilight Max® HD Light Management Systems offers our clearest, brightest image with three main benefits: Best Light Transmission - Maximizes the most ambient light in low-light environments for extended visibility. Best Glare Management - Reduces more glare through maximum lens coatings and minimizes image washout caused by stray light. Best Contrast & Resolution - Creates the clearest possible image using premium high-definition, edge-to-edge lens prescriptions and additional HD lens coatings.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
These low-profile dials are available on select models and provide up to 30-MILs of adjustment in 3 revolutions and 0.1 MIL clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock® feature prevents inadvertent adjustments and ensures accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
UPC 00030317021313
Finish Matte
Adjustable Objective No
Elevation Adjustment Type M5C3
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Capped
Custom Dial System (CDS) No
Custom Dial Compatible Yes
BDC Dial Included No
Reticle FFP TMR (Mk)
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Display No
Guard-ion Lens Coating No
Lightweight Aluminum Housing No
Weight (oz) 33
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 100
Elevation Adjustment Range (MIL) 29
Elevation Adjustment Range (cm @ 100m) 291
Elevation Adjustment Per Revolution 10.5 MIL
Elevation Dial Travel Limit 30MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 50
Windage Adjustment Range (MIL) 15
Windage Adjustment Range (cm @ 100m) 145
Windage Adjustment Per Revolution 10 MIL
Magnification Max 35
Magnification Min 7
Objective Lens Diameter (mm) 56
Linear FOV Low Mag (ft@100yds) 14.7
Linear FOV High Mag (ft@100yds) 3
Angular FOV Low Mag (Degrees) 2.8
Angular FOV High Mag (Degrees) .6
Eye Relief Low Mag (in) 3.6
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50

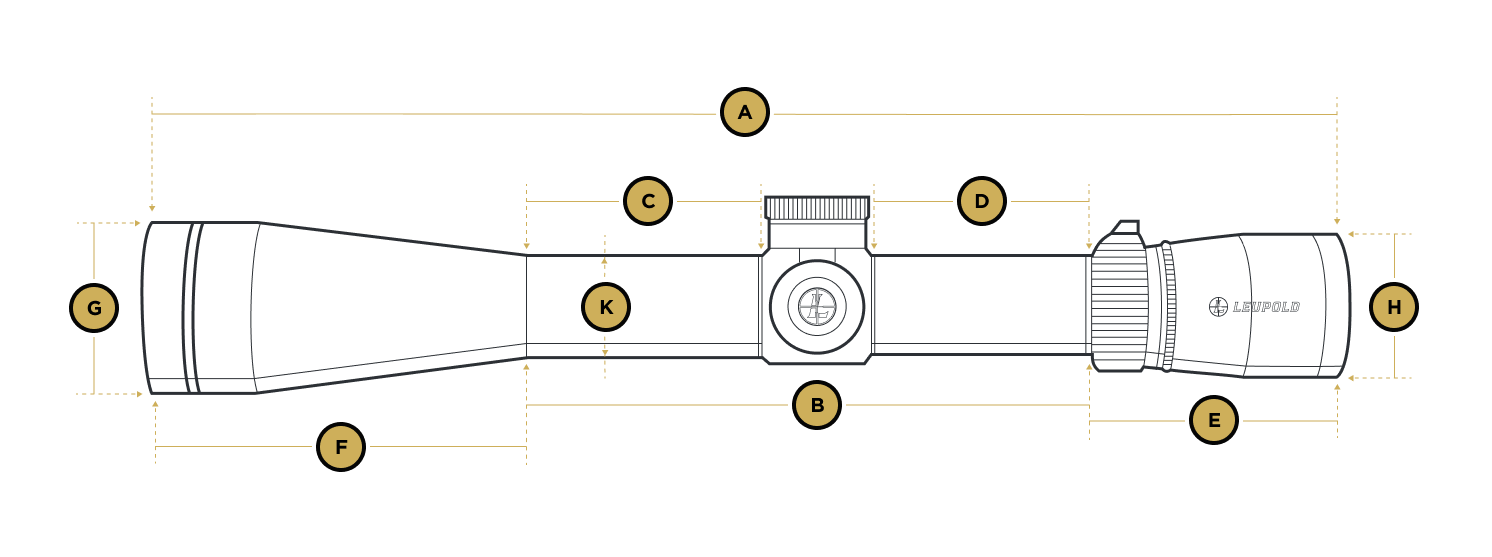

Dimensions
A Total Length (in) - A 15.7
B Total Mounting Space (in) - B 6.2
C Front Mounting Space (in) - C 2
D Rear Mounting Space (in) - D 2
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 6.2
G Objective Diameter (in) - G 2.5
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 218
Documents

Downloadable PDFs

Detailed reticle info

FFP TMR (Mk)

Download PDF
  • Expands on existing MIL Dot reticle design
  • Uses hash marks instead of dots for increased ranging and holdover precision
  • Provides aiming points for both wind and bullet drop compensation
  • 1 MIL is approximately 3.6 inches at 100 yards
  • Hash marks are spaced 0.5 MIL apart, transitioning to 0.2 MIL spacing on the outer edges
  • Not caliber specific
  • Front (first) focal plane
  • MIL based systems are the current military standard
