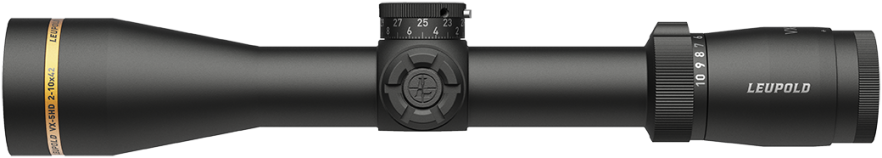

VX-5HD 2-10x42mm CDS-ZL2

VX-5HD 2-10x42mm CDS-ZL2
VX-5HD 2-10x42mm CDS-ZL2

Product Information

This scope is just at home on the side of a mountain chasing monster goats as it is at the range. The extremely versatile 2-10 magnification gives you a super-wide field of view, while also allowing for clear, long-range shots.



The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. With the Twilight Max HD Light Management System, it’s purpose built for the toughest lighting conditions. Rugged and reliable, the VX-5HD is ready for your next adventure.

Features

  • Fast-Focus Eyepiece
  • CDS Custom Dial System
  • Punisher Tested
  • Rear Focal Plane (RFP)
  • Twilight Max HD Light Management System
  • Ultra-Lightweight Design
  • Waterproof & Fogproof
  • FireDot Illumination
  • Motion Sensor Technology (MST)
  • 30mm Maintube
  • Guard-Ion Lens Coating
  • CDS-ZL2
  • Push Button Illumination
  • 5:1 Zoom Ratio

Brings the reticle into focus quickly with Fast-Focus eyepiece

Spot it, range it, dial and shoot.

Our CDS™ (Custom Dial System) elevation dials allow you to quickly dial your elevation adjustment to different ranges with a custom dial matched to your specific ballistic information. Out of the box CDS scopes come with a MOA scale dial to get you on target. Then you can order your one free custom laser marked dial from the Leupold Custom shop with your exact ballistics and conditions.

Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.

Rear focal plane reticles remain fine and minimally cover the target at high power.  Subtensions change with zoom, allowing tuning of ballistic reticles.

See more in less light with Twilight Max HD Light
Management System

- Adds up to 30 extra minutes of shooting light
- Eliminates 90% more glare-producing stray light than
competitors
- Premium high definition edge-to-edge lens clarity

Disperses recoil energy for unrivaled durability and performance with ultra-lightweight construction

Absolute waterproof and fogproof integrity means it's ready to perform in the field, in all conditions.

Creates a visible aiming point in low-light conditions with available FireDot illumination

Extends battery life with Motion Sensor Technology (MST)

Automatically deactivates illumination after 5 minutes of inactivity, yet reactivates instantly as soon as any movement is detected.

The 30mm maintube offers incredible strength and increased range of windage and elevation adjustment.

Sheds dirt and water for clear, crisp images with the Guard-ion lens coating

Eliminates accidental dial movement with the push-button ZeroLock system while providing two revolutions of adjustment

Easy and simple reticle brightness control with our one-button design

Versatile magnification range offers a wide field of view at low power and precise target identification at high power.

VX-5HD 2-10x42mm CDS-ZL2 Options

  • $1,039.99

    Zero Lock 2 turn 1/4 MOA Dial System

    Duplex Reticle

    Matte Finish

    Parallax Adjustment: None

    SKU: 171387

    No longer for sale

  • $1,234.99

    2 Turn Zero Lock 1/4 MOA Dial System

    FireDot Duplex (Illuminated) Reticle

    Matte Finish

    Parallax Adjustment: None

    SKU: 171389

More Product Info & Specs

Weight (oz) 16.4
Linear FOV (ft/100 yd) - Low 57.5
Linear FOV (ft/100 yd) - High 11.7
Linear FOV (m/100 m) - Low 19.1
Length (in) 12.5
Linear FOV (m/100 m) - High 3.6
Length (cm) 31.7
Eye Relief (in) - Low 3.8
Eye Relief (in) - High 3.8
Eye Relief (mm) - Low 96.5
Eye Relief (mm) - High 96.5
Objective Diameter (in) 1.7
Weight (g) 465
Elevation Adjustment Range (MOA) 120
Windage Adjustment Range (MOA) 120
Length - A (in) 12.5
Mounting Space - B (cm) 14.2
Illustration - C 1.7
Illustration - D 2.5
Eyepiece Length - E 3.3
Objective Length - F 3.6
Objective Diameter - G 2.0
Eyepiece Diameter - H 1.8
Tube Diameter- k (mm) 30
Mounting Space - B (in) 5.6
