VX-5HD

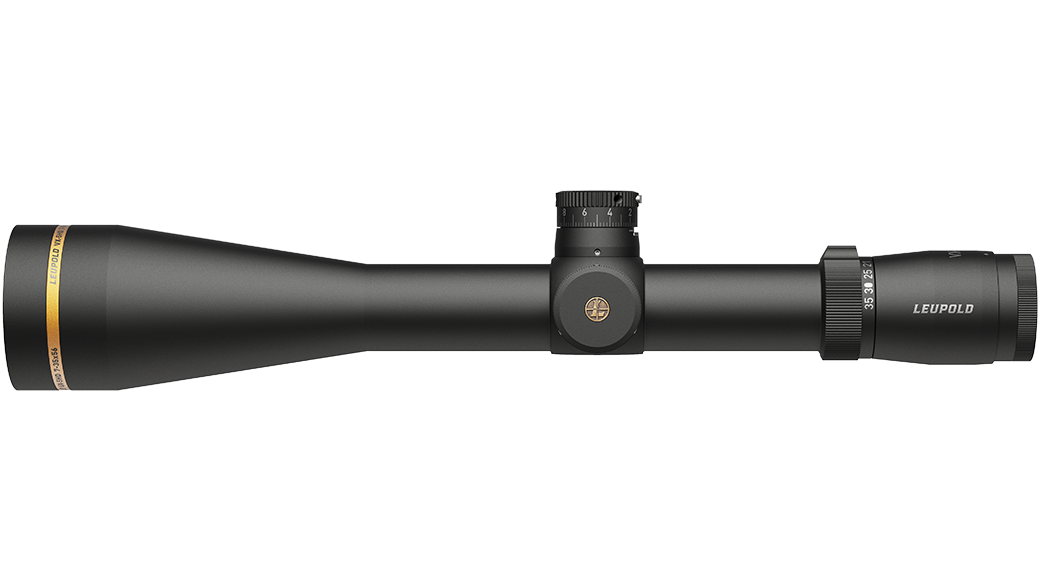

VX-5HD 7-35x56 CDS-TZL3 Side Focus TMOA

Part #
172754

Built for shooters and hunters alike, the 7-35x56mm brings extended capabilities into the VX®-5HD family. Its CDS-TZL3 elevation dial takes target-style adjustments to a new level with a push-button locking feature and an easy-to-read revolution indicator.

matte finish
TMOA® Reticle info
$1,899.99

Built for shooters and hunters alike, the 7-35x56mm brings extreme long-range capabilities into the VX®-5HD family. Its CDS-TZL3 elevation dial takes target-style adjustments to a new level with a push-button locking feature and an easy-to-read revolution indicator. Combined with our intuitive TMOA reticle, this scope will help you push your long-range shooting to new limits.

The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. It's 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Objective No
Elevation Adjustment Type CDS-TZL3
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Pop-Up Rezero
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Second Focal Plane
Reticle TMOA
Magnification Type Variable
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Weight (oz) 25.7
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 50
Elevation Adjustment Range (MIL) 15
Elevation Adjustment Range (cm @ 100m) 145
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 60MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 50
Windage Adjustment Range (MIL) 15
Windage Adjustment Range (cm @ 100m) 145
Windage Adjustment Per Revolution 15 MOA
Magnification Max 35
Magnification Min 7
Objective Lens Diameter (mm) 56
Linear FOV Low Mag (ft@100yds) 16.3
Linear FOV High Mag (ft@100yds) 3.1
Angular FOV Low Mag (Degrees) 3.1
Angular FOV High Mag (Degrees) .6
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50

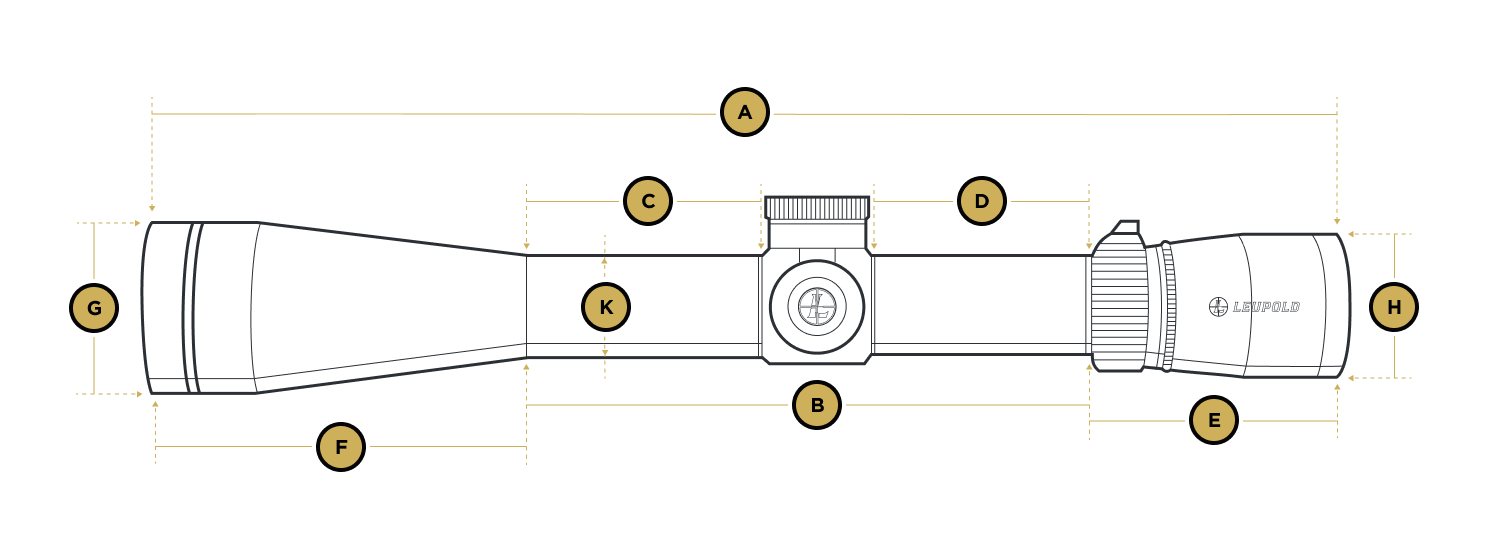

Dimensions
A Total Length (in) - A 15.6
B Total Mounting Space (in) - B 6.9
C Front Mounting Space (in) - C 2.8
D Rear Mounting Space (in) - D 2.7
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 5.4
G Objective Diameter (in) - G 2.4
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 34 mm

Detailed reticle info

TMOA®

Download PDF
  • Based off a TMR® reticle, but in a MOA configuration
  • Aides in compensating for crosswinds and provides vertical holdovers for bullet drop compensation
  • Hash marks are in 1 MOA increments
  • Marks extend to 10 MOA on each side
  • 1 MOA is approximately 1 inch at 100 yards
  • Not caliber specific
  • Rear (second) focal plane
