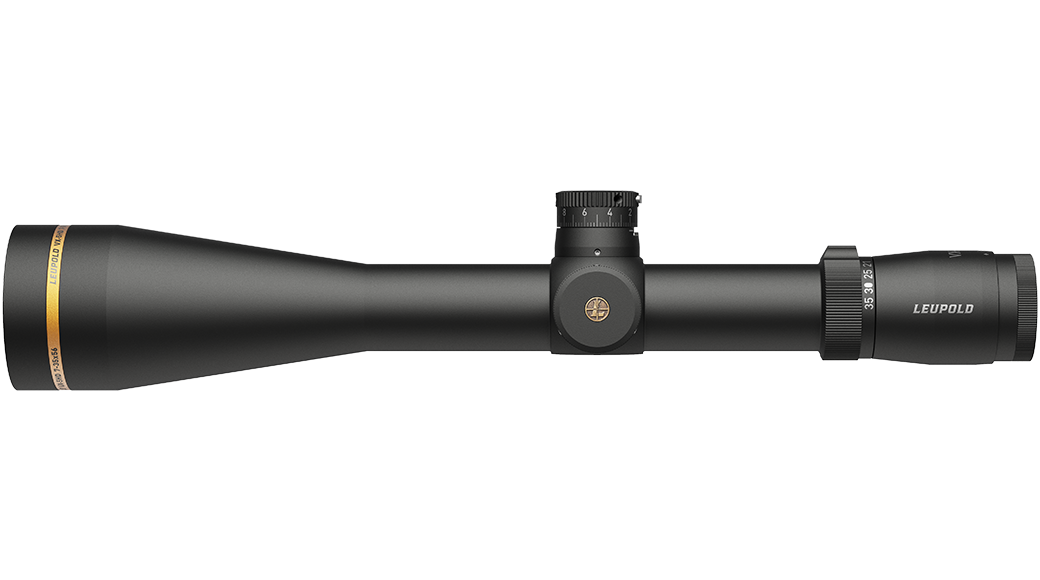

VX-5HD 7-35x56 CDS-TZL3 Side Focus Impact-14 MOA
Built for shooters and hunters alike, the 7-35x56mm brings extended capabilities into the VX®-5HD family. Its CDS-TZL3 elevation dial takes target-style adjustments to a new level with a push-button locking feature and an easy-to-read revolution indicator.
Built for shooters and hunters alike, the 7-35x56mm brings extreme long-range capabilities into the VX®-5HD family. Its CDS-TZL3 elevation dial takes target-style adjustments to a new level with a push-button locking feature and an easy-to-read revolution indicator. Combined with our intuitive Impact-14 reticle, this scope will help you push your long-range shooting to new limits.
The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.
As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. It's 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
Specifications
| Adjustable Parallax | Side Focus |
|---|---|
| BDC Dial Included | No |
| Custom Dial Compatible | Yes |
| Daylight Bright Illumination | No |
| Elevation Adjustment Type | CDS-TZL3 |
| Electronic Reticle Level | No |
| Illuminated | No |
| Light Management System | Professional-Grade Optical System |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | Yes |
| Reticle | Impact-14 MOA |
| Rezero Type | Set Screw |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Windage Adjustment Type | Pop-Up Rezero |
| Weight (oz) | 25.7 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 50 |
| Elevation Adjustment Range (MIL) | 15 |
| Elevation Adjustment Range (cm @ 100m) | 145 |
| Elevation Adjustment Per Revolution | 20 MOA |
| Elevation Dial Travel Limit | 60MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 50 |
| Windage Adjustment Range (MIL) | 15 |
| Windage Adjustment Range (cm @ 100m) | 145 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 35 |
| Magnification Min | 7 |
| Objective Lens Diameter (mm) | 56 |
| Linear FOV Low Mag (ft@100yds) | 16.3 |
| Linear FOV High Mag (ft@100yds) | 3.1 |
| Angular FOV Low Mag (Degrees) | 3.1 |
| Angular FOV High Mag (Degrees) | .6 |
| Eye Relief Low Mag (in) | 3.7 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 50 |
Dimensions
| A Total Length (in) - A | 15.6 |
|---|---|
| B Total Mounting Space (in) - B | 6.9 |
| C Front Mounting Space (in) - C | 2.8 |
| D Rear Mounting Space (in) - D | 2.7 |
| E Eyepiece Length (in) - E | 3.3 |
| F Objective Length (in) - F | 5.4 |
| G Objective Diameter (in) - G | 2.4 |
| H Eyepiece Diameter (in) - H | 1.8 |
| K Maintube Diameter (mm/in) - K | 34 mm |
Detailed reticle info
Impact-14 MOA
Download PDF- Patented Leupold® design
- Incorporates the MOA measurement system, with a grid style pattern
- Features 1 MOA hash marks on horizontal and vertical posts
- Wind hold dots are spaced 2 MOA apart
- Every fourth line is numbered with the MOA value for quick reference points
- Vertical grid extends down to 14 MOA
- Makes initial and follow up shots straightforward with multiple well-defined aiming points
- 1 MOA is approximately 1 inch at 100 yards
- Intended to be used on highest magnification in rear (second) focal plane scope
