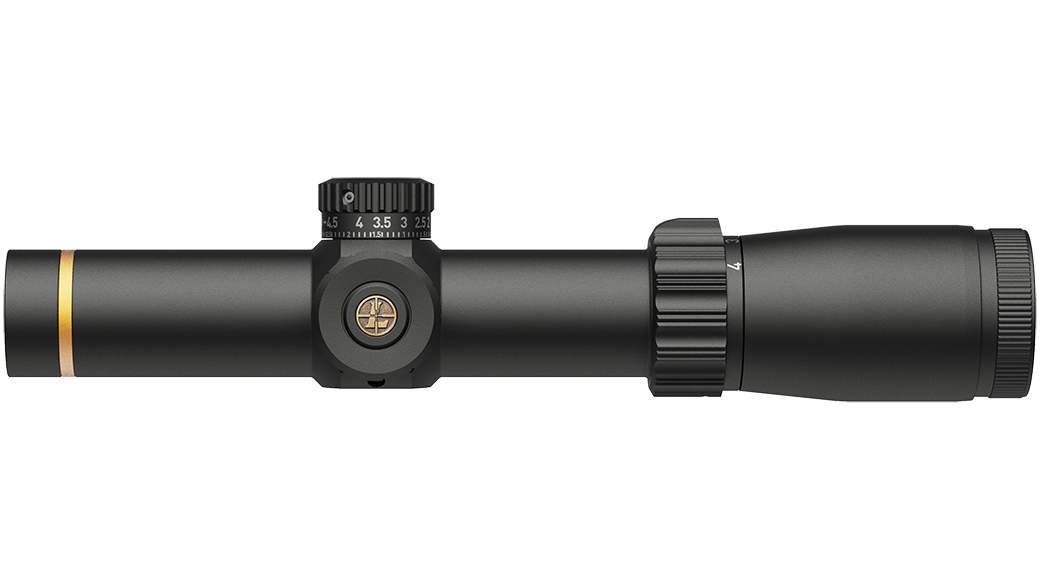

VX-Freedom AR 1.5-4X20 Illum. FireDot MIL-Ring

Part #
177226

The AR specific model of our VX®-Freedom® delivers the features you need to get the most out of your .223/.556 on the range or in competition. The 1.5-4 model provides a wide field of view, while also allowing for precise, mid-range shots.

Illum. FireDot® MIL-Ring Reticle info
$499.99
This product has been discontinued and is no longer available for purchase
Search products in the same Close Quarters Tactical

The AR specific model of our VX®-Freedom® delivers the features you need to get the most out of your .223/.556 on the range or in competition. The 1.5-4 model provides a wide field of view, while also allowing for precise, mid-range shots. Plus, our proprietary Firedot® illumination gives you a bright, intuitive aiming point that won't get lost in low-light conditions.

Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
UPC 00030317022471
Finish Matte
Adjustable Objective No
Side Focus No
Elevation Adjustment Type AR Finger Click
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type Finger Click
Custom Dial System (CDS) No
Custom Dial Compatible Yes
BDC Dial Included Yes
Reticle Type Illuminated
Reticle Illum. FireDot MIL-Ring
Battery Type CR2032
Switch Type Push Button
Nightvision Compatible Illumination No
Daylight Bright Illumination Yes
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 9.6
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 125
Elevation Adjustment Range (MIL) 36
Elevation Adjustment Range (cm @ 100m) 364
Elevation Adjustment Per Revolution 6 MIL
Elevation Dial Travel Limit 5.6MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 125
Windage Adjustment Range (MIL) 36
Windage Adjustment Range (cm @ 100m) 364
Windage Adjustment Per Revolution 15 MOA
Magnification Max 4
Magnification Min 1.5
Objective Lens Diameter (mm) 20
Linear FOV Low Mag (ft@100yds) 74.2
Linear FOV High Mag (ft@100yds) 29.4
Angular FOV Low Mag (Degrees) 14.1
Angular FOV High Mag (Degrees) 5.6
Eye Relief Low Mag (in) 4.2
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Dimensions
A Total Length (in) - A 9.4
B Total Mounting Space (in) - B 5.4
C Front Mounting Space (in) - C 2.2
D Rear Mounting Space (in) - D 1.9
E Eyepiece Length (in) - E 3.5
F Objective Length (in) - F .5
G Objective Diameter (in) - G 1.4
H Eyepiece Diameter (in) - H 1.63
K Maintube Diameter (mm/in) - K 30 mm
Documents

Downloadable PDFs

Detailed reticle info

Illum. FireDot® MIL-Ring

Download PDF
  • Designed for modern AR-style firearms
  • Circle provides a quick aiming point and bracketing capabilities
  • 5 and 10mph wind holds
  • 0.5 MIL spaced hash marks below the center
  • FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
  • Features Motion Sensor Technology
  • Rear (second) focal plane
