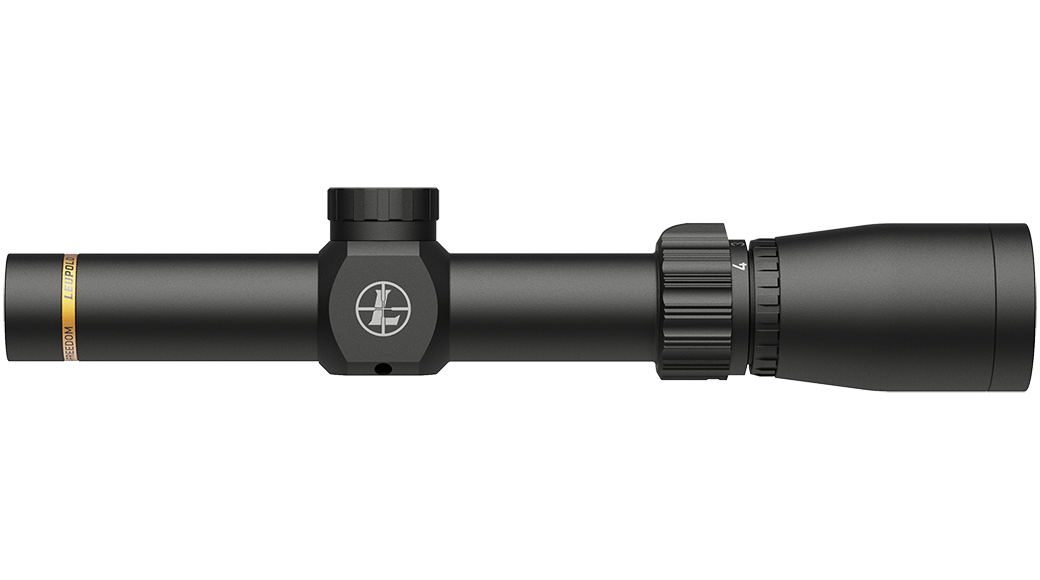

VX-Freedom 1.5-4x20 Duplex
Part #
174176
The VX-Freedom delivers the legendary Leupold® performance and dependability hunters and shooters have demanded for decades. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, mid-range shots.
$199.99
The VX-Freedom delivers the legendary Leupold® performance and dependability hunters and shooters have demanded for decades. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, close to mid-range shots.
Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
| BDC Dial Included | No |
|---|---|
| Custom Dial Compatible | No |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | Finger Click |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Illuminated | No |
| Locking Dial | No |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Revolution Indicator | No |
| Reticle | Duplex |
| Rezero Type | Resettable Index Ring |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Side Focus | No |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 9.6 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 125 |
| Elevation Adjustment Range (MIL) | 36 |
| Elevation Adjustment Range (cm @ 100m) | 364 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | Total Scope Travel |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 125 |
| Windage Adjustment Range (MIL) | 36 |
| Windage Adjustment Range (cm @ 100m) | 364 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 4 |
| Magnification Min | 1.5 |
| Objective Lens Diameter (mm) | 20 |
| Linear FOV Low Mag (ft@100yds) | 74.2 |
| Linear FOV High Mag (ft@100yds) | 29.4 |
| Angular FOV Low Mag (Degrees) | 14.1 |
| Angular FOV High Mag (Degrees) | 5.6 |
| Eye Relief Low Mag (in) | 4.2 |
| Eye Relief High Mag (in) | 3.7 |
| Fixed Parallax-Free Distance (yd) | 150 |
Dimensions
| A Total Length (in) - A | 9.35 |
|---|---|
| B Total Mounting Space (in) - B | 5.4 |
| C Front Mounting Space (in) - C | 2.17 |
| D Rear Mounting Space (in) - D | 1.85 |
| E Eyepiece Length (in) - E | 3.5 |
| F Objective Length (in) - F | .45 |
| G Objective Diameter (in) - G | 1 |
| H Eyepiece Diameter (in) - H | 1.56 |
| K Maintube Diameter (mm/in) - K | 1 Inch |
Detailed reticle info
Duplex®
Download PDF- Invented in 1962 by Leupold®
- Defined by heavy posts
- Stands out against cover in low light
- Quick target acquisition with thin lines at the center
- Most popular reticle in the world
- Rear (second) focal plane
