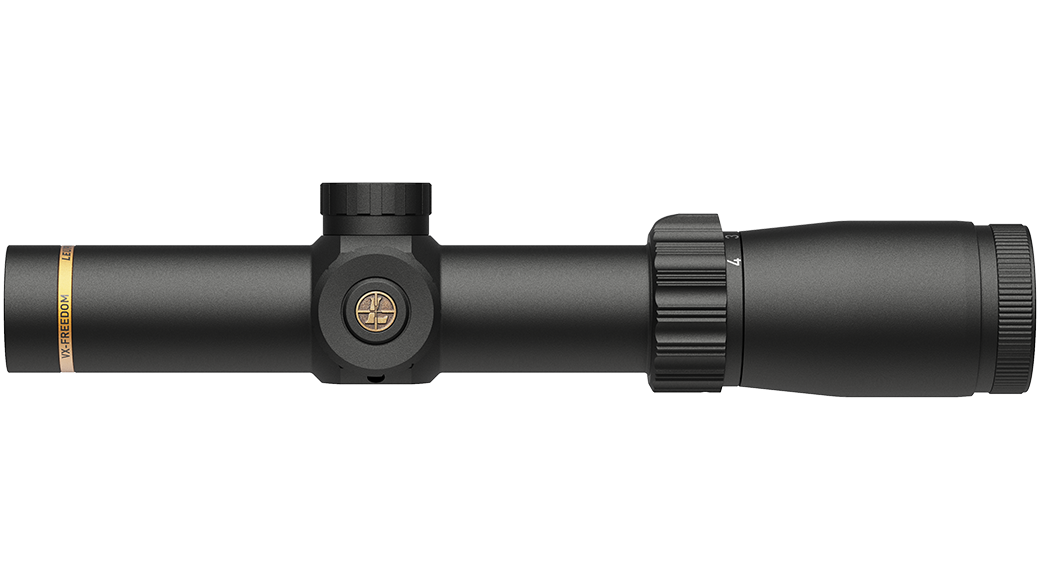

VX-Freedom 1.5-4X20 Illum. FireDot MOA-Ring
Part #
177225
The VX®-Freedom® 1.5-4X20mm model provides a wide field of view, while also allowing for precise close to mid-range shots. Plus, our proprietary Firedot® illumination gives you a bright, intuitive aiming point that won't get lost in low-light conditions.
$399.99
The VX®-Freedom® 1.5-4X20mm model provides a wide field of view, while also allowing for precise close to mid-range shots. Plus, our proprietary Firedot® illumination gives you a bright, intuitive aiming point that won't get lost in low-light conditions.
Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
This scope comes with an illuminated reticle, which creates a visible aiming point for greater accuracy in low-light conditions.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
This scope comes with an illuminated reticle, which creates a visible aiming point for greater accuracy in low-light conditions.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
| Battery Type | CR2032 |
|---|---|
| BDC Dial Included | No |
| Custom Dial System (CDS) | No |
| Custom BDC Dial Compatible | No |
| Daylight Bright Illumination | Yes |
| Elevation Adjustment Type | Finger Click |
| Electronic Reticle Level | No |
| Locking Dial | No |
| Magnification Type | Variable |
| Nightvision Compatible Illumination | No |
| Revolution Indicator | No |
| Reticle | Illum. FireDot MOA-Ring |
| Rezero Type | Resettable Index Ring |
| Reticle Type | Illuminated |
| Adjustable Objective | No |
| Precision Side Focus | No |
| Switch Type | Push Button |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 12.25 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 125 |
| Elevation Adjustment Range (MIL) | 36 |
| Elevation Adjustment Range (cm @ 100m) | 364 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | Total Scope Travel |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 125 |
| Windage Adjustment Range (MIL) | 36 |
| Windage Adjustment Range (cm @ 100m) | 364 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 4 |
| Magnification Min | 1.5 |
| Objective Lens Diameter (mm) | 20 |
| Linear FOV Low Mag (ft@100yds) | 74.2 |
| Linear FOV High Mag (ft@100yds) | 29.4 |
| Angular FOV Low Mag (Degrees) | 14.1 |
| Angular FOV High Mag (Degrees) | 5.6 |
| Eye Relief Low Mag (in) | 4.2 |
| Eye Relief High Mag (in) | 3.7 |
| Fixed Parallax-Free Distance (yd) | 150 |
| Battery Life (hr), Low Intensity | 1600 |
| Battery Life (hr), Medium Intensity | 1000 |
| Battery Life (hr), High Intensity | 300 |
| Number of Illum Settings | 8 |
Dimensions
| Motion Sensor Technology (MST) | Yes |
|---|---|
| A Total Length (in) - A | 9.5 |
| B Total Mounting Space (in) - B | 5.2 |
| C Front Mounting Space (in) - C | 2.1 |
| D Rear Mounting Space (in) - D | 1.9 |
| E Eyepiece Length (in) - E | 3.6 |
| F Objective Length (in) - F | .6 |
| G Objective Diameter (in) - G | 1.2 |
| H Eyepiece Diameter (in) - H | 1.63 |
| K Maintube Diameter (mm/in) - K | 30 mm |
Detailed reticle info
FireDot® MOA-Ring Illum.
Download PDF- Designed for modern AR-style firearms
- Circle provides a quick aiming point and bracketing capabilities
- 5 and 10mph wind holds
- 0.5 MOA spaced hash marks below the center
- FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
- Features Motion Sensor Technology
- Rear (second) focal plane
