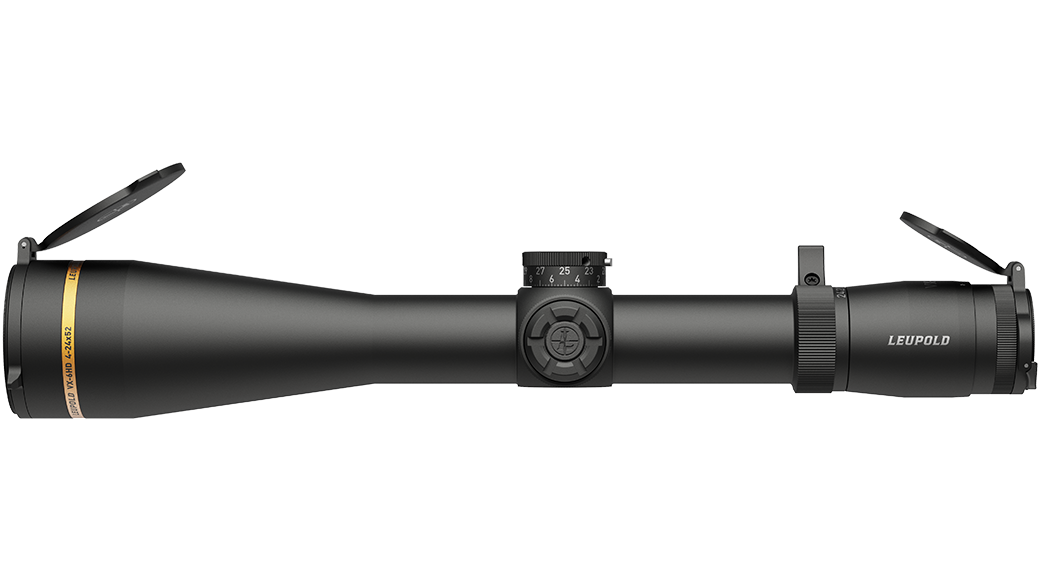

VX-6HD 4-24x52 CDS-ZL2 Side Focus Illum. TMOA
Whether you're in the wilderness or at the range, you never know what distance an opportunity might present itself. This is where the VX®-6HD 4-24x52mm comes in. Having the ability to walk around on 4x, knowing you can go all the way up to 24x magnification at a moment's notice gives you the flexibility to dominate almost any hunting or shooting situation.
Whether you're in the wilderness or at the range, you never know what distance an opportunity might present itself. This is where the VX®-6HD 4-24x52mm comes in. Having the ability to walk around on 4x, knowing you can go all the way up to 24x magnification at a moment's notice gives you the flexibility to dominate almost any hunting or shooting situation. And its 34mm maintube provides enough travel to take advantage of that extra power.
The 4-24 is built around Leupold’s Professional-Grade Optical System, which offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. The wide zoom range combined with an in-scope electronic reticle level, CDS-ZL2 ZeroLock® elevation dial, and removable throw lever, make your VX-6HD the most versatile Leupold® riflescope ever made.
The VX-6HD goes where other scopes can't. Its unique combination of features, durability, and professional-grade HD optical performance guarantees that it can handle any challenge you throw at it. The VX-6HD is 100% waterproof and fogproof, and built it for anything, including your next epic adventure. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
Specifications
Adjustable Parallax | Side Focus |
---|---|
Battery Type | CR2032 |
BDC Dial Included | No |
Custom BDC Dial Compatible | Yes |
Daylight Bright Illumination | No |
Custom Dial System (CDS) | Yes |
Elevation Adjustment Type | CDS-ZL2 |
Light Management System | Professional-Grade Optical System |
Locking Dial | Yes |
Magnification Type | Variable |
Nightvision Compatible Illumination | No |
Reticle Focal Plane | Second Focal Plane |
Revolution Indicator | Yes |
Reticle | Illum. TMOA |
Rezero Type | Set Screw |
Reticle Type | Illuminated |
Adjustable Objective | No |
Side Focus | Yes |
Switch Type | Push Button |
Windage Adjustment Type | Zero-Lock WIndage |
Weight (oz) | 25.4 |
Elevation Adjustment Value per Click | 1/4MOA |
Elevation Adjustment Range (MOA) | 75 |
Elevation Adjustment Range (MIL) | 22 |
Elevation Adjustment Range (cm @ 100m) | 218 |
Elevation Adjustment Per Revolution | 20 MOA |
Elevation Dial Travel Limit | 38MOA |
Windage Adjustment Value per Click | 1/4MOA |
Windage Adjustment Range (MOA) | 75 |
Windage Adjustment Range (MIL) | 22 |
Windage Adjustment Range (cm @ 100m) | 218 |
Windage Adjustment Per Revolution | 20 MOA |
Magnification Max | 24 |
Magnification Min | 4 |
Objective Lens Diameter (mm) | 52 |
Linear FOV Low Mag (ft@100yds) | 28.1 |
Linear FOV High Mag (ft@100yds) | 4.8 |
Angular FOV Low Mag (Degrees) | 5.4 |
Angular FOV High Mag (Degrees) | .9 |
Eye Relief Low Mag (in) | 3.7 |
Eye Relief High Mag (in) | 3.8 |
Minimum Parallax-Free Distance (yd) | 50 |
Battery Life (hr), Low Intensity | 1600 |
Battery Life (hr), Medium Intensity | 1000 |
Battery Life (hr), High Intensity | 300 |
Number of Illum Settings | 8 |
Dimensions
A Total Length (in) - A | 14.7 |
---|---|
B Total Mounting Space (in) - B | 6.2 |
C Front Mounting Space (in) - C | 2.1 |
D Rear Mounting Space (in) - D | 2.6 |
E Eyepiece Length (in) - E | 3.3 |
F Objective Length (in) - F | 5.1 |
G Objective Diameter (in) - G | 2.4 |
H Eyepiece Diameter (in) - H | 1.8 |
K Maintube Diameter (mm/in) - K | 34 mm |
Detailed reticle info
TMOA Illum.
Download PDF- Builds on the Wind-Plex® reticle
- Aids in compensating for crosswinds and provides vertical holdovers for bullet drop compensation
- Hash marks are in 1 MOA increments
- Marks extend to 10 MOA on each side
- Red illumination for contrast in low-light situations
- 1 MOA is approximately 1 inch at 100 yards
- Not caliber specific
- Second (rear) focal plane
