VX-6HD

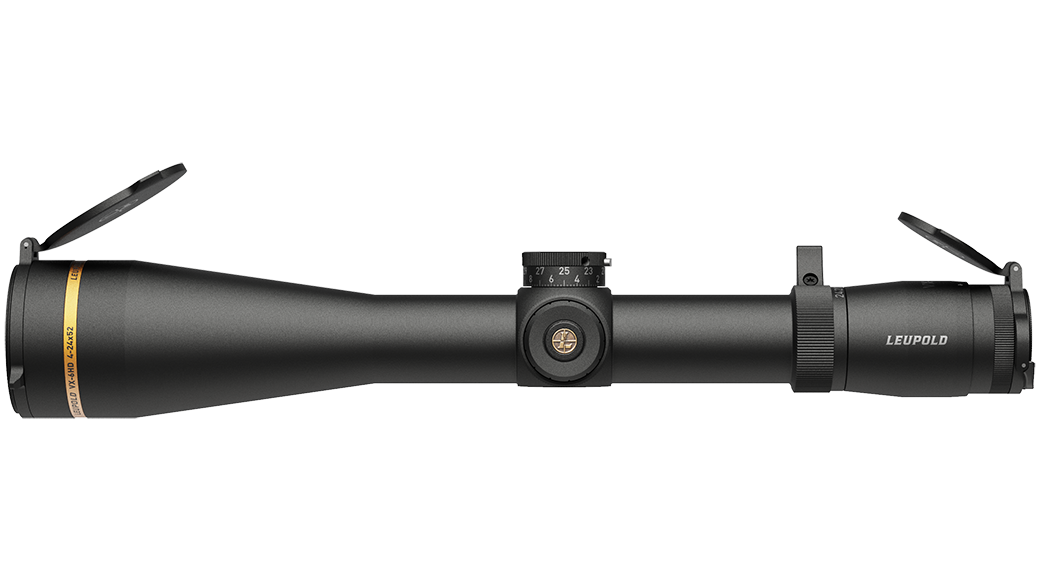

VX-6HD 4-24x52 CDS-ZL2 Side Focus Illum. TMOA

Part #
171579

Whether you're in the wilderness or at the range, you never know what distance an opportunity might present itself. This is where the VX®-6HD 4-24x52mm comes in. Having the ability to walk around on 4x, knowing you can go all the way up to 24x magnification at a moment's notice gives you the flexibility to dominate almost any hunting or shooting situation.

matte finish
Illum. TMOA Reticle info
$1,999.99

Whether you're in the wilderness or at the range, you never know what distance an opportunity might present itself. This is where the VX®-6HD 4-24x52mm comes in. Having the ability to walk around on 4x, knowing you can go all the way up to 24x magnification at a moment's notice gives you the flexibility to dominate almost any hunting or shooting situation. And its 34mm maintube provides enough travel to take advantage of that extra power.

The 4-24 is built around Leupold’s Professional-Grade Optical System, which offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. The wide zoom range combined with an in-scope electronic reticle level, CDS-ZL2 ZeroLock® elevation dial, and removable throw lever, make your VX-6HD the most versatile Leupold® riflescope ever made.

The VX-6HD goes where other scopes can't. Its unique combination of features, durability, and professional-grade HD optical performance guarantees that it can handle any challenge you throw at it. The VX-6HD is 100% waterproof and fogproof, and built it for anything, including your next epic adventure. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
The Electronic Reticle will flash when the scope isn't level, promoting more accurate long-range shots. It can also simplify the mounting process.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
The Electronic Reticle will flash when the scope isn't level, promoting more accurate long-range shots. It can also simplify the mounting process.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Parallax Side Focus
Adjustable Objective No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS-ZL2
Zero Stop Yes
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Zero-Lock WIndage
Custom Dial System (CDS) Yes
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Illuminated
Reticle Illum. TMOA
Light Management System Professional-Grade Optical System
Magnification Type Variable
Battery Type CR2032
Switch Type Push Button
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Weight (oz) 25.4
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 22
Elevation Adjustment Range (cm @ 100m) 218
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 22
Windage Adjustment Range (cm @ 100m) 218
Windage Adjustment Per Revolution 20 MOA
Magnification Max 24
Magnification Min 4
Objective Lens Diameter (mm) 52
Linear FOV Low Mag (ft@100yds) 28.1
Linear FOV High Mag (ft@100yds) 4.8
Angular FOV Low Mag (Degrees) 5.4
Angular FOV High Mag (Degrees) .9
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Dimensions
A Total Length (in) - A 14.7
B Total Mounting Space (in) - B 6.2
C Front Mounting Space (in) - C 2.1
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 5.1
G Objective Diameter (in) - G 2.4
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 34 mm

Detailed reticle info

Illum. TMOA

Download PDF
  • Builds on the Wind-Plex® reticle
  • Aids in compensating for crosswinds and provides vertical holdovers for bullet drop compensation
  • Hash marks are in 1 MOA increments
  • Marks extend to 10 MOA on each side
  • Red illumination for contrast in low-light situations
  • 1 MOA is approximately 1 inch at 100 yards
  • Not caliber specific
  • Second (rear) focal plane
