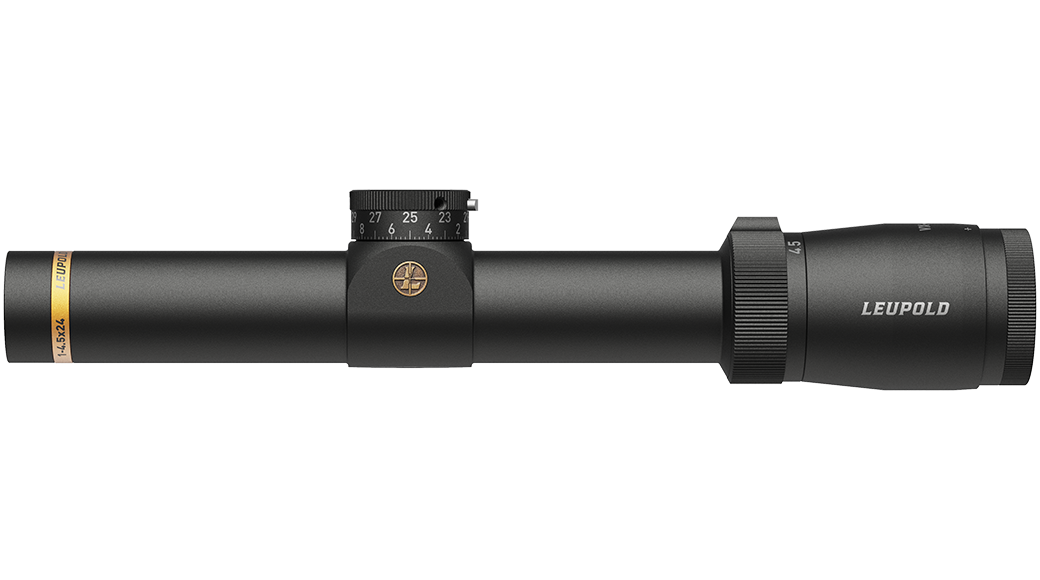

VX-4.5HD Service Rifle 1-4.5x24mm CDS-ZL2 HPR-1

Part #
177351

See better. Shoot better. Score better. The VX®-4.5HD Service Rifle scope gives you the edge you need to win more matches. It delivers bright, edge-to-edge image sharpness at 4.5x magnification–the highest magnification allowed for NRA Service Rifle competitions.

Illum. FireDot® Bull-Ring Reticle info
$1,399.99

See better. Shoot better. Score better. The VX®-4.5HD Service Rifle scope gives you the edge you need to win more matches. It delivers a sharp image at 4.5x magnification–the highest magnification allowed for NRA Service Rifle competitions–and a flat, true-to-life image at low power, making off-hand shooting quick and easy.

Built around Leupold's Professional-Grade Optical System, the VX-4.5HD delivers unmatched light transmission designed to outperform in the most challenging lighting conditions. Its industry-leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional shooter in the field. Combine that with our new HPR-1® reticle, and you'll be able to quickly center on the bullseye, every time.

The VX-4.5 Service Rifle delivers all the features professional shooters need to dominate the competition. And like all Leupold riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.

Features
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
UPC 00030317022716
Finish Matte
Adjustable Objective No
Side Focus No
Elevation Adjustment Type CDS-ZL2
Locking Dial Yes
Zero Lock Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Zero-Lock WIndage
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Illuminated
Reticle Illum. FireDot Bull-Ring
Battery Type CR2032
Switch Type Push Button
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination Yes
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 13.4
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 170
Elevation Adjustment Range (MIL) 49
Elevation Adjustment Range (cm @ 100m) 495
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 170
Windage Adjustment Range (MIL) 49
Windage Adjustment Range (cm @ 100m) 495
Windage Adjustment Per Revolution 15 MOA
Magnification Max 4.5
Magnification Min 1
Objective Lens Diameter (mm) 24
Linear FOV Low Mag (ft@100yds) 123.2
Linear FOV High Mag (ft@100yds) 26.2
Angular FOV Low Mag (Degrees) 23.2
Angular FOV High Mag (Degrees) 5
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Objective Length (in) 0
Dimensions
A Total Length (in) - A 10.8
B Total Mounting Space (in) - B 6.8
C Front Mounting Space (in) - C 2.9
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
G Objective Diameter (in) - G 1.2
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

Illum. FireDot® Bull-Ring

  • The Bull-Ring circles standard NRA Service Rifle targets and features a hollow center ring that adjusts with magnification
  • Fiber-optic powered red dot
  • Multiple brightness settings for changing conditions
  • FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
  • Features Motion Sensor Technology
  • Rear (second) focal plane
