Competition

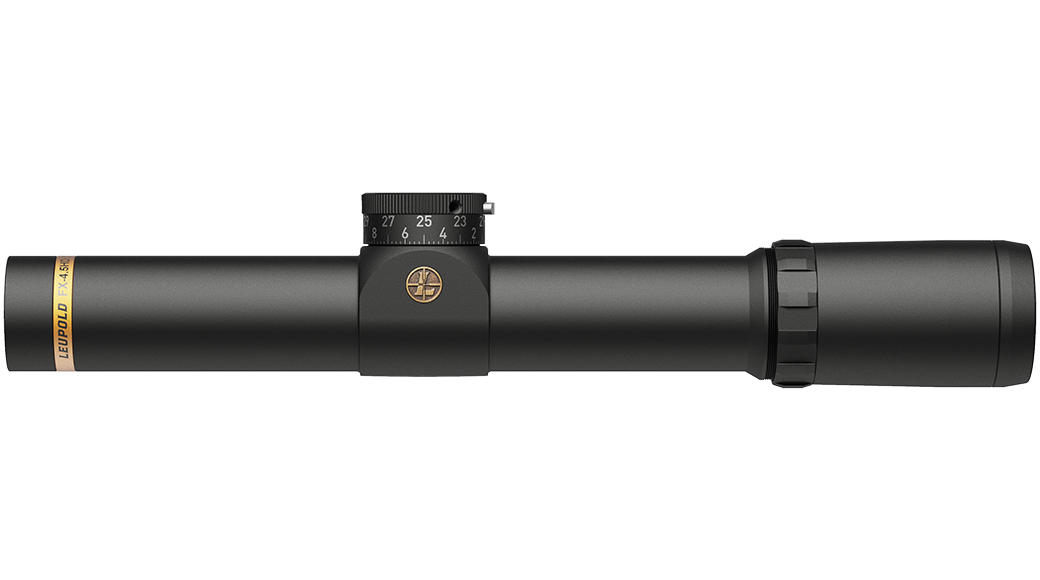

FX-4.5HD Service Rifle 4.5x24mm CDS-ZL2 HPR-1

Part #
176284

Performance is paramount when tenths of an inch can mean the difference between 1st and 10th place. That's where Leupold's FX™-4.5HD Service Rifle scope comes in. The fixed 4.5x magnification ensures you'll always be at the right magnification, and the CDS-ZL2 elevation dial makes quick adjustments simple and precise.

matte finish
HPR-1 Reticle info
$1,499.99

Service Rifle Competitions have gained popularity over the last few years. Along with the growth of the sport, the level of gear has increased as well. Performance is paramount when tenths of an inch can mean the difference between 1st and 10th place. That's where Leupold's FX™-4.5HD Service Rifle scope comes in.

Built around Leupold's Professional-Grade Optical System, the FX-4.5HD delivers unmatched light transmission designed to outperform in the most challenging lighting conditions. Its industry-leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional shooter in the field. Its fixed 4.5x magnification ensures you'll always be at the right magnification, and the CDS-ZL2 elevation dial makes quick adjustments simple and precise.

Leupold's new HPR-1® reticle makes finding and bracketing targets simple, and its fine center aiming-point gives you the ability to put rounds where your competition can't. The FX-4.5HD was made to get you on the podium. It's 100% waterproof and fogproof, and like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

Features
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Objective No
Side Focus No
Elevation Adjustment Type CDS-ZL2
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Zero-Lock WIndage
Custom Dial Compatible Yes
BDC Dial Included No
Reticle HPR-1
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 13.25
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 170
Elevation Adjustment Range (MIL) 49
Elevation Adjustment Range (cm @ 100m) 495
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 170
Windage Adjustment Range (MIL) 49
Windage Adjustment Range (cm @ 100m) 495
Windage Adjustment Per Revolution 15 MOA
Magnification Min 4.5
Objective Lens Diameter (mm) 24
Linear FOV Low Mag (ft@100yds) 24.6
Angular FOV Low Mag (Degrees) 4.7
Eye Relief Low Mag (in) 3.15
Fixed Parallax-Free Distance (yd) 150
Objective Length (in) 0
Dimensions
A Total Length (in) - A 10.8
B Total Mounting Space (in) - B 6.8
C Front Mounting Space (in) - C 2.9
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
G Objective Diameter (in) - G 1.2
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

HPR-1

Download PDF
  • 0.5 MOA dot provides definitive aiming point
  • Specifically designed for CMP competition
  • 8 MOA inner diameter of circle provides easy bracketing of targets
  • 11 MOA outer diameter of circle
  • Rapid target engagement
  • 1.5 MOA width lines with hollow center
  • Tapered posts to draw eye to center
  • Rear (second) focal plane
