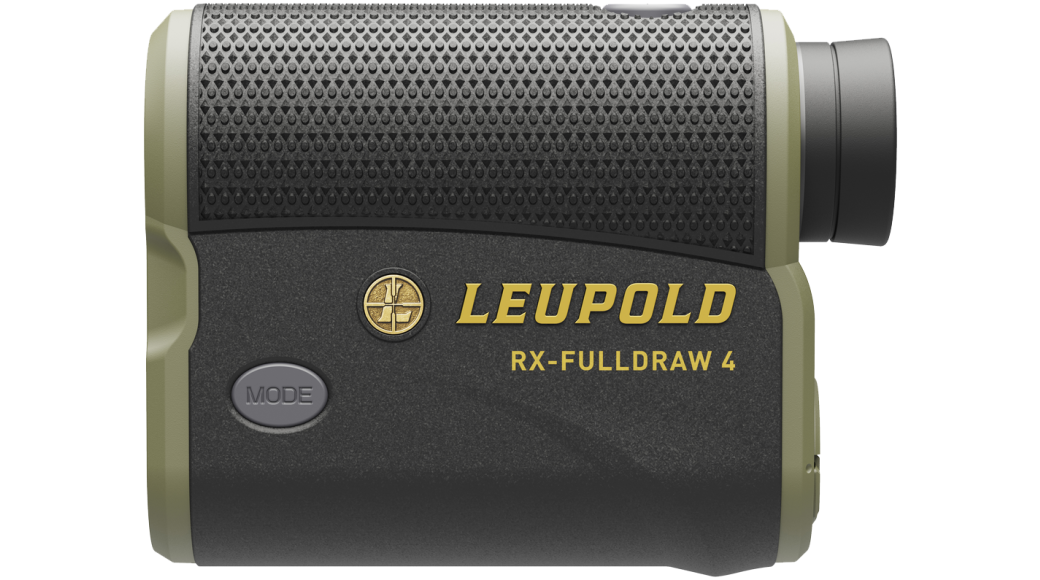

RX-Fulldraw 4

Part #
178763

Built with the bowhunter in mind, the new RX®-FullDraw 4 gives you the advantage you need to tag out with your bow. And with 1/2-yard, angle-compensated accuracy, Archer's Advantage software, and Flightpath technology, there's no second-guessing your distances or your shot selection.

$499.99
This product has been discontinued and is no longer available for purchase
Search products in the same Shop
Find it locally

Built with the bowhunter in mind, the new RX®-FullDraw 4 gives you the advantage you need to tag out with your bow. And with 1/2-yard, angle-compensated accuracy, there's no second-guessing your distances. The RX®-FullDraw 4 rangefinder features our unique Archer's Advantage software, which uses your arrow weight, arrow velocity, and peep height to calculate extremely accurate ballistic solutions out to 175 yards. The RX-FullDraw 4 is Leupold’s first ever Flightpathâ„¢ ranging device that takes the guesswork out of achieving the perfect shot, every time. This extremely fast rangefinder ranges out to 1,200 yards, so even if you're too far to take the shot, you'll know how much distance you need to close in order to seal the deal.

Features
Archer's Advantage bow ballistics uses your arrow weight, arrow velocity, and peep height to calculate more accurate ranges for steep angle and long distance shots.
OLED displays use bright red characters and have adjustable brightness setting. This display technology also enables best in class light transmission for use in low light conditions.
Flightpathâ„¢ technology uses your bow's ballistics to display the highest point of your arrow's flight, so you can take tighter shots with more confidence.
Line of Sight (LOS) calculates the distance to a target in a straight line, regardless of any incline or decline.
Offers a variety of reticles to choose from to fit any use or preference.
Archer's Advantage bow ballistics uses your arrow weight, arrow velocity, and peep height to calculate more accurate ranges for steep angle and long distance shots.
OLED displays use bright red characters and have adjustable brightness setting. This display technology also enables best in class light transmission for use in low light conditions.
Flightpathâ„¢ technology uses your bow's ballistics to display the highest point of your arrow's flight, so you can take tighter shots with more confidence.
Line of Sight (LOS) calculates the distance to a target in a straight line, regardless of any incline or decline.
Offers a variety of reticles to choose from to fit any use or preference.
Specifications
More Information
Battery Type CR2
Display Color OLED (Red Display)
Last Target No
Magnification 6
Prism Lock No
Trophy Scale No
Tripod Compatible (1/4-20) No
True Ballistic Range - Wind (TBR-W) No
True Ballistic Range (TBR) Mode No
Horizontal Distance (TRIG-H) Yes
Bow Mode No
True Golf Range (TGR) No
Length (in) 3.8
Width (in) 1.4
Height (in) 3
Weight (oz) 7.5
Objective Diameter (mm) 22
Linear FOV (ft@1000 yd) 315
Angular FOV (Degrees) 6
Eye Relief (mm) 17
Min Diopter (dpt) -3
Max Diopter (dpt) 3
Light Transmission (%) 85
Battery Life (Actuations) >3000
Accuracy to 125 (yd) .5
Accuracy to 1000 (yd) 2
Accuracy above 1000 (yd) % .5
Max Range - Deer (yd) 900
Max Range - Trees (yd) 1100
Max Range - Reflective (yd) 1200
Max Range - Golf Flag (yd) 0
Min Range (yd) 6
Laser Classification IEC 3R
