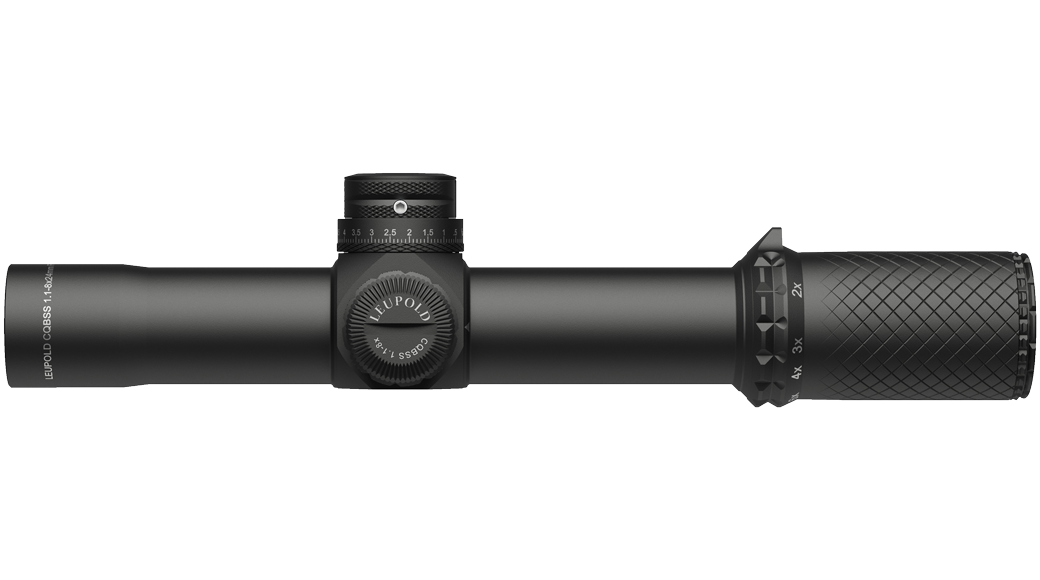

Mark 8 CQBSS 1.1-8x24 M5B1 Illum. FFP Mil Dot

Part #
114921

From close quarters to long-range engagements, the Mark 8® CQBSS® 1.1-8x24mm incorporates everything military, law enforcement, and professional shooters need into one extremely versatile riflescope. The illuminated first focal plane reticles provide accurate range estimation throughout the entire zoom range, while its eight brightness settings ensure optimal visibility of the reticle in all lighting conditions.

Government issue only. Minimum order quantities apply. Please contact governmentsales@leupold.com for details.

Mil Dot (CQBSS) Illum. FFP Reticle info
$2,999.99
This product has been discontinued and is no longer available for purchase
Search products in the same Close Quarters Tactical
Find it locally

From close quarters to long-range engagements, the Mark 8® CQBSS® 1.1-8x24mm incorporates everything military, law enforcement, and professional shooters need into one extremely versatile riflescope. The illuminated first focal plane reticles provide accurate range estimation throughout the entire zoom range, while its eight brightness settings ensure optimal visibility of the reticle in all lighting conditions. And an off position between each numbered brightness setting ensures long battery life.

The 34mm maintube and twin bias spring erector system provide over 40 MIL of total windage and elevation adjustment. Auto-Locking Pinch & Turn 1/10th MIL click adjustments make precise corrections quick and easy, while eliminating accidental movement. To top it all off, we built it around Leupold's Professional-Grade Optical System, which delivers the light transmission, glare reduction, and resolution that professional shooters demand in the field.

Mark 8 riflescopes are at the tip of the spear, boasting first focal plane reticles, an 8:1 zoom range, maximum resolution and field of view, and the image brightness and contrast necessary to take on the worst conditions. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
An extremely versatile 8:1 zoom ratio gives you 8 times more magnification at high power than at low power (model magnification ranges may available in powers of 8x: 1-8, 2-18, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The M5B1 adjustment is available on select models and features up to 10 MILs of elevation adjustment and 0.1 MIL clicks. A pinch-and-turn lock mechanism and zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
An extremely versatile 8:1 zoom ratio gives you 8 times more magnification at high power than at low power (model magnification ranges may available in powers of 8x: 1-8, 2-18, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The M5B1 adjustment is available on select models and features up to 10 MILs of elevation adjustment and 0.1 MIL clicks. A pinch-and-turn lock mechanism and zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Battery Type CR2032
BDC Dial Included Yes
Custom BDC Dial Compatible No
Daylight Bright Illumination No
Custom Dial System (CDS) No
Elevation Adjustment Type M5B1
Electronic Reticle Level No
Guard-ion Lens Coating No
Locking Dial Yes
Magnification Type Variable
Motion Sensor Technology (MST) No
Revolution Indicator No
Reticle Illum. FFP Mil Dot (CQBSS)
Rezero Type Set Screw
Reticle Type Illuminated
Adjustable Objective No
Side Focus No
Switch Type Dial
Windage Adjustment Type M5B1
Weight (oz) 23.5
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 150
Elevation Adjustment Range (MIL) 44
Elevation Adjustment Range (cm @ 100m) 436
Elevation Adjustment Per Revolution 10 MIL
Elevation Dial Travel Limit 10MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 150
Windage Adjustment Range (MIL) 44
Windage Adjustment Range (cm @ 100m) 436
Windage Adjustment Per Revolution 10 MIL
Magnification Max 8
Magnification Min 1.1
Objective Lens Diameter (mm) 24
Linear FOV Low Mag (ft@100yds) 92
Linear FOV High Mag (ft@100yds) 17.7
Angular FOV Low Mag (Degrees) 17.4
Angular FOV High Mag (Degrees) 3.4
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.3
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 500
Battery Life (hr), Medium Intensity 72
Battery Life (hr), High Intensity 24
Number of Illum Settings 8
Dimensions
A Total Length (in) - A 12
B Total Mounting Space (in) - B 6.6
C Front Mounting Space (in) - C 2
D Rear Mounting Space (in) - D 3.5
E Eyepiece Length (in) - E 3.6
F Objective Length (in) - F 1.6
G Objective Diameter (in) - G 1.4
H Eyepiece Diameter (in) - H 1.7
K Maintube Diameter (mm/in) - K 34 mm

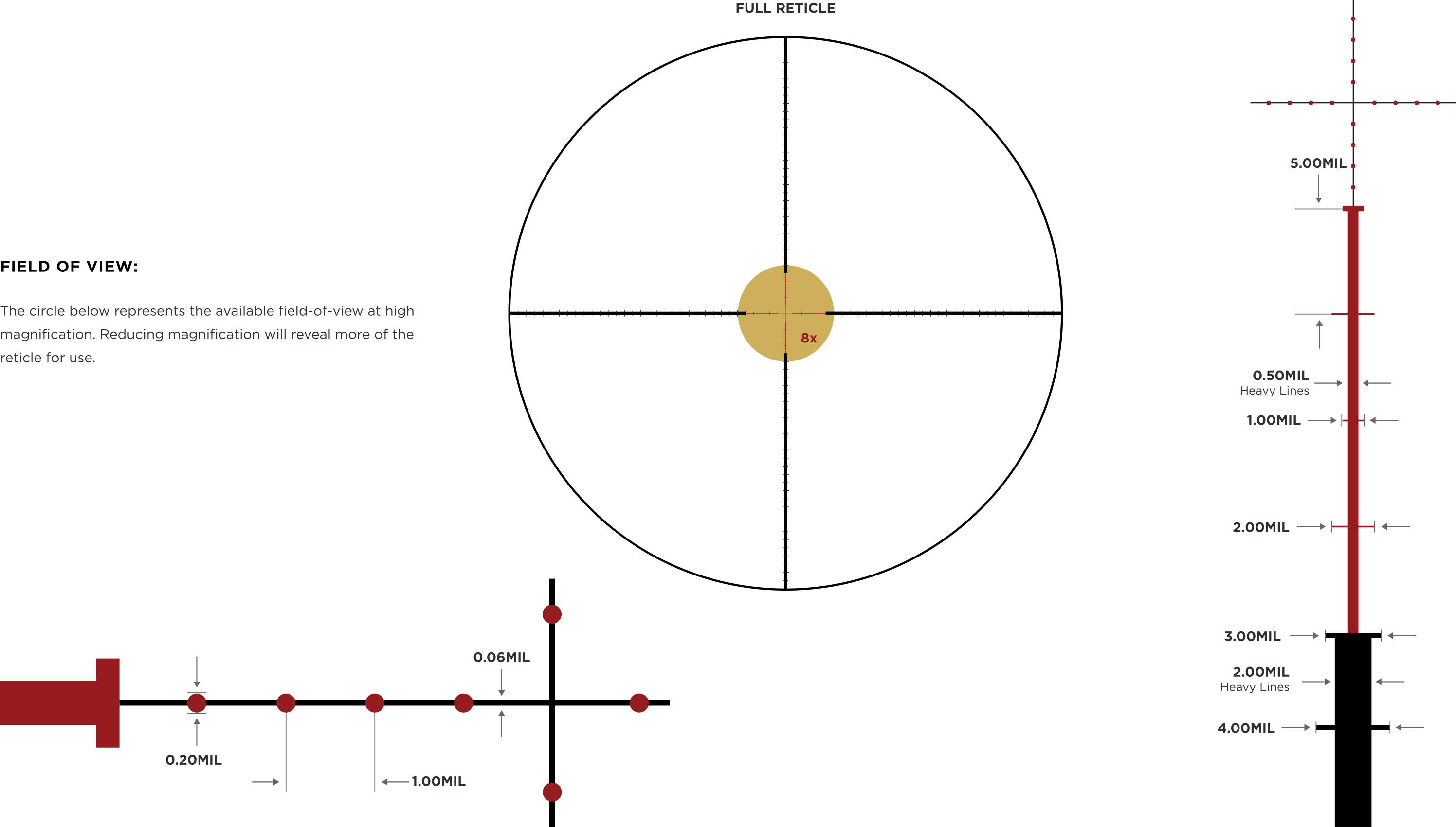

Detailed reticle info

Mil Dot (CQBSS) Illum. FFP

Download PDF
  • MIL based systems are the current military standard
  • Provides aiming points for both wind and bullet drop compensation
  • Dots are 0.2 MIL in diameter and spaced 1 MIL apart
  • Not caliber specific
  • Front (first) focal plane
