Mark 8 CQBSS 1.1-8x24 M5B1 Illum. FFP 7.62 CMR-W

Part #
116670

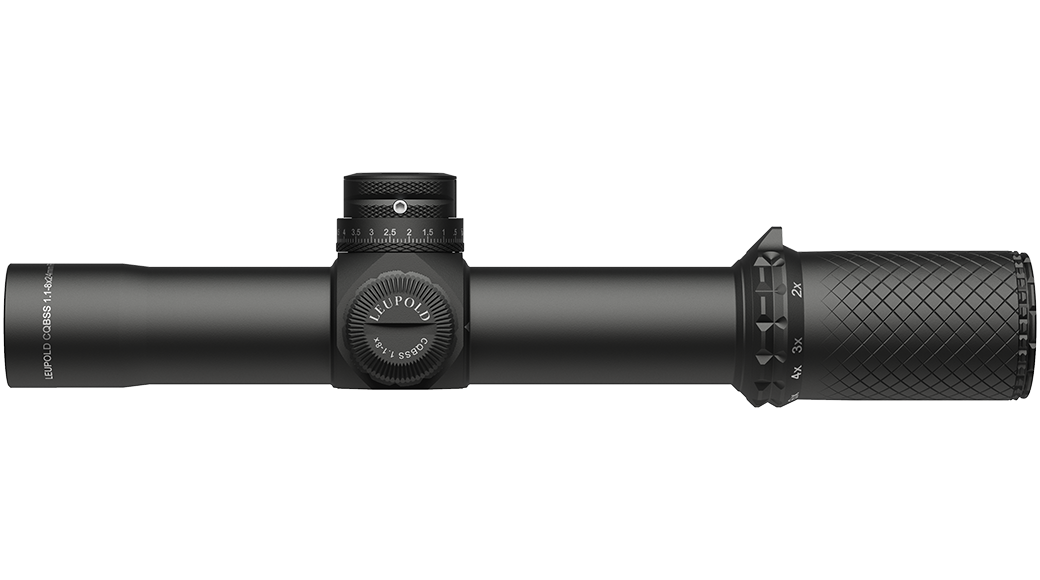

From close quarters to long-range engagements, the Mark 8® CQBSS® 1.1-8x24mm incorporates everything military, law enforcement, and professional shooters need into one extremely versatile riflescope. The illuminated first focal plane reticles provide accurate range estimation throughout the entire zoom range, while its eight brightness settings ensure optimal visibility of the reticle in all lighting conditions.

Government issue only. Minimum order quantities apply. Please contact governmentsales@leupold.com for details.

Illum. FFP 7.62 CMR-W Reticle info
$3,799.99

From close quarters to long-range engagements, the Mark 8® CQBSS® 1.1-8x24mm incorporates everything military, law enforcement, and professional shooters need into one extremely versatile riflescope. The illuminated first focal plane reticles provide accurate range estimation throughout the entire zoom range, while its eight brightness settings ensure optimal visibility of the reticle in all lighting conditions. And an off position between each numbered brightness setting ensures long battery life.

The 34mm maintube and twin bias spring erector system provide over 40 MIL of total windage and elevation adjustment. Auto-Locking Pinch & Turn 1/10th MIL click adjustments make precise corrections quick and easy, while eliminating accidental movement. Quick-change BDC (Bullet Drop Compensation) rings allow the scope to be matched to virtually any ammunition for long range precision. To top it all off, we built it around Leupold's Professional-Grade Optical System, which delivers the light transmission, glare reduction, and resolution that professional shooters demand in the field.

Mark 8 riflescopes are at the tip of the spear, boasting first focal plane reticles, an 8:1 zoom range, maximum resolution and field of view, and the image brightness and contrast necessary to take on the worst conditions. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
An extremely versatile 8:1 zoom ratio gives you 8 times more magnification at high power than at low power (model magnification ranges may available in powers of 8x: 1-8, 2-18, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The M5B1 adjustment is available on select models and features up to 10 MILs of elevation adjustment and 0.1 MIL clicks. A pinch-and-turn lock mechanism and zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
An extremely versatile 8:1 zoom ratio gives you 8 times more magnification at high power than at low power (model magnification ranges may available in powers of 8x: 1-8, 2-18, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The M5B1 adjustment is available on select models and features up to 10 MILs of elevation adjustment and 0.1 MIL clicks. A pinch-and-turn lock mechanism and zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
UPC 00030317166700
Finish Matte
Adjustable Objective No
Side Focus No
Elevation Adjustment Type M5B1
Locking Dial Yes
Zero Lock Dial No
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type M5B1
Custom Dial System (CDS) No
Custom Dial Compatible Yes
BDC Dial Included Yes
Reticle Type Illuminated
Reticle Illum. FFP 7.62 CMR-W
Battery Type CR2032
Switch Type Dial
Daylight Bright Illumination Yes
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 23.5
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 150
Elevation Adjustment Range (MIL) 44
Elevation Adjustment Range (cm @ 100m) 436
Elevation Adjustment Per Revolution 10 MIL
Elevation Dial Travel Limit 10MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 150
Windage Adjustment Range (MIL) 44
Windage Adjustment Range (cm @ 100m) 436
Windage Adjustment Per Revolution 10 MIL
Magnification Max 8
Magnification Min 1.1
Objective Lens Diameter (mm) 24
Linear FOV Low Mag (ft@100yds) 92
Linear FOV High Mag (ft@100yds) 17.7
Angular FOV Low Mag (Degrees) 17.4
Angular FOV High Mag (Degrees) 3.4
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.3
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 500
Battery Life (hr), Medium Intensity 72
Battery Life (hr), High Intensity 24
Number of Illum Settings 8
Dimensions
A Total Length (in) - A 12
B Total Mounting Space (in) - B 6.6
C Front Mounting Space (in) - C 2
D Rear Mounting Space (in) - D 3.5
E Eyepiece Length (in) - E 3.6
F Objective Length (in) - F 1.6
G Objective Diameter (in) - G 1.4
H Eyepiece Diameter (in) - H 1.7
K Maintube Diameter (mm/in) - K 34 mm

Detailed reticle info

Illum. FFP 7.62 CMR-W

Download PDF
  • Designed with the needs of competition shooters and tactical close to mid-range engagements
  • Red illuminated semi-circle for great contrast in low-light conditions and fast target acquisition
  • Semi-circle has a 7.5 MOA outer diameter and a 5 MOA inner diameter, with a 0.5 MOA center dot
  • Based on a 7.62/.308, 175gr round at 2575 FPS
  • Integrated MIL scale above the horizontal post for obtaining measurements and range estimation
  • Includes wind holds up to 20 MPH
  • Features a 50 meter zero with holdovers out to 1200 meters
  • Front (first) focal plane
