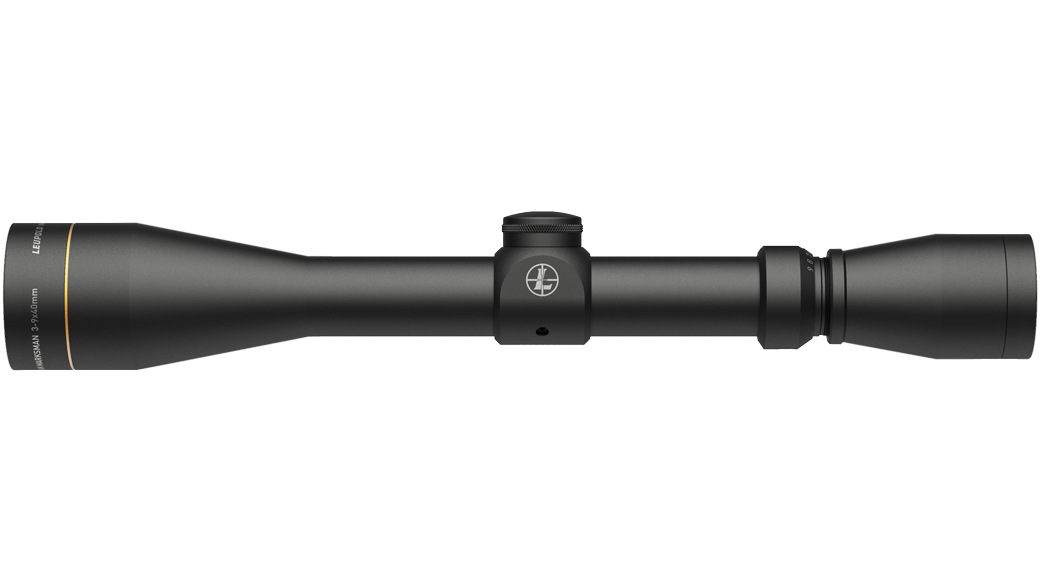

American Marksman 3-9x40

Part #
173759

The American Marksman 3-9x40mm combines quality features and unbeatable durability at an affordable price. The lead-free lenses feature Leupold's exclusive Multicoat 4® lens coatings that provide the utmost in resolution, clarity, and contrast.

matte finish
LR Wind-Plex® Reticle info
$229.99
This product has been discontinued and is no longer available for purchase
Search products in the same Open Country Hunting

The American Marksman 3-9x40mm combines quality features and unbeatable durability at an affordable price. The lead-free lenses feature Leupold's exclusive Multicoat 4® lens coatings that provide maximum resolution, clarity, and contrast. The 1/4-MOA finger click adjustments make for quick and precise zeroing and easy adjustment in the field.

Inside the scope is the LR Wind-Plex reticle with long-range holdover points and 1-MOA windage marks on the horizontal crosshair. A tactile power selector ring is easy to grasp and turn, while the lockable eyepiece makes focusing the reticle a breeze.

And like every Leupold® riflescope, the Marksman was designed, machined, and assembled in our Oregon factory. We test it to ensure it's absolutely rugged, 100% waterproof and fogproof, and then we guarantee it for a lifetime of performance.

Specifications
More Information
UPC 00030317017491
Finish Matte
Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type Finger Click
Zero Stop No
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Rezero Type Resettable Index Ring
Windage Adjustment Type Finger Click
Custom Dial System (CDS) No
Custom Dial Compatible No
BDC Dial Included No
Reticle LR Wind-Plex
Light Management System Advanced Optical System
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 11.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 60
Elevation Adjustment Range (MIL) 17
Elevation Adjustment Range (cm @ 100m) 175
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17
Windage Adjustment Range (cm @ 100m) 175
Windage Adjustment Per Revolution 15 MOA
Magnification Max 9
Magnification Min 3
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 33.7
Linear FOV High Mag (ft@100yds) 13.6
Angular FOV Low Mag (Degrees) 6.4
Angular FOV High Mag (Degrees) 2.6
Eye Relief Low Mag (in) 4.8
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150

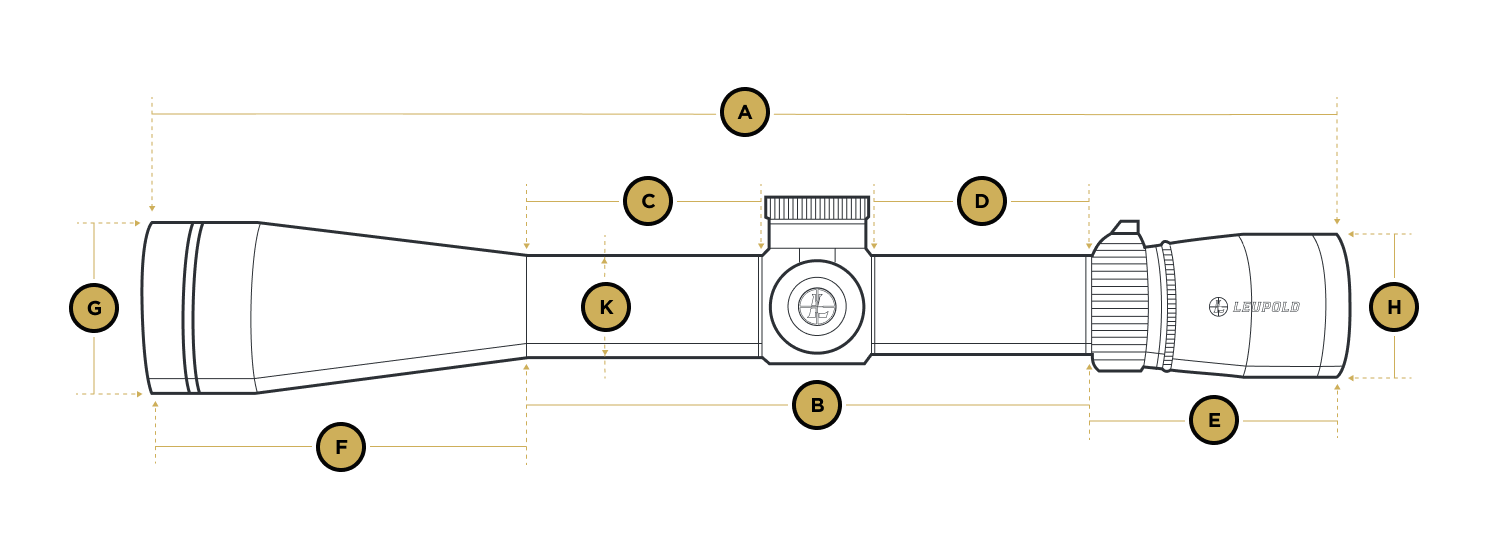

Dimensions
A Total Length (in) - A 12.4
B Total Mounting Space (in) - B 5.4
C Front Mounting Space (in) - C 2.3
D Rear Mounting Space (in) - D 1.9
E Eyepiece Length (in) - E 3.5
F Objective Length (in) - F 3.5
G Objective Diameter (in) - G 1.8
H Eyepiece Diameter (in) - H 1.6
K Maintube Diameter (mm/in) - K 1 Inch
Documents

Downloadable PDFs

Detailed reticle info

LR Wind-Plex®

  • Expands on the Duplex® design
  • Utilizes a 200 or 300 yard zero (ammunition dependent)
  • Accurate aiming points out to 500 or 600 yards
  • Aides in compensating for crosswinds
  • 1 MOA is approximately 1 inch at 100 yards
  • Hash marks are in 2 MOA increments
  • Marks extend to 10 MOA on each side
  • Intended to be used on highest magnification in rear (second) focal plane scope
  • Not caliber specific
