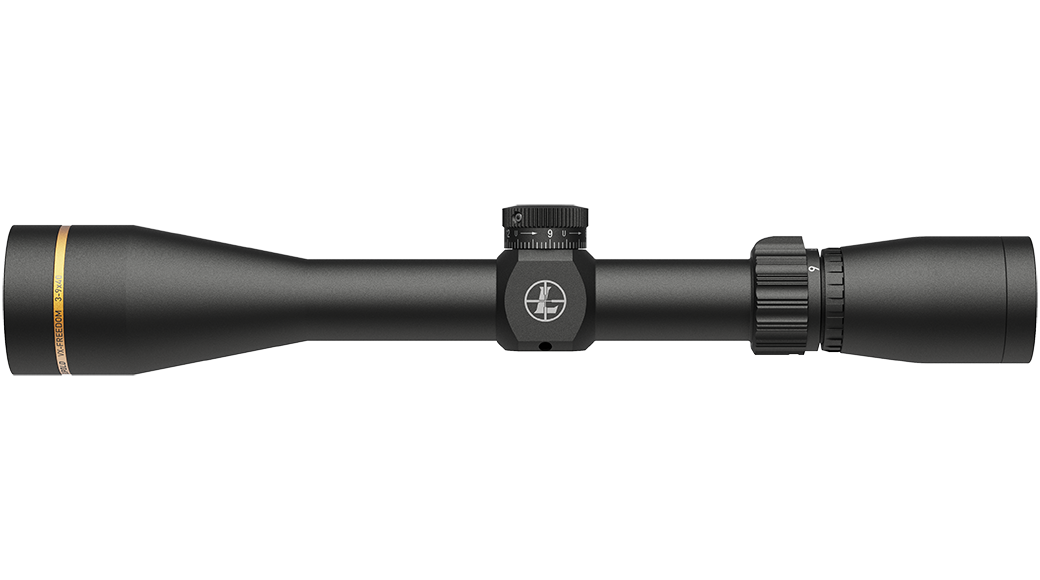

BLEM VX-Freedom 3-9x40 CDS Duplex

Part #
177670

Simplicity meets accuracy in one easy-to-use package. Make short work out of long-range shots with our VX®-Freedom® 3-9x40mm, equipped with the Leupold® Custom Dial System® (CDS). This system is easy to install and even easier to use.

$271.14
Find it locally

Simplicity meets accuracy in one easy-to-use package. Make short work out of long-range shots with our VX®-Freedom® 3-9x40mm, equipped with the Leupold® Custom Dial System® (CDS). This system is easy to install and even easier to use. Just provide us with your specific ballistics, and we make you a custom dial that eliminates the need for holdovers. Simply range your target, dial the distance, and aim dead on.

Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
BDC Dial Included No
Custom BDC Dial Compatible Yes
Daylight Bright Illumination No
Elevation Adjustment Type CDS
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Locking Dial No
Magnification Type Variable
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Revolution Indicator No
Reticle Duplex
Rezero Type Set Screw
Reticle Type Second Focal Plane
Adjustable Objective No
Side Focus No
Windage Adjustment Type Finger Click
Weight (oz) 12.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 60
Elevation Adjustment Range (MIL) 17
Elevation Adjustment Range (cm @ 100m) 175
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17
Windage Adjustment Range (cm @ 100m) 175
Windage Adjustment Per Revolution 15 MOA
Magnification Max 9
Magnification Min 3
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 33.1
Linear FOV High Mag (ft@100yds) 13.6
Angular FOV Low Mag (Degrees) 6.3
Angular FOV High Mag (Degrees) 2.6
Eye Relief Low Mag (in) 4.2
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
Dimensions
A Total Length (in) - A 12.49
B Total Mounting Space (in) - B 5.39
C Front Mounting Space (in) - C 2.32
D Rear Mounting Space (in) - D 1.85
E Eyepiece Length (in) - E 3.5
F Objective Length (in) - F 3.6
G Objective Diameter (in) - G 1.83
H Eyepiece Diameter (in) - H 1.56
K Maintube Diameter (mm/in) - K 1 Inch
