VX-Freedom

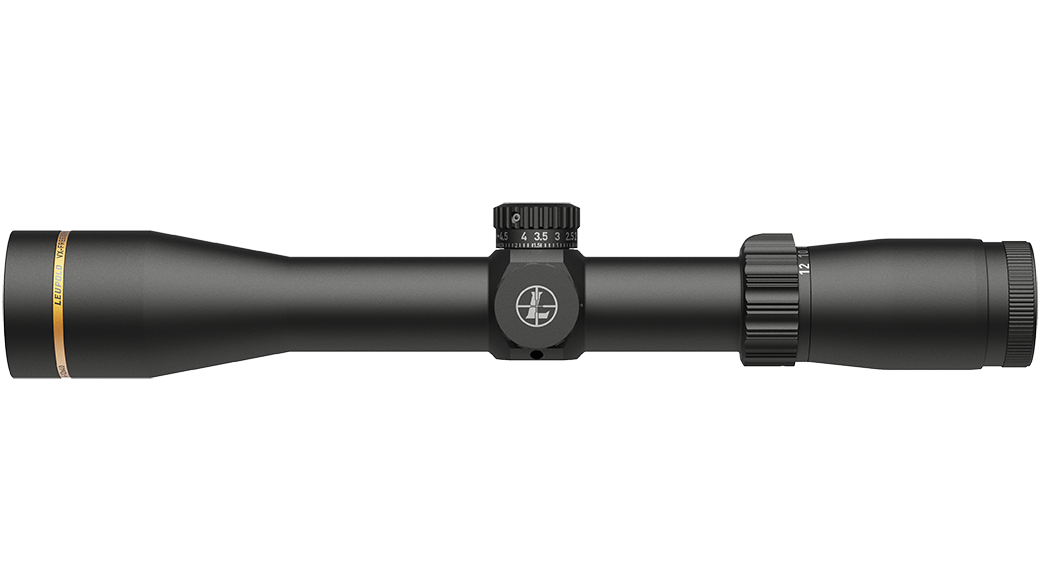

VX-Freedom AR 4-12x40 Side Focus TMR

Part #
177230

The VX®-Freedom® AR 4-12x40mm model was designed for the shooter who wants to get a little more distance out of his or her AR. Ready to rock right of the box, this scope features a TMR reticle and a 30mm maintube, so you'll have extra elevation travel for those longer shots.

matte finish
TMR Reticle info
$499.99
This product has been discontinued and is no longer available for purchase
Search products in the same Long Range Tactical

The VX®-Freedom® 4-12x40mm AR model was designed for the shooter who wants to get a little more distance out of his or her AR. Ready to rock right of the box, this scope features a TMR reticle and a 30mm maintube, so you'll have extra elevation travel for those longer shots.

It comes with a precalibrated custom dial that matches standard .223/.556 or .308 ammo, so you can easily range your target, turn the dial, and aim dead on. Combine that with Leupold's Advanced Optical System–which delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

The VX-Freedom is 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Specifications
More Information
UPC 00030317022501
Finish Matte
Adjustable Objective No
Side Focus Yes
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type AR Finger Click
Zero Stop Yes
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type Finger Click
Custom Dial System (CDS) No
Custom Dial Compatible Yes
BDC Dial Included Yes
Reticle TMR
Light Management System Twilight
Magnification Type Variable
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 15.9
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 80
Elevation Adjustment Range (MIL) 23
Elevation Adjustment Range (cm @ 100m) 233
Elevation Adjustment Per Revolution 6 MIL
Elevation Dial Travel Limit 5.6MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 80
Windage Adjustment Range (MIL) 23
Windage Adjustment Range (cm @ 100m) 233
Windage Adjustment Per Revolution 6 MIL
Magnification Max 12
Magnification Min 4
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 19.9
Linear FOV High Mag (ft@100yds) 11.2
Angular FOV Low Mag (Degrees) 3.8
Angular FOV High Mag (Degrees) 2.1
Eye Relief Low Mag (in) 5.2
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 35

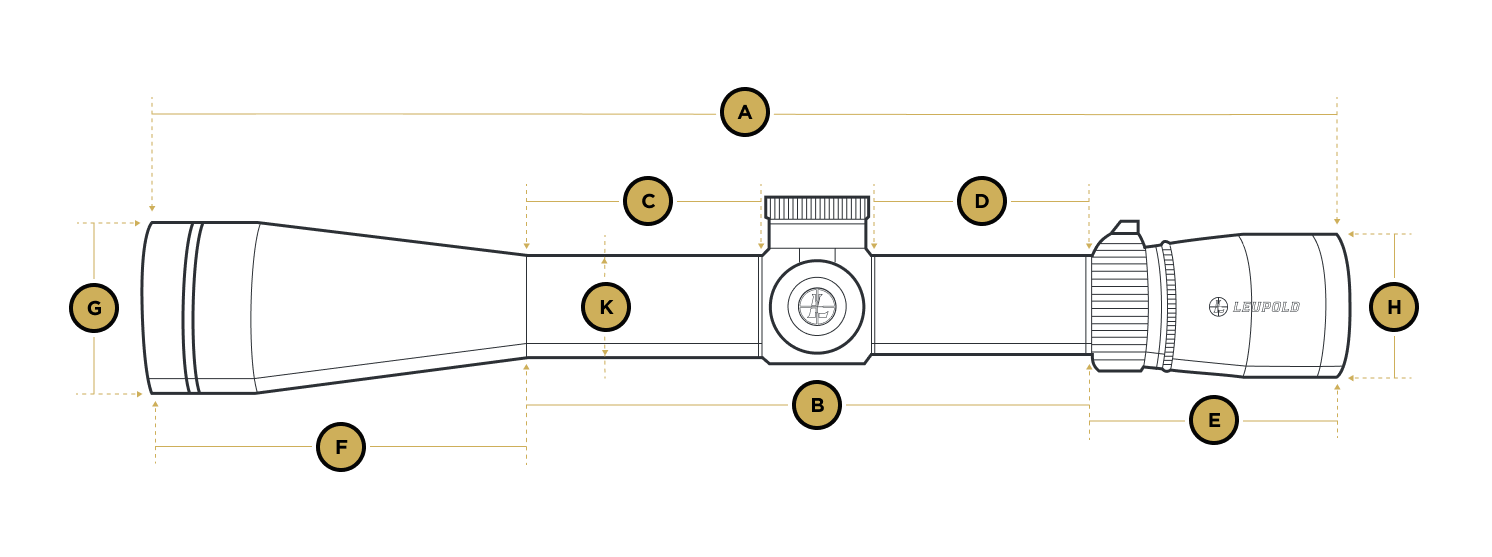

Dimensions
A Total Length (in) - A 12.3
B Total Mounting Space (in) - B 5.39
C Front Mounting Space (in) - C 2.32
D Rear Mounting Space (in) - D 1.85
E Eyepiece Length (in) - E 3.5
F Objective Length (in) - F 3.6
G Objective Diameter (in) - G 1.83
H Eyepiece Diameter (in) - H 1.63
K Maintube Diameter (mm/in) - K 30 mm
Documents

Downloadable PDFs

Detailed reticle info

  • Expands on existing MIL Dot reticle design
  • Uses hash marks instead of dots for increased ranging and holdover precision
  • Provides aiming points for both wind and bullet drop compensation
  • 1 MIL is approximately 3.6 inches at 100 yards
  • Hash marks are spaced 0.5 MIL apart, transitioning to 0.2 MIL spacing on the outer edges
  • Not caliber specific
  • Intended to be used on highest magnification in rear (second) focal plane scope
  • MIL based systems are the current military standard
