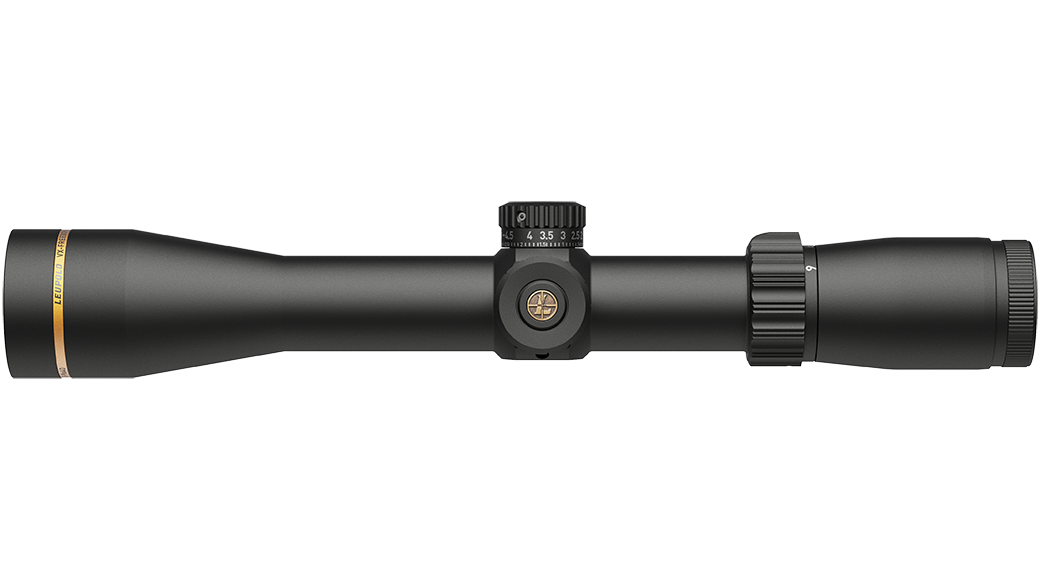

VX-Freedom AR 3-9x40 Illum. FireDot Tri-Mil
Part #
175077
The VX®-Freedom® 3-9x40mm AR model was designed for the shooter who wants to get a little more distance out of his or her AR. It's lighweight and rugged, and the 3-9 model provides the ideal magnification for mid to long-range engagements.
$499.99
The VX®-Freedom® 3-9x40mm AR model was designed for the shooter who wants to get a little more distance out of his or her AR. It's lighweight and rugged, and the 3-9 model provides the ideal magnification for mid to long-range engagements.
Ready to rock right of the box, this scope features a precalibrated custom dial that matches standard .223/5.56 or .308 ammo, so you can easily range your target, turn the dial, and aim dead on. Plus, our proprietary Firedot® illumination gives you a bright, intuitive aiming point that won't get lost in low-light conditions. Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that all recreational sportsmen and sportswomen demand.
The VX-Freedom is guaranteed to get the job done every time. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
| Battery Type | CR2032 |
|---|---|
| BDC Dial Included | Yes |
| Custom BDC Dial Compatible | Yes |
| Daylight Bright Illumination | Yes |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | AR Finger Click |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Locking Dial | No |
| Nightvision Compatible Illumination | No |
| Revolution Indicator | No |
| Reticle | Illum. FireDot Tri-Mil |
| Rezero Type | Set Screw |
| Reticle Type | Illuminated |
| Adjustable Objective | No |
| Side Focus | No |
| Switch Type | Push Button |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 15.4 |
| Elevation Adjustment Value per Click | 0.1Mil |
| Elevation Adjustment Range (MOA) | 65 |
| Elevation Adjustment Range (MIL) | 19 |
| Elevation Adjustment Range (cm @ 100m) | 189 |
| Elevation Adjustment Per Revolution | 6 MIL |
| Elevation Dial Travel Limit | 5.6MIL |
| Windage Adjustment Value per Click | 0.1Mil |
| Windage Adjustment Range (MOA) | 65 |
| Windage Adjustment Range (MIL) | 19 |
| Windage Adjustment Range (cm @ 100m) | 189 |
| Windage Adjustment Per Revolution | 6 MIL |
| Magnification Max | 9 |
| Magnification Min | 3 |
| Objective Lens Diameter (mm) | 40 |
| Linear FOV Low Mag (ft@100yds) | 33.7 |
| Linear FOV High Mag (ft@100yds) | 13.6 |
| Angular FOV Low Mag (Degrees) | 6.4 |
| Angular FOV High Mag (Degrees) | 2.6 |
| Eye Relief Low Mag (in) | 4.2 |
| Eye Relief High Mag (in) | 3.7 |
| Fixed Parallax-Free Distance (yd) | 150 |
| Battery Life (hr), Low Intensity | 1600 |
| Battery Life (hr), Medium Intensity | 1000 |
| Battery Life (hr), High Intensity | 300 |
| Number of Illum Settings | 8 |
Dimensions
| A Total Length (in) - A | 12.4 |
|---|---|
| B Total Mounting Space (in) - B | 5.6 |
| C Front Mounting Space (in) - C | 2.5 |
| D Rear Mounting Space (in) - D | 1.9 |
| E Eyepiece Length (in) - E | 3.4 |
| F Objective Length (in) - F | 3.3 |
| G Objective Diameter (in) - G | 1.8 |
| H Eyepiece Diameter (in) - H | 1.63 |
| K Maintube Diameter (mm/in) - K | 30 mm |
Detailed reticle info
FireDot® Tri-Mil Illum.
Download PDF- Expands on existing MIL Dot reticle design
- Uses hash marks instead of dots for increased ranging and holdover precision
- Provides aiming points for both wind and bullet drop compensation
- 1 MIL is approximately 3.6 inches at 100 yards
- Hash marks are spaced 0.5 MIL apart
- Fiber-optic powered red dot
- Multiple brightness settings for changing conditions
- FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
- Features Motion Sensor Technology
- Intended to be used on highest magnification in a rear or 2nd focal plane scope
- MIL based systems are the current military standard
