VX-Freedom 4-12x40 Tri-MOA

Part #
174665

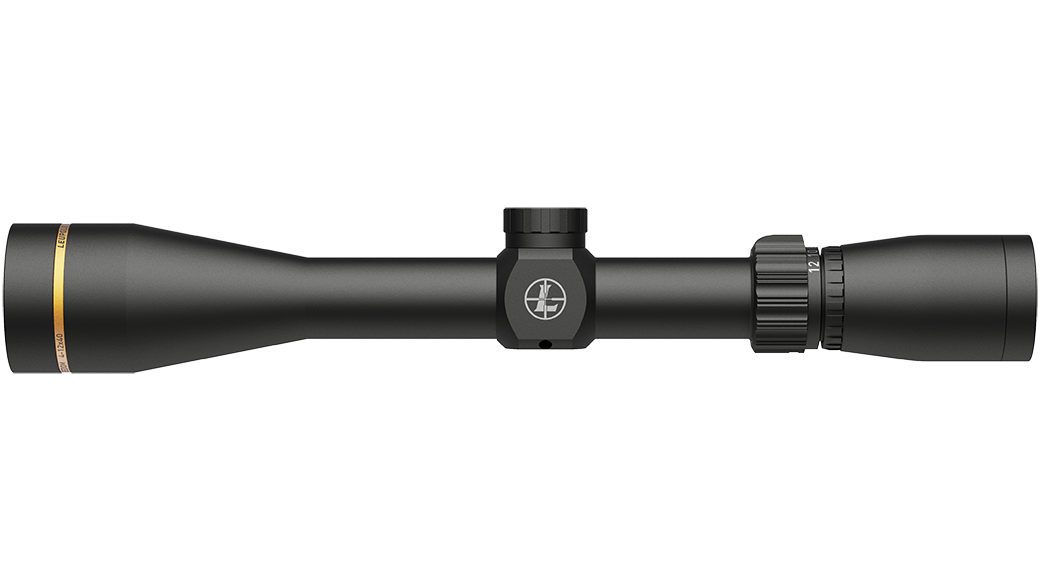

The VX®-Freedom® 4-12x40mm delivers the legendary Leupold® performance and dependability in a versatile magnification range that's ideal for mid to long-range shots.

matte finish
Tri-MOA Reticle info
$349.99

The VX®-Freedom® 4-12x40mm delivers legendary Leupold® performance and dependability in a versatile magnification range that's ideal for mid to long-range shots. This rugged and lightweight riflescope can get the job done on whatever rifle you have in your safe.

Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Objective No
Side Focus No
Elevation Adjustment Type Finger Click
Zero Stop No
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Rezero Type Resettable Index Ring
Windage Adjustment Type Finger Click
Custom Dial System (CDS) No
Custom Dial Compatible No
BDC Dial Included No
Reticle Tri-MOA
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 13.1
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 80
Elevation Adjustment Range (MIL) 23
Elevation Adjustment Range (cm @ 100m) 233
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 80
Windage Adjustment Range (MIL) 23
Windage Adjustment Range (cm @ 100m) 233
Windage Adjustment Per Revolution 15 MOA
Magnification Max 12
Magnification Min 4
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 21.5
Linear FOV High Mag (ft@100yds) 10
Angular FOV Low Mag (Degrees) 4.1
Angular FOV High Mag (Degrees) 1.9
Eye Relief Low Mag (in) 4.9
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
Dimensions
A Total Length (in) - A 12.49
B Total Mounting Space (in) - B 5.39
C Front Mounting Space (in) - C 2.32
D Rear Mounting Space (in) - D 1.85
E Eyepiece Length (in) - E 3.5
F Objective Length (in) - F 3.6
G Objective Diameter (in) - G 1.83
H Eyepiece Diameter (in) - H 1.56
K Maintube Diameter (mm/in) - K 1 Inch

Detailed reticle info

Tri-MOA

Download PDF
  • Proprietary Leupold® design
  • Based off the T-MOA® reticle
  • Provided hash marks in 1 MOA increments
  • Features 10 MOA of measurement in each direction
  • 5 MOA hash is wider for quick reference
  • Open upper half of the reticle for observation and spotting
  • Not caliber specific
  • Rear (second) focal plane
