VX-Freedom

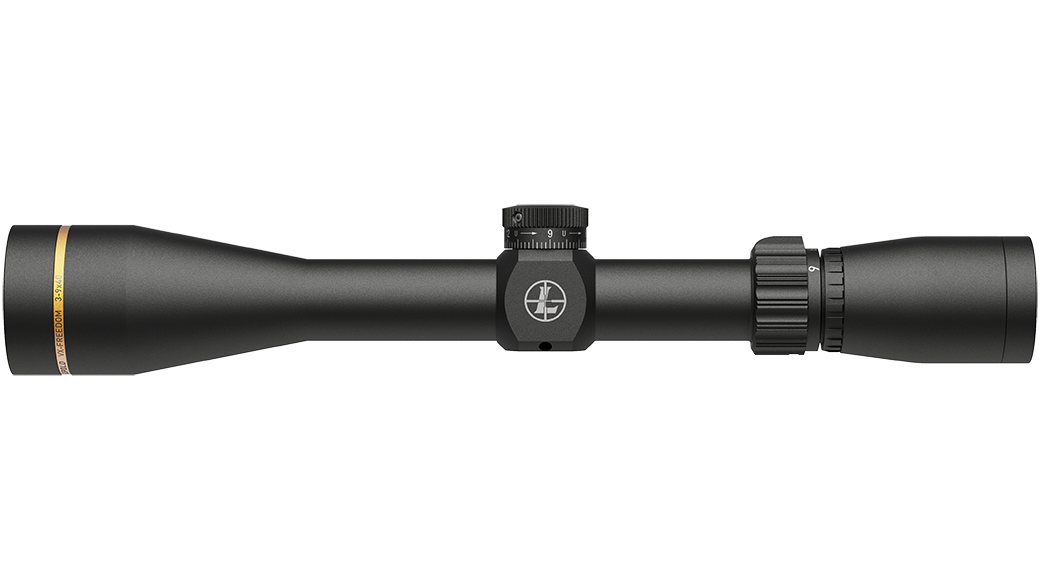

VX-Freedom 3-9x40 CDS Tri-MOA

Part #
180603

Simplicity meets accuracy in one easy-to-use package. Make short work out of almost any shot with our VX®-Freedom® 3-9x40mm and the Leupold® Custom Dial System® (CDS), which gives you a customizable ballistics solution at your fingertips.

matte finish
Tri-MOA Reticle info
$349.99

Simplicity meets accuracy in one easy-to-use package. Make short work out of almost any shot with our VX®-Freedom® 3-9x40 and the Leupold® Custom Dial System® (CDS), which gives you a customizable ballistics solution at your fingertips. This system is easy to install and even easier to use.

Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
Our ergonomic design ensures our products are slim, lightweight, and fit well in your hands no matter what size they are.
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
Aluminum offers excellent durability and ruggedness without adding unnecessary weight.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
Our ergonomic design ensures our products are slim, lightweight, and fit well in your hands no matter what size they are.
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
Aluminum offers excellent durability and ruggedness without adding unnecessary weight.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS
Zero Stop Yes
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type Finger Click
BDC Dial Included No
Reticle Type Second Focal Plane
Reticle Duplex
Light Management System Advanced Optical System
Magnification Type Variable
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 12.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 60
Elevation Adjustment Range (MIL) 17
Elevation Adjustment Range (cm @ 100m) 175
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17
Windage Adjustment Range (cm @ 100m) 175
Windage Adjustment Per Revolution 15 MOA
Magnification Max 9
Magnification Min 3
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 33.1
Linear FOV High Mag (ft@100yds) 13.6
Angular FOV Low Mag (Degrees) 6.3
Angular FOV High Mag (Degrees) 2.6
Eye Relief Low Mag (in) 4.2
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
Dimensions
A Total Length (in) - A 12.49
B Total Mounting Space (in) - B 5.39
C Front Mounting Space (in) - C 2.32
D Rear Mounting Space (in) - D 1.85
E Eyepiece Length (in) - E 3.5
F Objective Length (in) - F 3.6
G Objective Diameter (in) - G 1.83
H Eyepiece Diameter (in) - H 1.56
K Maintube Diameter (mm/in) - K 1 Inch

Detailed reticle info

Tri-MOA

Download PDF
  • Proprietary Leupold® design
  • Based off the T-MOA® reticle
  • Provided hash marks in 1 MOA increments
  • Features 10 MOA of measurement in each direction
  • 5 MOA hash is wider for quick reference
  • Open upper half of the reticle for observation and spotting
  • Not caliber specific
  • Rear (second) focal plane
