VX-Freedom

VX-Freedom 1.5-4x20 MOA-Ring

Part #
180590

The VX®-Freedom® delivers the legendary Leupold® performance and dependability hunters and shooters have demanded for decades. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, mid-range shots.

MOA-Ring Reticle info
$299.99
Find it locally

The VX®-Freedom® delivers the legendary Leupold® performance and dependability hunters and shooters have demanded for decades. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, close to mid-range shots.

Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
BDC Dial Included No
Custom Dial Compatible No
Daylight Bright Illumination No
Custom Dial System (CDS) No
Elevation Adjustment Type Finger Click
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Light Management System Advanced Optical System
Locking Dial No
Magnification Type Variable
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Reticle Focal Plane Second Focal Plane
Revolution Indicator No
Reticle MOA-Ring
Rezero Type Resettable Index Ring
Reticle Type Second Focal Plane
Adjustable Objective No
Side Focus No
Windage Adjustment Type Finger Click
Weight (oz) 9.6
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 125
Elevation Adjustment Range (MIL) 36
Elevation Adjustment Range (cm @ 100m) 364
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 125
Windage Adjustment Range (MIL) 36
Windage Adjustment Range (cm @ 100m) 364
Windage Adjustment Per Revolution 15 MOA
Magnification Max 4
Magnification Min 1.5
Objective Lens Diameter (mm) 20
Linear FOV Low Mag (ft@100yds) 74.2
Linear FOV High Mag (ft@100yds) 29.4
Angular FOV Low Mag (Degrees) 14.1
Angular FOV High Mag (Degrees) 5.6
Eye Relief Low Mag (in) 4.2
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
Dimensions
A Total Length (in) - A 9.35
B Total Mounting Space (in) - B 5.4
C Front Mounting Space (in) - C 2.17
D Rear Mounting Space (in) - D 1.85
E Eyepiece Length (in) - E 3.5
F Objective Length (in) - F .45
G Objective Diameter (in) - G 1
H Eyepiece Diameter (in) - H 1.56
K Maintube Diameter (mm/in) - K 1 Inch

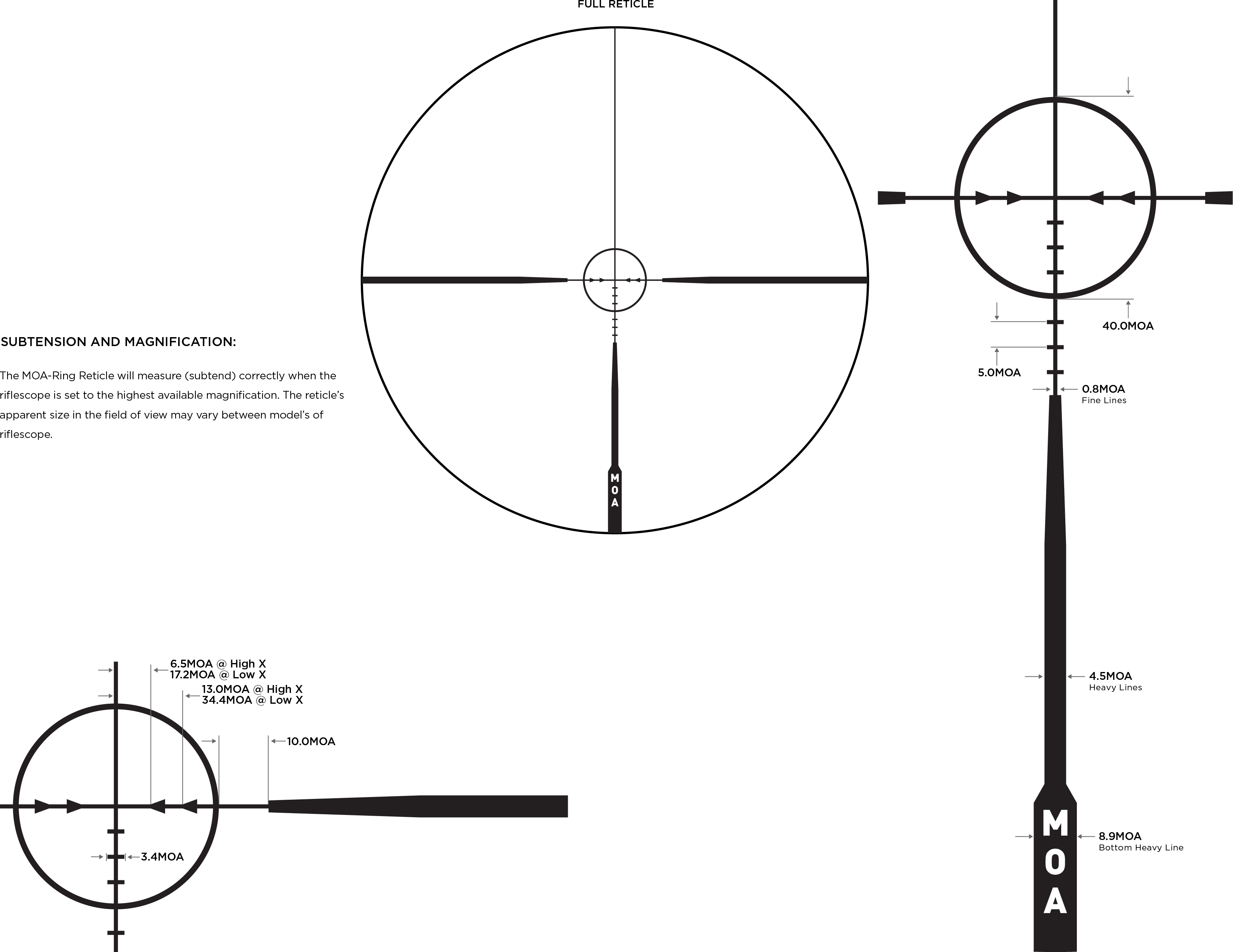

Detailed reticle info

MOA-Ring

Download PDF
  • Large outer ring for aiming at fast moving, close targets
  • Tick marks below center with 5 MOA spacing for ballistic corrections
  • Open center with bold, tapered pickets for low-light conditions
  • Horizontal line with lead markers for moving targets when at low power. Arrows indicate the direction of movement while the markers represent 10mph and 20mph.
