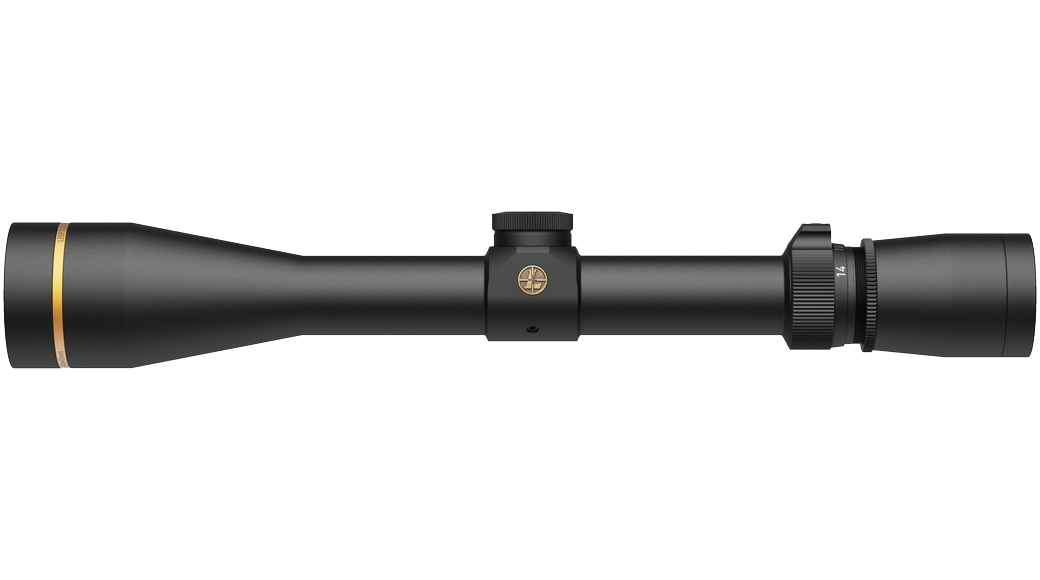

VX-3i 4.5-14x40 Duplex

Description

Let the VX®-3i 4.5-14x40mm help you reach out farther without adding ounces. With a magnification range great for any situation, you're guaranteed to have the right tool for the job. The CDS-ZL adjustment allows for 14.5 MOA of bullet drop, which equals 500 to 700 yards of travel for most rifles. A push-button ZeroLock® system eliminates accidental dial movement, giving you more peace of mind in the field.

What do hunters want most in a scope? Outstanding performance in low-light conditions and an incredibly tough, lightweight design. The VX-3i delivers this and more. Built around Leupold’s Elite Optical System, it offers the light transmission, glare reduction, and resolution that diehard hunters and shooters demand for all-day performance.

Everything we put into the VX-3i is there to help you tag out. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Product Features

Features

3:1 Zoom Ratio

A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.

Elite Optical System

Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.

Second Focal Plane

In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.

Scratch Resistant Lenses

Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.

Waterproof, Fogproof, & Shockproof

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.

Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.

In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.

Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

Specifications

More Information
BDC Dial Included	No
Custom Dial System (CDS)	No
Custom BDC Dial Compatible	No
Daylight Bright Illumination	No
Elevation Adjustment Type	Finger Click
Electronic Reticle Level	No
Illuminated Reticle	No
Locking Dial	No
Motion Sensor Technology (MST)	No
Nightvision Compatible Illumination	No
Revolution Indicator	No
Reticle	Duplex
Rezero Type	Resettable Index Ring
Adjustable Objective	No
Precision Side Focus	No
Windage Adjustment Type	Finger Click
Weight (oz)	13
Elevation Adjustment Value per Click	1/4MOA
Elevation Adjustment Range (MOA)	65
Elevation Adjustment Range (MIL)	19
Elevation Adjustment Range (cm @ 100m)	189
Elevation Adjustment Per Revolution	15 MOA
Elevation Dial Travel Limit	Total Scope Travel
Windage Adjustment Value per Click	1/4MOA
Windage Adjustment Range (MOA)	65
Windage Adjustment Range (MIL)	19
Windage Adjustment Range (cm @ 100m)	189
Windage Adjustment Per Revolution	15 MOA
Magnification Max	14
Magnification Min	4.5
Objective Lens Diameter (mm)	40
Linear FOV Low Mag (ft@100yds)	19.9
Linear FOV High Mag (ft@100yds)	7.4
Angular FOV Low Mag (Degrees)	3.8
Angular FOV High Mag (Degrees)	1.4
Eye Relief Low Mag (in)	4.4
Eye Relief High Mag (in)	3.6
Fixed Parallax-Free Distance (yd)	150

Dimensions

A Total Length (in) - A	12.7
B Total Mounting Space (in) - B	6
C Front Mounting Space (in) - C	2.3
D Rear Mounting Space (in) - D	2.5
E Eyepiece Length (in) - E	3.1
F Objective Length (in) - F	3.6
G Objective Diameter (in) - G	1.8
H Eyepiece Diameter (in) - H	1.6
K Maintube Diameter (mm/in) - K	1 Inch
