VX-3HD

VX-3HD 3.5-10x50 CDS-ZL Duplex

Part #
180618

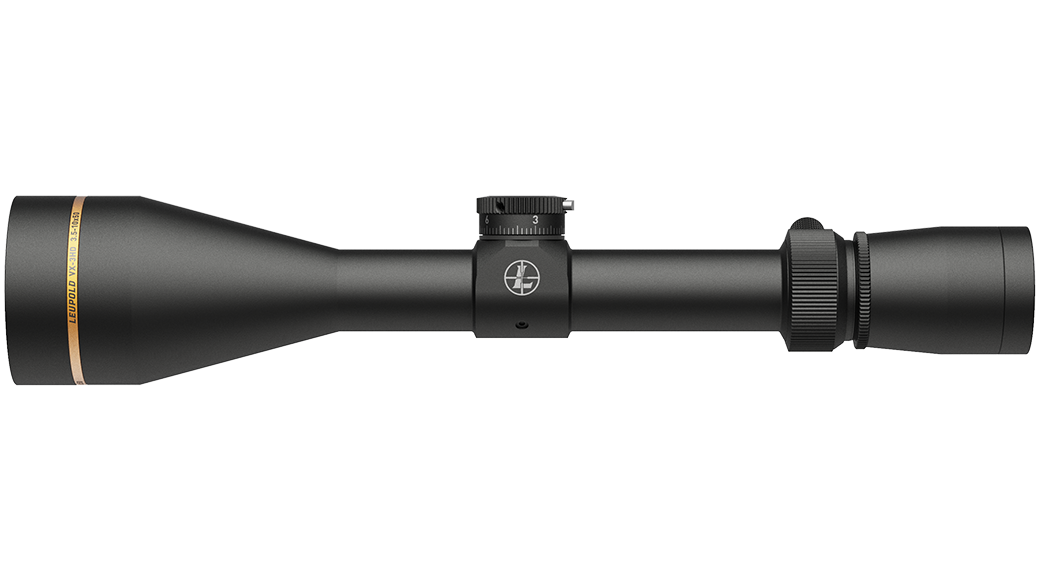

The VX®-3HD 3.5-10x50mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. Its versatile magnification and larger objective can get the job done in almost any scenario.

matte finish
Duplex® Reticle info
$599.99

The VX®-3HD 3.5-10x50mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. Its versatile magnification and larger objective can get the job done in almost any scenario.

The VX-3HD delivers outstanding performance in low light. With Leupold’s Elite Optical System, the VX-3HD delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS® ZeroLock® dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It’s that simple.

Everything we put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
Aluminum offers excellent durability and ruggedness without adding unnecessary weight.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
Aluminum offers excellent durability and ruggedness without adding unnecessary weight.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS-ZL
Zero Stop Yes
Locking Dial Yes
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type Finger Click
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Second Focal Plane
Reticle Duplex
Light Management System Elite Optical System
Magnification Type Variable
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 14.9
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 55
Elevation Adjustment Range (MIL) 16
Elevation Adjustment Range (cm @ 100m) 160
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 55
Windage Adjustment Range (MIL) 16
Windage Adjustment Range (cm @ 100m) 160
Windage Adjustment Per Revolution 15 MOA
Magnification Max 10
Magnification Min 3.5
Objective Lens Diameter (mm) 50
Linear FOV Low Mag (ft@100yds) 29.7
Linear FOV High Mag (ft@100yds) 11
Angular FOV Low Mag (Degrees) 4.3
Angular FOV High Mag (Degrees) 2.1
Eye Relief Low Mag (in) 4.4
Eye Relief High Mag (in) 3.6
Fixed Parallax-Free Distance (yd) 150
Dimensions
A Total Length (in) - A 12.29
B Total Mounting Space (in) - B 5.3
C Front Mounting Space (in) - C 1.59
D Rear Mounting Space (in) - D 2.48
E Eyepiece Length (in) - E 3.08
F Objective Length (in) - F 3.91
G Objective Diameter (in) - G 2.3
H Eyepiece Diameter (in) - H 1.56
K Maintube Diameter (mm/in) - K 1 Inch

Detailed reticle info

Duplex®

Download PDF
  • Invented in 1962 by Leupold®
  • Defined by heavy posts
  • Stands out against cover in low light
  • Quick target acquisition with thin lines at the center
  • Most popular reticle in the world
  • Rear (second) focal plane
