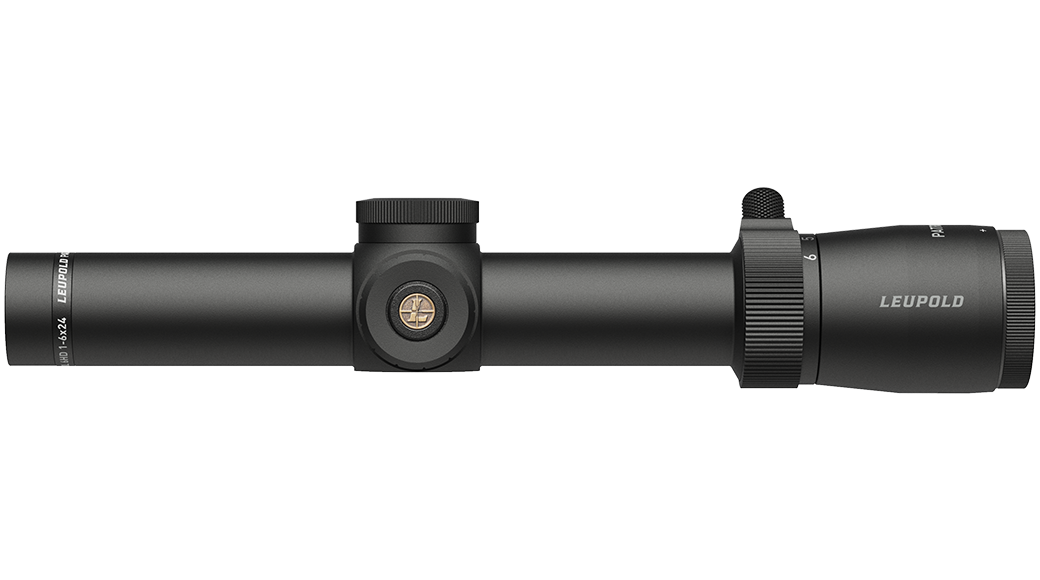

PATROL 6HD 1-6x24 ILLUM. FIREDOT DUPLEX

Part #
182398

With the Patrol 6HD, you can hit the field without worry. Its ultra-lightweight, low-profile design and 1-6 magnification range let you engage threats anywhere from tight corners to open fields. Whether your mission is to protect and serve or you're looking for an edge in competition, this battle-ready riflescope will help you put more rounds on target.

Illum. FireDot® Duplex® Reticle info
$1,399.99

With the Patrol 6HD, you can hit the field without worry. Its ultra-lightweight, low-profile design and 1-6 magnification range let you engage threats anywhere from tight corners to open fields. Whether your mission is to protect and serve or you're looking for an edge in competition, this battle-ready riflescope will help you put more rounds on target.

Built on Leupold’s Professional-Grade Optical System, it offers unmatched light transmission, industry-leading glare reduction, and the clarity and resolution law enforcement officers trust in the most challenging lighting conditions. The Patrol 6HD will take your lowlight capabilities to the max with an illuminated reticle that draws your eye to the center of the glass for fast, accurate shot placements. And a push-button illumination control guarantees smooth operation under stress.

This low-power variable optic is lightweight, rugged, and packed with features meant for high-speed action in the field or at your local range. It’s waterproof, fogproof, and guaranteed to perform for life so you can focus on the job instead of worrying about your optic.

Features
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
The Electronic Reticle will flash when the scope isn't level, promoting more accurate long-range shots. It can also simplify the mounting process.
Our high-quality Alumina® flip-back lens covers thread onto the scope to protect the lens from moisture, dirt, and debris.
This reversible throw lever easily clamps onto specific power-selector rings. Its large surface area makes it ideal for quick magnification changes.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
The Electronic Reticle will flash when the scope isn't level, promoting more accurate long-range shots. It can also simplify the mounting process.
Our high-quality Alumina® flip-back lens covers thread onto the scope to protect the lens from moisture, dirt, and debris.
This reversible throw lever easily clamps onto specific power-selector rings. Its large surface area makes it ideal for quick magnification changes.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type Pop-Up Rezero
Locking Dial No
Revolution Indicator No
Rezero Type Pop-Up
Windage Adjustment Type Pop-Up Rezero
Custom Dial System (CDS) No
Custom Dial Compatible No
BDC Dial Included No
Reticle Type Illuminated
Reticle Illum. FireDot Duplex
Light Management System Professional-Grade Optical System
Magnification Type Variable
Battery Type CR2032
Switch Type Push Button
Illuminated Yes
Nightvision Compatible Illumination No
Daylight Bright Illumination Yes
Weight (oz) 16.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 170
Elevation Adjustment Range (MIL) 49
Elevation Adjustment Range (cm @ 100m) 495
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 170
Windage Adjustment Range (MIL) 49
Windage Adjustment Range (cm @ 100m) 495
Windage Adjustment Per Revolution 20 MOA
Magnification Max 6
Magnification Min 1
Objective Lens Diameter (mm) 24
Linear FOV Low Mag (ft@100yds) 120.9
Linear FOV High Mag (ft@100yds) 19.2
Angular FOV Low Mag (Degrees) 22.8
Angular FOV High Mag (Degrees) 3.7
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Fixed Parallax-Free Distance (yd) 150
Minimum Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Objective Length (in) 0
Dimensions
A Total Length (in) - A 10.8
B Total Mounting Space (in) - B 6.8
C Front Mounting Space (in) - C 2.9
D Rear Mounting Space (in) - D 2.6
E Eyepiece Length (in) - E 3.3
G Objective Diameter (in) - G 1.8
H Eyepiece Diameter (in) - H 1.8
K Maintube Diameter (mm/in) - K 30 mm
Documents

Downloadable PDFs

Detailed reticle info

Illum. FireDot® Duplex®

Download PDF
  • Brings new technology to a classic design
  • Fiber-optic powered red dot
  • Multiple brightness settings for changing conditions
  • FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
  • Broad range of shooting applications
  • Rear (second) focal plane
