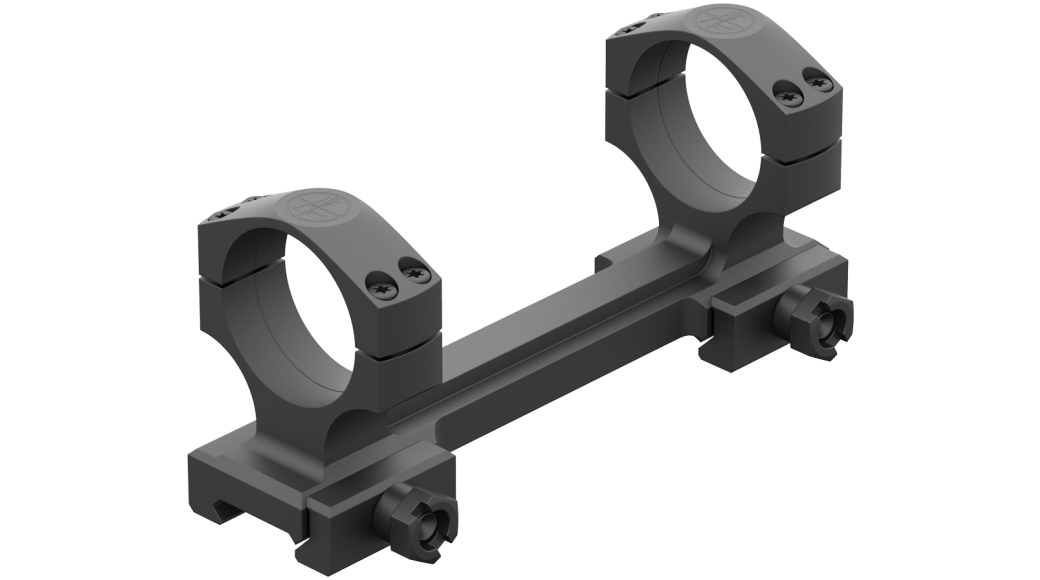

Mark IMS 35mm Bolt-Action
The Mark IMS 35mm bolt-action mount accommodates bolt throw and bolt-handle clearance, so the action functions fully and reliably with no compromise to the line of site. The mount’s geometry positions the optic for a natural cheek weld and consistent head placement that is essential for fast, repeatable shot placement.
The Mark IMS 34mm and 35mm bolt-action one-piece integral mounts provide a secure attachment for large-maintube scopes. The ring height places the center of the scope at 1.5", making them a perfect match for chassis-style long-range rifles. Available in zero MOA and 20 MOA, these mounts are purpose-built for bolt-action receivers and any scope with a 34mm or 35mm maintube.
Nothing is more crucial than the link between your scope and your rifle. That’s why IMS mounts are engineered to be every bit as rugged and dependable as the Leupold optics they secure. Made in the USA and guaranteed to hold up to a lifetime of abuse, Leupold mounts will never let you down.
Specifications
| Material | Aluminum |
|---|---|
| Base Cant | No |
| Ring Diameter | 35 mm |
| Ring Height (in) | 1.5 |
| Weight (oz) | 7.1 |
| Keeper Clamp Torque | 65 in-lbs |
| Ring Top Screw Torque | 28 in-lbs |
| Length (in) | 5.74 |
| Rear Offset (in) | .38 |
| Ring Depth (in) | .65 |
| Length Within Rings (in) | 3.68 |
| Ring Width (in) | 1.98 |
| Ring Height (in) | 1.5 |
