IMS (Integrated Mounting System)

Mark AR 30mm Matte

In stock
Part #
177094

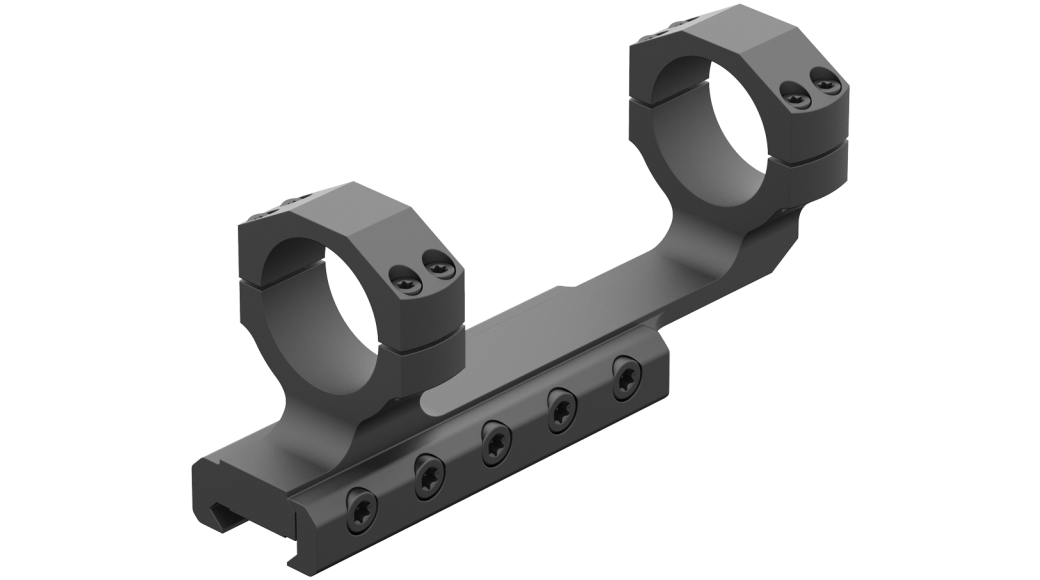

This Mark AR mounting system features an aluminum 1-piece integrated base and rings. It is designed to fit a Picatinny rail and any scope with a 30mm maintube.

$119.99
+
-
Find it locally

This Mark AR mounting system features an aluminum 1-piece integrated base and rings. It is designed to fit a Picatinny rail and any scope with a 30mm maintube. Leupold’s tactical Mark AR family of mounts gets your scope at the right height and the right eye relief while providing one of the most rock-solid mounting solutions in the business. The Mark AR mount features a 5-bolt design for a secure hold, and 3 lugs on the bottom to withstand any kind of recoil. Don't leave your rifle system's accuracy to chance–the cost-efficient Mark AR mount is the answer. Nothing is more crucial than the link between your scope and firearm. That’s why our mounts are every bit as rugged and dependable as the Leupold optics they secure. And with a huge variety of mounting systems to pick from, you're sure to find the perfect match for your firearm and style of shooting. Made in the USA and guaranteed to hold up to a lifetime of abuse, Leupold mounts will never let you down.

Specifications
More Information
Material Aluminum
Base Cant No
Base Configuration 1 Piece
Ring Diameter 30 mm
Ring Height (in) 1.4
Weight (oz) 5.8
Keeper Clamp Torque 65 in-lbs
Ring Top Screw Torque 28 in-lbs
Length (in) 5.43
Rear Offset (in) .68
Ring Depth (in) .65
Length Within Rings (in) 3.46
Keeper Length (in) 3.68
Front Offset (in) 1.75
Ring Width (in) 1.77
Ring Height (in) 1.4
