Mark 8 3.5-25X56 M5C2 FFP H59

Part #
171844

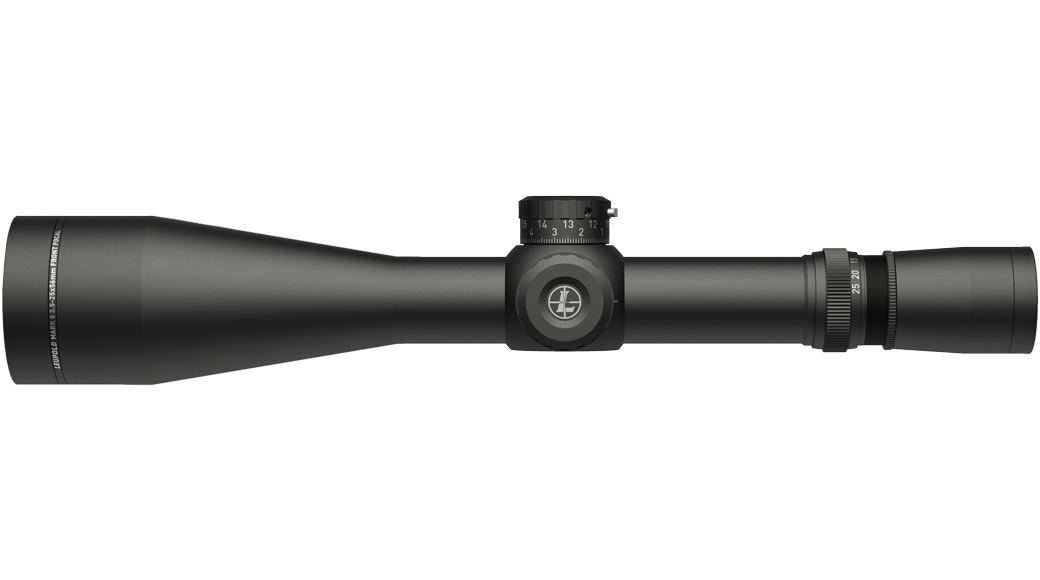

To hit your target, you have to find it first. Dial down the Mark 8® 3.5-25x56mm and it delivers a huge field of view that helps you see a large area. Crank the magnification up to deliver precise shots at any distance. And at only 32.5 ounces, you don't have to pay a weight penalty for this level of performance.

Government issue only. Minimum order quantities apply. Please contact governmentsales@leupold.com for details.

H59 Reticle info
$3,399.99
This product has been discontinued and is no longer available for purchase
Search products in the same First Focal Plane (FFP)
Find it locally

To hit your target, you have to find it first. Dial down the Mark 8® 3.5-25x56mm, and it delivers a huge field of view that helps you see a large area. Crank the magnification up to deliver precise shots at any distance. And at only 32.5 ounces, you don't have to pay a weight penalty for this level of performance.

The Mark 8 will immediately change your definition of long range. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional shooter in the field. The Mark 8's M5C2 ZeroLock® elevation dial features a two turn zero stop with a tactile revolution indicator, providing 20 MILs of travel (10 MILs per revolution) and eliminates under or over rotating the dial. With a 35mm maintube, this scope is the ultimate blend of versatility and rugged durability.

The Mark 8 riflescopes are at the tip of the spear, boasting first focal plane reticles, maximum resolution and field of view, an 8:1 zoom range, and the image brightness and contrast necessary to take on the worst conditions. It's 100% waterproof and fogproof, and like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

Features
An extremely versatile 8:1 zoom ratio gives you 8 times more magnification at high power than at low power (model magnification ranges may available in powers of 8x: 1-8, 2-18, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
The M5C2 adjustment is available on select models and features up to 20 MILs of elevation adjustment and 0.1 MIL clicks. A push-button zero lock and a zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
An extremely versatile 8:1 zoom ratio gives you 8 times more magnification at high power than at low power (model magnification ranges may available in powers of 8x: 1-8, 2-18, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
The M5C2 adjustment is available on select models and features up to 20 MILs of elevation adjustment and 0.1 MIL clicks. A push-button zero lock and a zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
BDC Dial Included No
Custom Dial Compatible No
Daylight Bright Illumination No
Custom Dial System (CDS) No
Elevation Adjustment Type M5C2
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Locking Dial Yes
Magnification Type Variable
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Revolution Indicator Yes
Reticle FFP H59
Rezero Type Set Screw
Reticle Type First Focal Plane
Adjustable Objective No
Windage Adjustment Type M5C1 (Mark 8)
Weight (oz) 32.5
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 90
Elevation Adjustment Range (MIL) 26
Elevation Adjustment Range (cm @ 100m) 262
Elevation Adjustment Per Revolution 10.5 MIL
Elevation Dial Travel Limit 20MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 50
Windage Adjustment Range (MIL) 15
Windage Adjustment Range (cm @ 100m) 145
Windage Adjustment Per Revolution 10 MIL
Magnification Max 25
Magnification Min 3.5
Objective Lens Diameter (mm) 56
Linear FOV Low Mag (ft@100yds) 32
Linear FOV High Mag (ft@100yds) 4.7
Angular FOV Low Mag (Degrees) 6.1
Angular FOV High Mag (Degrees) .9
Eye Relief Low Mag (in) 3.1
Eye Relief High Mag (in) 3.7
Minimum Parallax-Free Distance (yd) 50
Dimensions
A Total Length (in) - A 16
B Total Mounting Space (in) - B 6.4
C Front Mounting Space (in) - C 1.7
D Rear Mounting Space (in) - D 2.8
E Eyepiece Length (in) - E 3.3
F Objective Length (in) - F 6
G Objective Diameter (in) - G 2.7
H Eyepiece Diameter (in) - H 1.7
K Maintube Diameter (mm/in) - K 35 mm

Detailed reticle info

H59

  • Designed by Horus Vision®
  • Uses a MIL based system
  • Grid style reticle provides precise aiming points for bullet drop compensation and wind correction
  • Stepped lines above the horizontal post provide measurements in 0.1 MIL increments
  • Centralized dots at crosshair intersections for refined aiming points
  • Wider horizontal grid than the H-58
  • Open upper half of the reticle for observation and spotting
  • Multiple aiming points provide excellent corrections for follow-up shot placement
  • Numbered lines make for quick line identification
  • Front (first) focal plane
