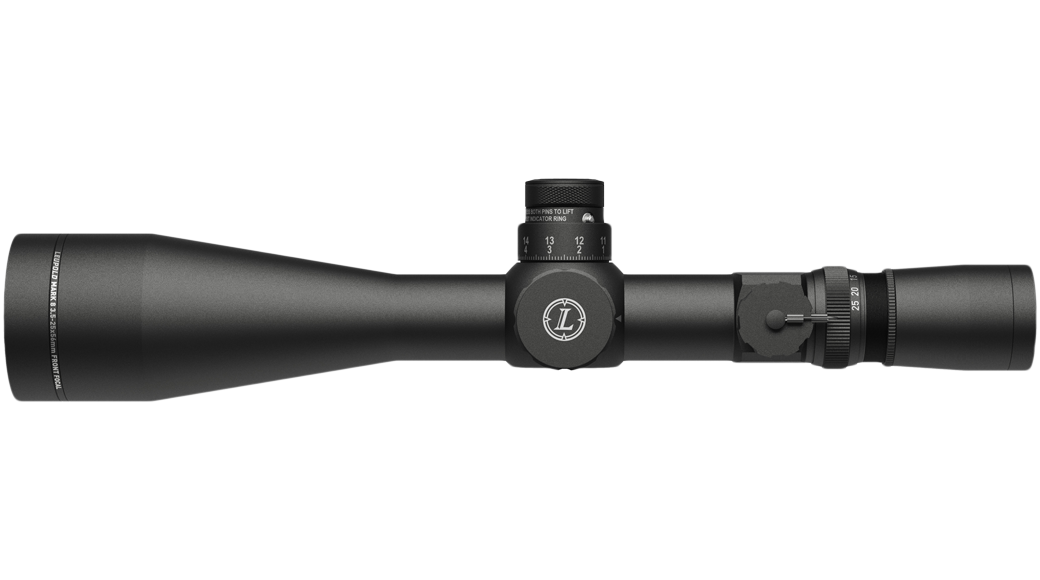

Mark 8 3.5-25X56 M5B2 Illum. FFP H59
Part #
170814
To hit your target, you have to find it first. Dial the Mark 8® 3.5-25x56mm down and it delivers a huge field of view that helps you see a large area. Crank the magnification up to deliver precise shots at any distance.
Government issue only. Minimum order quantities apply. Please contact governmentsales@leupold.com for details.
$4,699.99
The Mark 8® 3.5-25x56mm M5B2 Illuminated provides you with a huge magnification range for close or long-range engagements. Its illuminated first focal plane reticles provide accurate range estimation throughout the entire zoom range, while the seven brightness settings and Auto-Locking Pinch & Turn dials add even more versatility in the field.
Mark 8 riflescopes are at the tip of the spear, boasting first focal plane reticles, maximum resolution and field of view, an 8:1 zoom range, and the image brightness and contrast necessary to take on the worst conditions. Each scope is built around Leupold’s Professional-Grade Optical System, which offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional shooters demand.
With a Mark 8, you get the best-of-the-best optical quality in a waterproof, fogproof, and near indestructible package. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
An extremely versatile 8:1 zoom ratio gives you 8 times more magnification at high power than at low power (model magnification ranges may available in powers of 8x: 1-8, 2-18, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
The M5B2 adjustment is available on select models and features up to 20 MILs of elevation adjustment and 0.1 MIL clicks. A pinch-and-turn lock mechanism and a fully adjustable zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
An extremely versatile 8:1 zoom ratio gives you 8 times more magnification at high power than at low power (model magnification ranges may available in powers of 8x: 1-8, 2-18, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
The M5B2 adjustment is available on select models and features up to 20 MILs of elevation adjustment and 0.1 MIL clicks. A pinch-and-turn lock mechanism and a fully adjustable zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
| Battery Type | CR2032 |
|---|---|
| BDC Dial Included | No |
| Custom BDC Dial Compatible | No |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | M5B2 |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Revolution Indicator | Yes |
| Reticle | Illum. FFP H59 |
| Rezero Type | Set Screw |
| Reticle Type | Illuminated |
| Adjustable Objective | No |
| Switch Type | Dial |
| Windage Adjustment Type | M5B1 |
| Weight (oz) | 32.5 |
| Elevation Adjustment Value per Click | 0.1Mil |
| Elevation Adjustment Range (MOA) | 90 |
| Elevation Adjustment Range (MIL) | 26 |
| Elevation Adjustment Range (cm @ 100m) | 262 |
| Elevation Adjustment Per Revolution | 10 MIL |
| Elevation Dial Travel Limit | 20MIL |
| Windage Adjustment Value per Click | 0.1Mil |
| Windage Adjustment Range (MOA) | 50 |
| Windage Adjustment Range (MIL) | 15 |
| Windage Adjustment Range (cm @ 100m) | 145 |
| Windage Adjustment Per Revolution | 10 MIL |
| Magnification Max | 25 |
| Magnification Min | 3.5 |
| Objective Lens Diameter (mm) | 56 |
| Linear FOV Low Mag (ft@100yds) | 32 |
| Linear FOV High Mag (ft@100yds) | 4.7 |
| Angular FOV Low Mag (Degrees) | 6.1 |
| Angular FOV High Mag (Degrees) | .9 |
| Eye Relief Low Mag (in) | 3.1 |
| Eye Relief High Mag (in) | 3.7 |
| Minimum Parallax-Free Distance (yd) | 50 |
| Battery Life (hr), Low Intensity | 1800 |
| Battery Life (hr), High Intensity | 96 |
| Number of Illum Settings | 7 |
Dimensions
| A Total Length (in) - A | 16 |
|---|---|
| B Total Mounting Space (in) - B | 5.3 |
| C Front Mounting Space (in) - C | 1.7 |
| D Rear Mounting Space (in) - D | 1.7 |
| E Eyepiece Length (in) - E | 4.7 |
| F Objective Length (in) - F | 6 |
| G Objective Diameter (in) - G | 2.7 |
| H Eyepiece Diameter (in) - H | 1.7 |
| K Maintube Diameter (mm/in) - K | 35 mm |
Documents
Downloadable PDFs

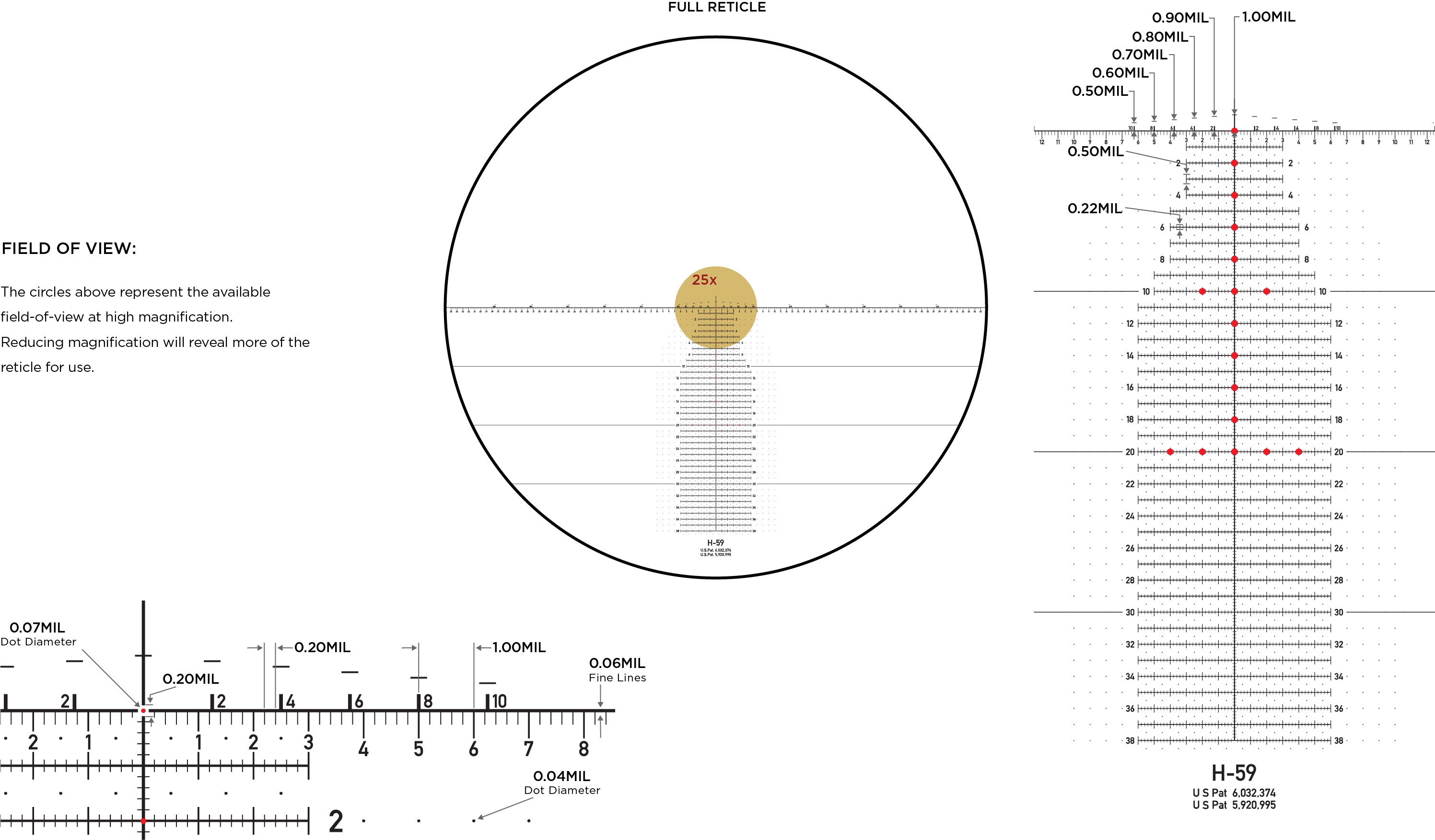

Detailed reticle info
H59 Illum. FFP
- Designed by Horus Vision®
- Uses a MIL based system
- Grid style reticle provides precise aiming points for bullet drop compensation and wind correction
- Red illuminated grid helps the reticle stand out in low-light conditions.
- Stepped lines above the horizontal post provide measurements in 0.1 MIL increments
- Centralized dots at crosshair intersections for refined aiming points
- Wider horizontal grid than the H-58
- Open upper half of the reticle for observation and spotting
- Multiple aiming points provide excellent corrections for follow-up shot placement
- Numbered lines make for quick line identification
- Front (first) focal plane
