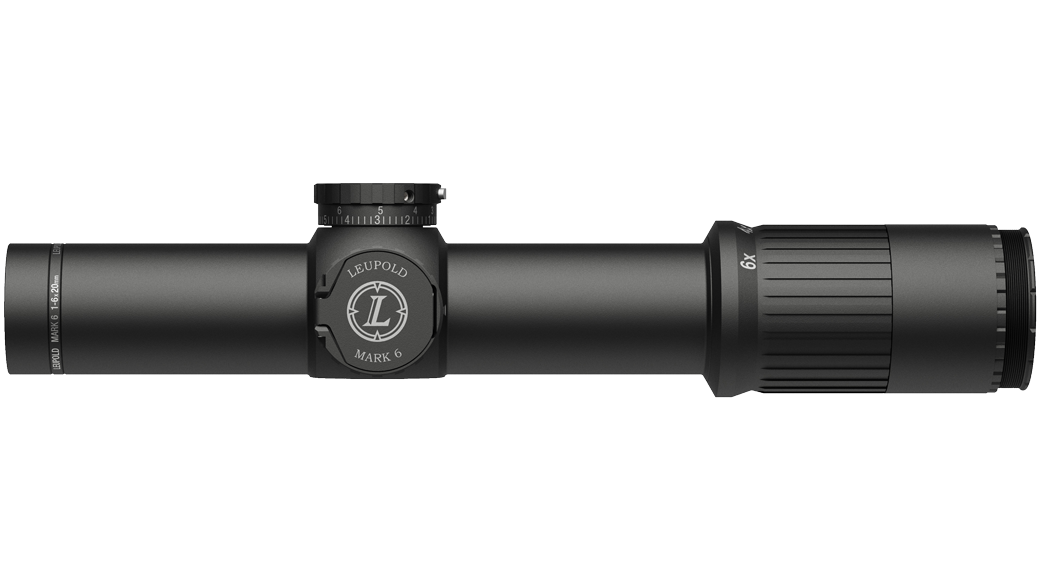

Mark 6 1-6x20 M6C1 Illum. FFP TMR-D

Part #
115045

The Leupold® Mark 6® is extremely accurate, compact, lightweight, and easy to use; that's what makes it a game-changer for military forces around the globe and elite law enforcement units here at home.

Government issue only. Minimum order quantities apply. Please contact governmentsales@leupold.com for details.

TMR-D Illum. FFP Reticle info
$2,199.99
This product has been discontinued and is no longer available for purchase
Search products in the same Close Quarters Tactical
Find it locally

The Leupold® Mark 6® 1-6x20mm is extremely accurate, compact, lightweight, and easy to use; that's what makes it a game-changer for military forces around the globe and elite law enforcement units here at home. It's not just easy to manipulate, it's tough, too. Drop it or run it over and a Mark 6 is still precise and accurate. Its ultra-lightweight design disperses recoil energy for unrivaled durability and performance, while the 1-6 magnification range gives you the ability to take close-range or longer shots.

Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional shooter in the field. The Mark series illumination controls deliver positive clicks and clear intensity level indicators with off positions between each setting for a quick return to your preferred brightness.

Its unique combination of features, durability, and professional-grade optical performance guarantees that it can handle any challenge you throw at it. The Mark 6 is 100% waterproof and fogproof, and like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

Features
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The M6C1 adjustment is available on select models and features up to 11 MILs of elevation adjustment, and 0.2 MIL clicks. A push-button zero lock and a zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The M6C1 adjustment is available on select models and features up to 11 MILs of elevation adjustment, and 0.2 MIL clicks. A push-button zero lock and a zero stop help prevent inadvertent adjustments and ensure accurate return to zero.
In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Battery Type CR2032
BDC Dial Included Yes
Custom Dial Compatible No
Daylight Bright Illumination Yes
Custom Dial System (CDS) No
Elevation Adjustment Type M6C1
Electronic Reticle Level No
Guard-ion Lens Coating No
Locking Dial Yes
Magnification Type Variable
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination Yes
Revolution Indicator No
Reticle Illum. FFP TMR-D
Rezero Type Set Screw
Reticle Type Illuminated
Adjustable Objective No
Side Focus No
Switch Type Dial
Windage Adjustment Type M6C1
Weight (oz) 17.6
Elevation Adjustment Value per Click 0.2Mil
Elevation Adjustment Range (MOA) 120
Elevation Adjustment Range (MIL) 35
Elevation Adjustment Range (cm @ 100m) 349
Elevation Adjustment Per Revolution 11 MIL
Elevation Dial Travel Limit 11MIL
Windage Adjustment Value per Click 0.2Mil
Windage Adjustment Range (MOA) 120
Windage Adjustment Range (MIL) 35
Windage Adjustment Range (cm @ 100m) 349
Windage Adjustment Per Revolution 10 MIL
Magnification Max 6
Magnification Min 1
Objective Lens Diameter (mm) 20
Linear FOV Low Mag (ft@100yds) 105.8
Linear FOV High Mag (ft@100yds) 19.3
Angular FOV Low Mag (Degrees) 20
Angular FOV High Mag (Degrees) 3.7
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 500
Battery Life (hr), Medium Intensity 72
Battery Life (hr), High Intensity 24
Number of Illum Settings 7
Objective Length (in) 0
Dimensions
A Total Length (in) - A 10.3
B Total Mounting Space (in) - B 5
C Front Mounting Space (in) - C 2.4
D Rear Mounting Space (in) - D 2.5
E Eyepiece Length (in) - E 3.2
G Objective Diameter (in) - G 1.3
H Eyepiece Diameter (in) - H 1.7
K Maintube Diameter (mm/in) - K 34 mm

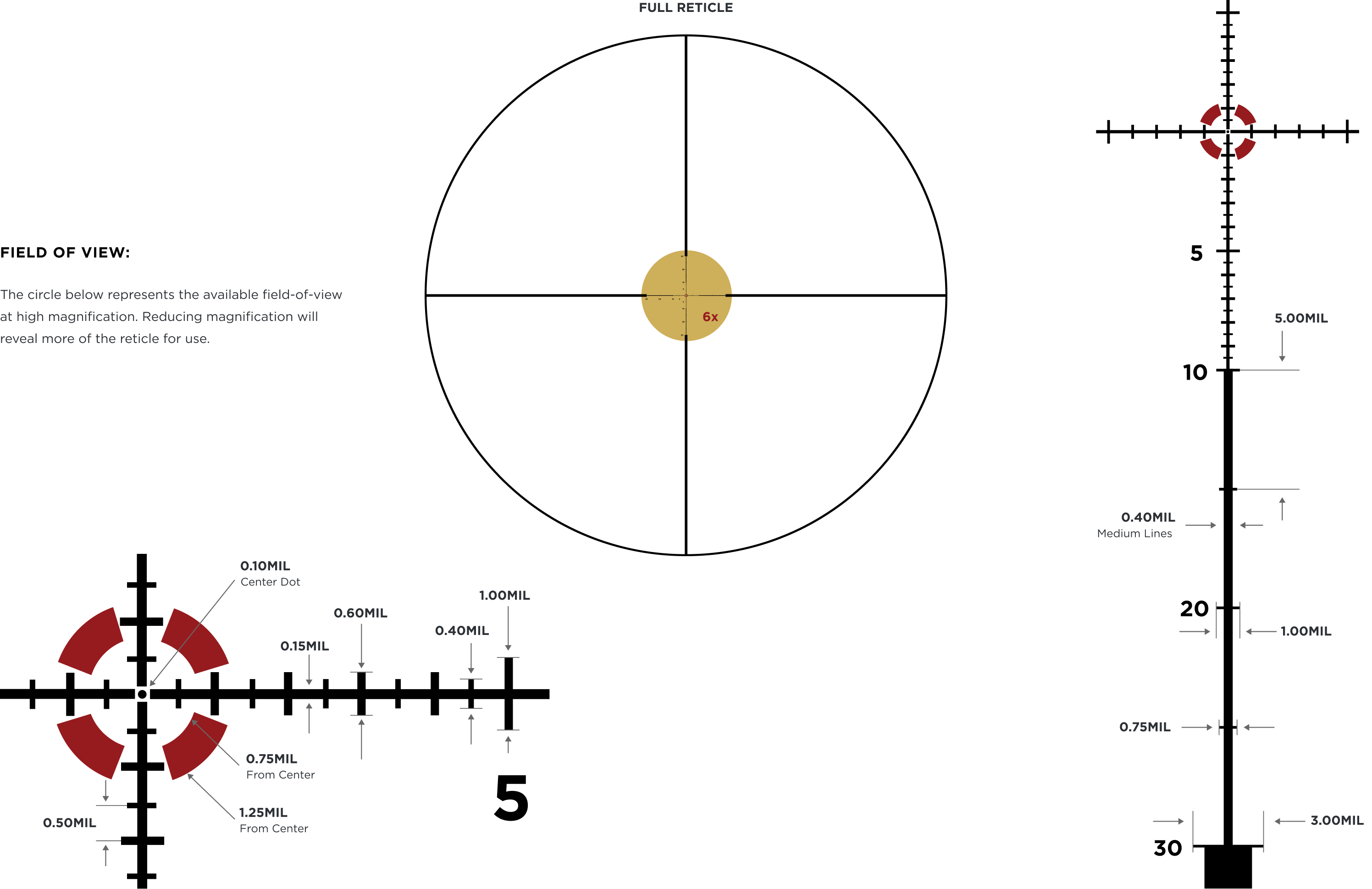

Detailed reticle info

TMR-D Illum. FFP

Download PDF
  • Expands on existing TMR® reticle design
  • Uses hash marks instead of dots for increased ranging and holdover precision
  • Provides aiming points for both wind and bullet drop compensation
  • 1 MIL is approximately 3.6 inches at 100 yards
  • Hash marks are spaced 0.5 MIL apart
  • Illuminated elements have been added for quick target acquisition at low power
  • Incorporates numbered hash marks for quick reference
  • Not caliber specific
  • Front (first) focal plane
  • MIL based systems are the current military standard
