Mark 3HD

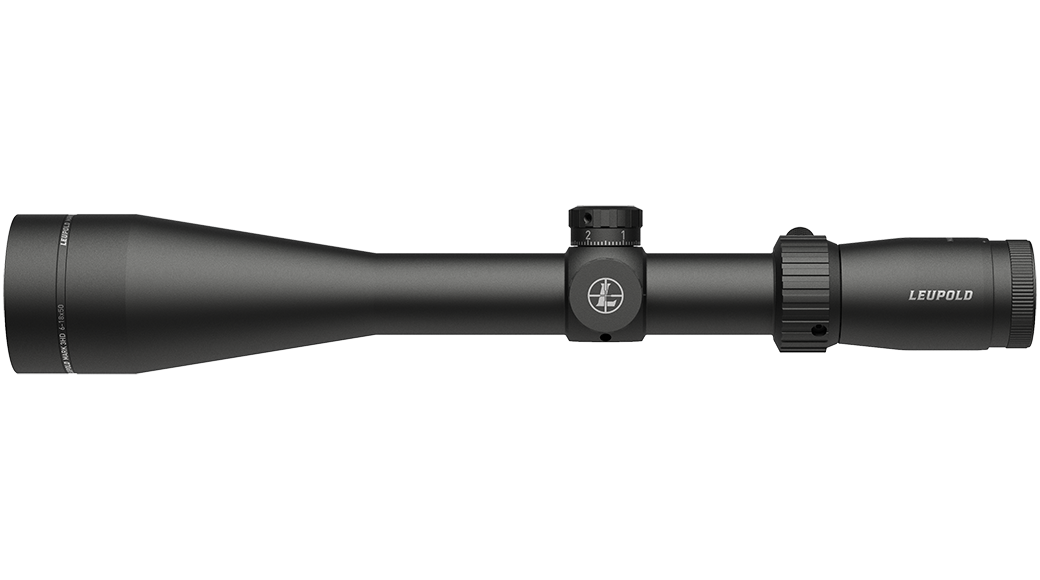

Mark 3HD 6-18x50 P5 Side Focus TMR

Part #
180671
matte finish
TMR Reticle info
$699.99
Specifications
More Information
UPC 00030317028640
Finish Matte
Adjustable Objective No
Side Focus Yes
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type P5
Zero Stop Yes
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type Capped
Custom Dial System (CDS) No
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Second Focal Plane
Reticle TMR
Light Management System Elite Optical System
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination Yes
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 19.5
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Per Revolution 6 MIL
Elevation Dial Travel Limit 5.6MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Per Revolution 5 MIL
Magnification Max 18
Magnification Min 6
Objective Lens Diameter (mm) 50
Linear FOV Low Mag (ft@100yds) 6.3
Linear FOV High Mag (ft@100yds) 3
Angular FOV Low Mag (Degrees) 1.2
Angular FOV High Mag (Degrees) .58
Eye Relief Low Mag (in) 5.1
Eye Relief High Mag (in) 3.7

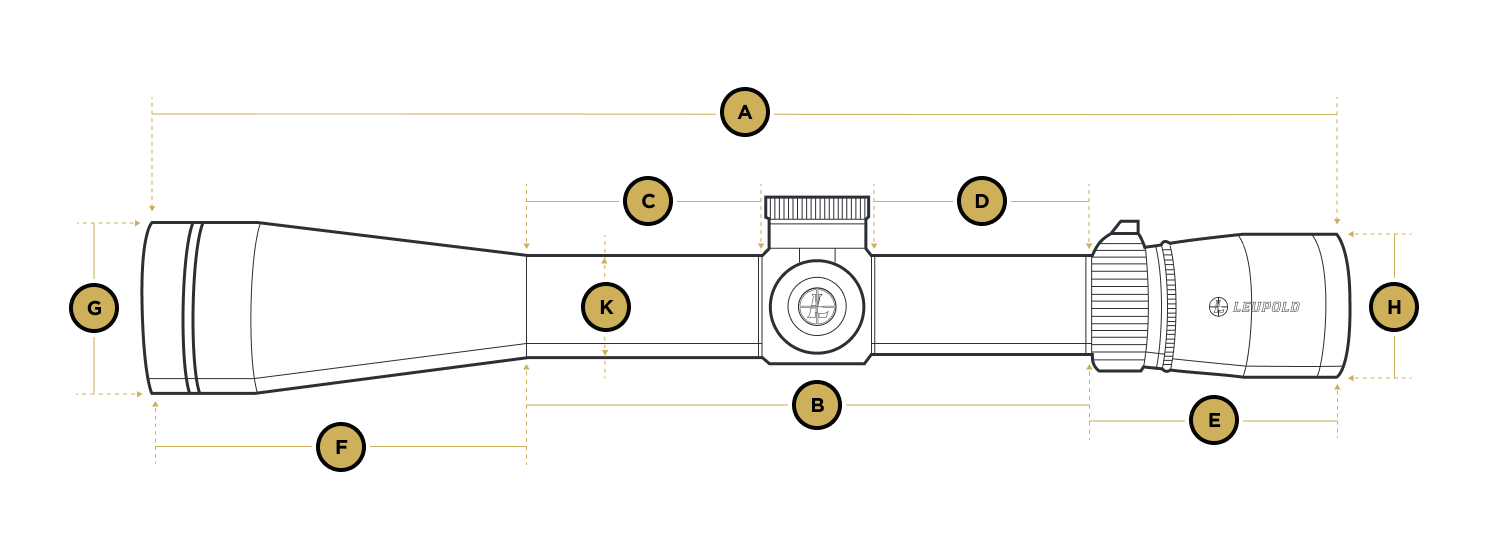

Dimensions
A Total Length (in) - A 14.6
B Total Mounting Space (in) - B 5.7
C Front Mounting Space (in) - C 2.7
D Rear Mounting Space (in) - D 1.8
E Eyepiece Length (in) - E 3.7
F Objective Length (in) - F 5.2
G Objective Diameter (in) - G 2.3
H Eyepiece Diameter (in) - H 1.6
K Maintube Diameter (mm/in) - K 30 mm
Documents

Downloadable PDFs

Detailed reticle info

  • Expands on existing MIL Dot reticle design
  • Uses hash marks instead of dots for increased ranging and holdover precision
  • Provides aiming points for both wind and bullet drop compensation
  • 1 MIL is approximately 3.6 inches at 100 yards
  • Hash marks are spaced 0.5 MIL apart, transitioning to 0.2 MIL spacing on the outer edges
  • Not caliber specific
  • Intended to be used on highest magnification in rear (second) focal plane scope
  • MIL based systems are the current military standard
