Mark 3HD

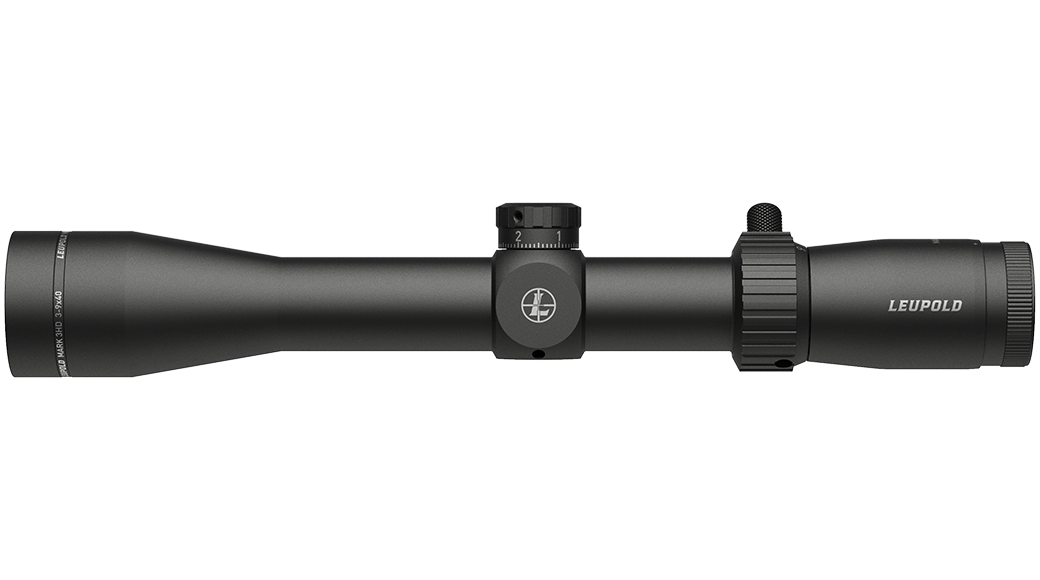

Mark 3HD 3-9x40 P5 MilDot

Part #
180665

The Mark 3HDâ„¢ was built for any shooter who needs a rugged, precise, and repeatable MIL-based scope for their rifle. With one of the most popular magnification ranges out there, the 3-9x40mm model makes short work of almost any shot while the 30mm maintube gives you ample adjustment when you need it.

Mil Dot (Mark 3HD) Reticle info
$499.99
Find it locally

We have a long history of manufacturing rugged and reliable riflescopes that outperform and outlast everything else on the battlefield and in competition. We used that heritage to create an extremely versatile line of tactical scopes for the shooter looking to upgrade every long gun in their safe. With one of the most popular magnification ranges out there, the Mark 3HD™ 3-9x40mm makes short work of almost any shot, while the 30mm maintube gives you ample adjustment when you need it.

Complete with MIL-based adjustments and reticles, HD performance, an exposed elevation adjustment dial, and a low-profile power selector with integrated throw lever, the Mark 3HD series is perfect for anyone who needs a rugged, precise, and repeatable scope. Built around Leupold’s Elite Optical System, it offers the light transmission, glare reduction, and resolution that diehard hunters and shooters demand for all-day performance.

And like every Leupold® riflescope, the Mark 3HD was designed, machined, and assembled in our Oregon factory. We test it to ensure it's absolutely rugged, 100% waterproof and fogproof, and then we guarantee it for a lifetime of performance.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
BDC Dial Included No
Daylight Bright Illumination No
Custom Dial System (CDS) No
Elevation Adjustment Type P5
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Light Management System Elite Optical System
Locking Dial No
Magnification Type Variable
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Reticle Focal Plane Second Focal Plane
Revolution Indicator No
Reticle Mil Dot
Rezero Type Set Screw
Reticle Type Second Focal Plane
Adjustable Objective No
Side Focus No
Windage Adjustment Type Capped
Weight (oz) 15.6
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 52
Elevation Adjustment Range (MIL) 15
Elevation Adjustment Range (cm @ 100m) 150
Elevation Adjustment Per Revolution 6 MIL
Elevation Dial Travel Limit 5.6MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 52
Windage Adjustment Range (MIL) 15
Windage Adjustment Range (cm @ 100m) 150
Windage Adjustment Per Revolution 5 MIL
Magnification Max 9
Magnification Min 3
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 33.5
Linear FOV High Mag (ft@100yds) 14.1
Angular FOV Low Mag (Degrees) 6.4
Angular FOV High Mag (Degrees) 2.7
Eye Relief Low Mag (in) 4.2
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
Dimensions
A Total Length (in) - A 12.7
B Total Mounting Space (in) - B 5.6
C Front Mounting Space (in) - C 2.6
D Rear Mounting Space (in) - D 1.8
E Eyepiece Length (in) - E 3.7
F Objective Length (in) - F 3.3
G Objective Diameter (in) - G 1.8
H Eyepiece Diameter (in) - H 1.6
K Maintube Diameter (mm/in) - K 30 mm

Detailed reticle info

Mil Dot (Mark 3HD)
