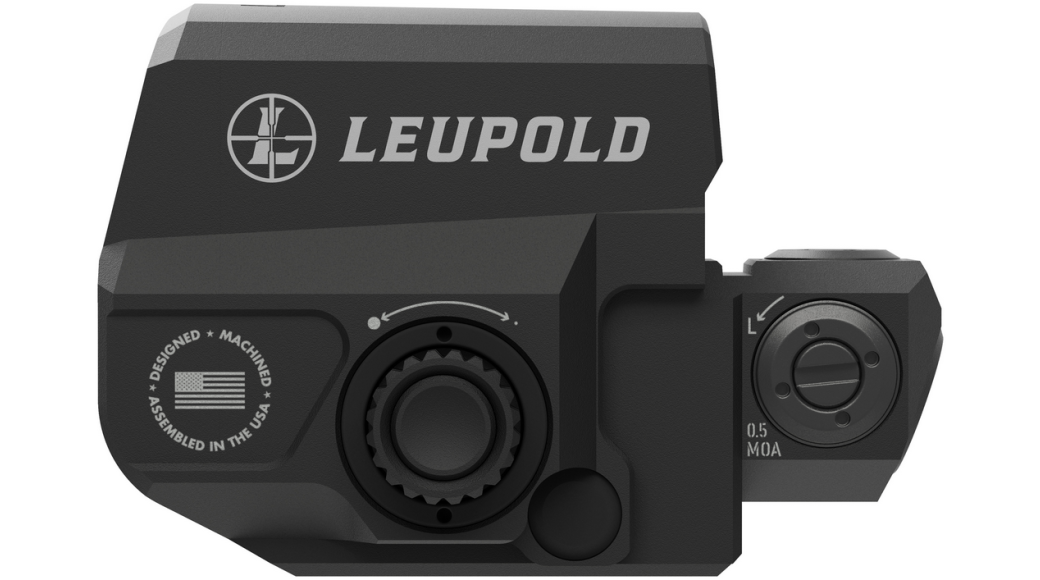

Leupold Carbine Optic (LCO)

Leupold Carbine Optic (LCO)

Part #
119691

When tunnel vision kicks in, the LCO® gives you an edge. An open field of view keeps your peripheral vision free of knobs, dials, or the scope housing, which can mask targets. The LCO's bold, crisp 1-MOA dot stands out in blinding sun or heavy rain, and you can quickly adjust between its 16 brightness settings to match your conditions.

matte finish
1 MOA Red Dot Reticle info
$699.99
This product has been discontinued and is no longer available for purchase
Search products in the same Shotgun

When tunnel vision kicks in, the LCO® gives you an edge. An open field of view keeps your peripheral vision free of knobs, dials, or the scope housing, which can mask targets. The LCO's bold, crisp 1-MOA dot stands out in blinding sun or heavy rain, and you can quickly adjust between its 16 brightness settings to match your conditions.

The LCO® is waterproof to 66 feet and can take a beating thanks to its aircraft-grade aluminum housing. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
Leupold’s Professional-Grade Red Dot Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Leupold’s Professional-Grade Red Dot Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Objective No
Side Focus No
Elevation Adjustment Type Coin Click
Zero Stop No
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Windage Adjustment Type Coin Click
Custom Dial System (CDS) No
Custom Dial Compatible No
BDC Dial Included No
Reticle Type Illuminated
Reticle 1 MOA Dot
Battery Type CR123A
Switch Type Dial
Daylight Bright Illumination Yes
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 9.5
Elevation Adjustment Value per Click 1/2MOA
Elevation Adjustment Range (MOA) 60
Elevation Adjustment Range (MIL) 17
Elevation Adjustment Range (cm @ 100m) 174
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/2MOA
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17
Windage Adjustment Range (cm @ 100m) 174
Windage Adjustment Per Revolution 15 MOA
Magnification Min 1
Eye Relief Low Mag (in) Unlimited
Battery Life (hr), Low Intensity 1800
Battery Life (hr), High Intensity 96
Number of Illum Settings 16
Total Mounting Space (in) 0
Front Mounting Space (in) 0
Rear Mounting Space (in) 0
Eyepiece Length (in) 0
Objective Length (in) 0
Objective Diameter (in) 0
Eyepiece Diameter (in) 0
Dimensions
A Total Length (in) - A 3.6
Documents

Downloadable PDFs

Detailed reticle info

1 MOA Red Dot

  • Dot provides definitive aiming point
  • 1 MOA dot is ideal for precise shot placement
  • Does not obscure target
  • Provides wide field of view
  • Rapid target engagement
  • Red illumination
  • 1 MOA is approximately 1 inch at 100 yards
  • Rear (second) focal plane
