Gold Ring

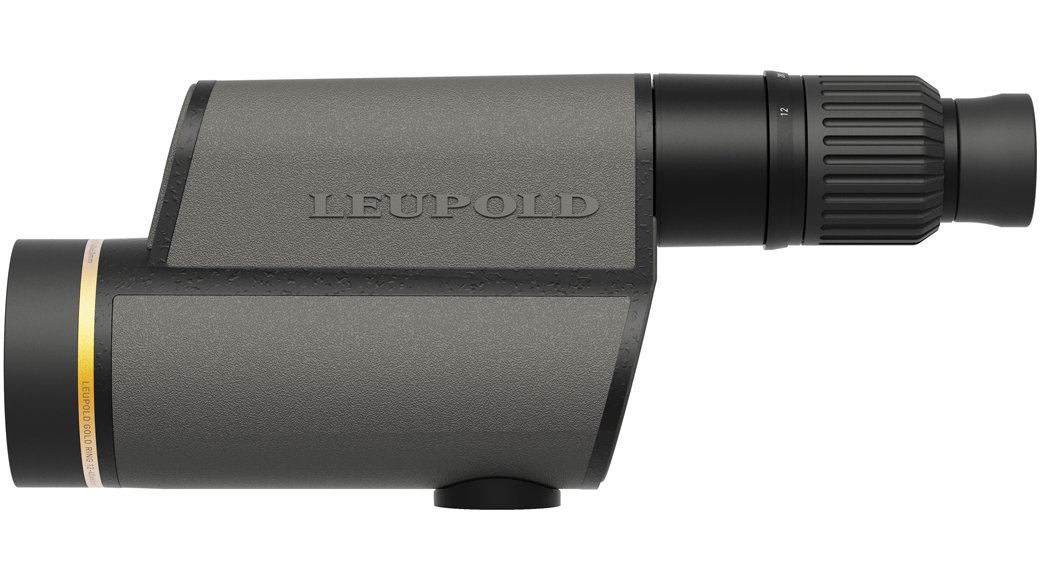

GR 12-40x60mm HD Impact

Part #
120373

Proven performance, outstanding HD image quality, a wide field of view, and a compact 12-40x60mm size; our Gold Ring® HD spotting scopes have it all. High-definition performance provide sharper details at maximum magnification, while Leupold's unique Folded Light Path System uses lighter mirrors rather than a heavier prism to create a more rugged, compact, and lightweight design.

shadow gray finish
Impact Reticle info
$1,399.99

Proven performance, outstanding HD image quality, a wide field of view, and a compact 12-40x60mm size; our Gold Ring® HD spotting scopes have it all. High-definition performance provide sharper details at maximum magnification, while Leupold's unique Folded Light Path System uses lighter mirrors rather than a heavier prism to create a more rugged, compact, and lightweight design. This system also handles abuse better than prism systems, making it ideal for backcountry hunters or anyone else putting their optics through the paces. Add the optional Impact Reticle, and you get an MOA scale in the front focal plane for fast and accurate shot calling and trophy measurement at any magnification.

Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

Like all Leupold® spotting scopes, it's fogproof, waterproof, and guranteed to perform for life. It's also designed, machined, and assembled in the USA.

Features
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Folded light path technology helps achieve a compact, lightweight design.
Exterior lens surfaces are treated with DiamondCoat 2, an ion-assist lens coating, for higher light transmission and the greatest level of abrasion resistance we've ever offered. DiamondCoat 2 has the additional advantage of assisting in light transmission, for greater brightness, clarity and contrast, and will prove its worth in the wildest places on earth.
Our fully multi-coated lens system ensures maximum brightness for clarity, contrast, and color fidelity.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
A built-in 1/4-20 rotatable tripod adapter port makes it easy to mount to a tripod.
Lightweight but tough as nails, a rugged magnesium housing protects the optic during fast-paced action.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures and elevation changes, so the internals of the optics stay moisture free and crystal clear for life.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Folded light path technology helps achieve a compact, lightweight design.
Exterior lens surfaces are treated with DiamondCoat 2, an ion-assist lens coating, for higher light transmission and the greatest level of abrasion resistance we've ever offered. DiamondCoat 2 has the additional advantage of assisting in light transmission, for greater brightness, clarity and contrast, and will prove its worth in the wildest places on earth.
Our fully multi-coated lens system ensures maximum brightness for clarity, contrast, and color fidelity.
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
A built-in 1/4-20 rotatable tripod adapter port makes it easy to mount to a tripod.
Lightweight but tough as nails, a rugged magnesium housing protects the optic during fast-paced action.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures and elevation changes, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Shadow Gray
Waterproof Yes
Reticle Impact
Tripod Included No
Eyepiece Style Straight
Length (in) 12.4
Weight (oz) 37
Magnification Max 40
Magnification Min 12
Objective Diameter (mm) 60
Linear FOV Low Mag (ft@1000yds) 168
Linear FOV High Mag (ft@1000yds) 52
Angular FOV Low Mag (Degrees) 3.2
Angular FOV High Mag (Degrees) 1
Eye Relief Low Mag (mm) 30
Eye Relief High Mag (mm) 30
Exit Pupil Low Mag 4.8
Exit Pupil High Mag 1.5
Close Focus Distance (ft) 36
Documents

Downloadable PDFs

Detailed reticle info

Impact

Download PDF
  • Patented Leupold® design specifically for our Gold Ring® Spotting Scope line
  • Incorporates the MOA measurement system, with a grid style pattern
  • Features 1 MOA hash marks on horizontal and vertical posts
  • Grid is 16 MOA wide and 32 MOA tall
  • Every fourth line is numbered with the MOA value for quick reference points
  • Makes calling shot corrections straightforward with multiple well-defined aiming points
  • Best used with a rifle scope featuring one of our Impact™ reticles
  • 1 MOA is approximately 1 inch at 100 yards
  • Front (first) focal plane
