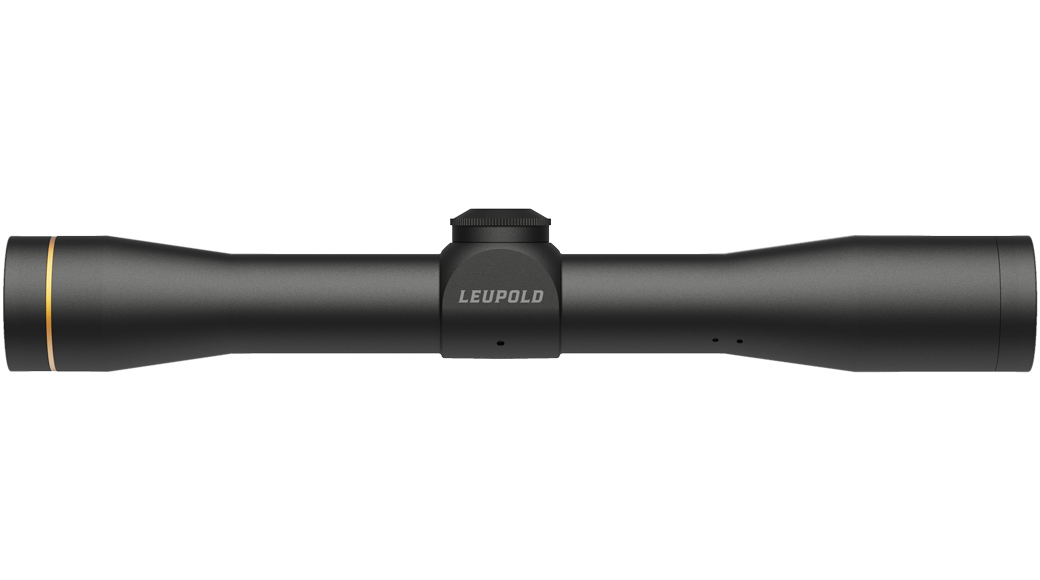

FX-II Scout 2.5x28 Duplex

Description

The ideal choice for scout rifles, lever action rifles, or any time you want to mount your optics in front of the receiver. There's no secret to the enduring popularity of Leupold's fixed power riflescopes. Their simplicity, rugged performance, and supreme accuracy speak volumes.

We put nearly a century of optical know-how into each one, for an image that has to be seen to be appreciated. Built around Leupold's Advanced Optical System, the FX™-II Scout offers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand. It can take a beating, too. The 2.5x28mm is tested to the same harsh standards as all other Leupold® scopes.

The FX-II Scout is 100% waterproof and fogproof. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

Product Features

Features

Advanced Optical System

Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

Second Focal Plane

In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.

Waterproof, Fogproof, & Shockproof

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

Specifications

More Information
Badge	Discontinued
BDC Dial Included	No
Custom Dial Compatible	No
Daylight Bright Illumination	No
Custom Dial System (CDS)	No
Elevation Adjustment Type	Coin Click
Electronic Reticle Level	No
Guard-ion Lens Coating	No
Illuminated	No
Locking Dial	No
Motion Sensor Technology (MST)	No
Nightvision Compatible Illumination	No
Revolution Indicator	No
Reticle	Duplex
Rezero Type	Resettable Index Ring
Adjustable Objective	No
Side Focus	No
Windage Adjustment Type	Coin Click
Weight (oz)	7.5
Elevation Adjustment Value per Click	1/4MOA
Elevation Adjustment Range (MOA)	100
Elevation Adjustment Range (MIL)	29
Elevation Adjustment Range (cm @ 100m)	291
Elevation Adjustment Per Revolution	15 MOA
Elevation Dial Travel Limit	Total Scope Travel
Windage Adjustment Value per Click	1/4MOA
Windage Adjustment Range (MOA)	100
Windage Adjustment Range (MIL)	29
Windage Adjustment Range (cm @ 100m)	291
Windage Adjustment Per Revolution	15 MOA
Magnification Min	2.5
Objective Lens Diameter (mm)	28
Linear FOV Low Mag (ft@100yds)	22
Angular FOV Low Mag (Degrees)	4.2
Eye Relief Low Mag (in)	9.3
Fixed Parallax-Free Distance (yd)	150

Dimensions

A Total Length (in) - A	10.1
B Total Mounting Space (in) - B	5.6
C Front Mounting Space (in) - C	2.1
D Rear Mounting Space (in) - D	2.3
E Eyepiece Length (in) - E	2.3
F Objective Length (in) - F	2.2
G Objective Diameter (in) - G	1.4
H Eyepiece Diameter (in) - H	1.4
K Maintube Diameter (mm/in) - K	1 Inch
