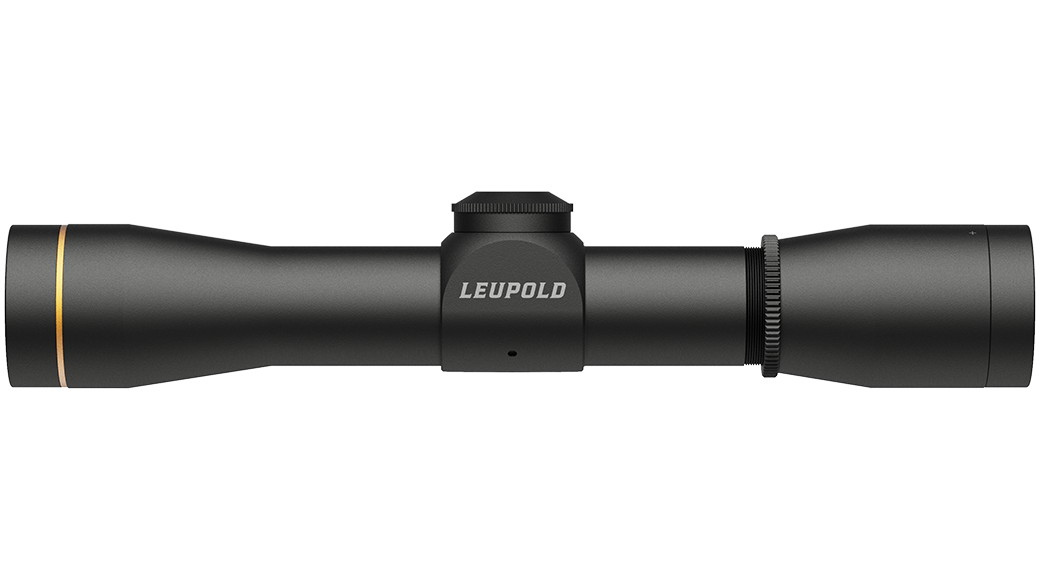

FX-II Handgun 4x28 Duplex

Part #
58750

With Leupold® Handgun scopes, you not only eliminate the need to focus on the front sight, you also eliminate the inaccuracy of a handgun's short sight radius. All that's left is you, the crosshairs, and the game. These scopes can take a beating, too. They're tested to the same rugged standards as all other Leupold scopes.

Duplex® Reticle info
$449.99
This product has been discontinued and is no longer available for purchase
Search products in the same Discontinued Riflescopes
Find it locally

The FX™-II Handgun 4x28mm scope not only eliminates the need to focus on the front sight, but it also eliminates the inaccuracy of a handgun's short sight radius. All that's left is you, the crosshairs, and the game.

There's no secret to the enduring popularity of Leupold's fixed power riflescopes. Their simplicity, rugged performance, and supreme accuracy speak volumes. We put nearly a century of optical know-how into each one, for an image that has to be seen to be appreciated. Built around Leupold's Advanced Optical System, the FX-II Handgun offers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.​

Tested to the same harsh standards as our other scopes, the FX-II Handgun is 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

Features
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
BDC Dial Included No
Custom Dial Compatible No
Daylight Bright Illumination No
Custom Dial System (CDS) No
Elevation Adjustment Type Coin Click
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Locking Dial No
Magnification Type Fixed
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Revolution Indicator No
Reticle Duplex
Rezero Type Resettable Index Ring
Reticle Type Second Focal Plane
Adjustable Objective No
Side Focus No
Windage Adjustment Type Coin Click
Weight (oz) 7
Elevation Adjustment Value per Click 1/2MOA
Elevation Adjustment Range (MOA) 110
Elevation Adjustment Range (MIL) 32
Elevation Adjustment Range (cm @ 100m) 320
Elevation Adjustment Per Revolution 30 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/2MOA
Windage Adjustment Range (MOA) 110
Windage Adjustment Range (MIL) 32
Windage Adjustment Range (cm @ 100m) 320
Windage Adjustment Per Revolution 15 MOA
Magnification Min 4
Objective Lens Diameter (mm) 28
Linear FOV Low Mag (ft@100yds) 9
Angular FOV Low Mag (Degrees) 1.7
Eye Relief Low Mag (in) 18
Fixed Parallax-Free Distance (yd) 100
Dimensions
A Total Length (in) - A 8.4
B Total Mounting Space (in) - B 4
C Front Mounting Space (in) - C 1.4
D Rear Mounting Space (in) - D 1.4
E Eyepiece Length (in) - E 2.3
F Objective Length (in) - F 2.2
G Objective Diameter (in) - G 1.4
H Eyepiece Diameter (in) - H 1.4
K Maintube Diameter (mm/in) - K 1 Inch

Detailed reticle info

Duplex®

Download PDF
  • Invented in 1962 by Leupold®
  • Defined by heavy posts
  • Stands out against cover in low light
  • Quick target acquisition with thin lines at the center
  • Most popular reticle in the world
  • Rear (second) focal plane
