D-EVO

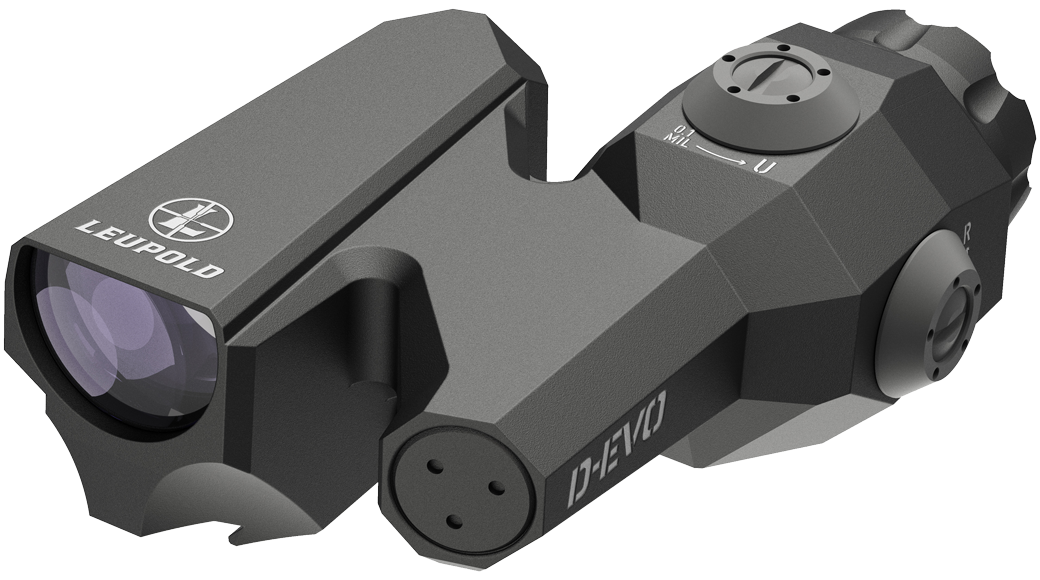

D-EVO 6x20 CMR-W

Part #
120322

The D-EVO's unique design lets you move between your 1x red dot site and the 6x magnification D-EVO® by simply shifting your eye line–not your head. Now you can quickly move between close-quarter shots and mid-range shots with speed and accuracy.

matte finish
CMR-W D-EVO Reticle info
$999.99
This product has been discontinued and is no longer available for purchase
Search products in the same D-EVO

If we told you that you can see your 1x red dot image and a 6x magnified image at the same time, you might think we were crazy. But crazy ideas often lead to ground-breaking technologies. Mount the Leupold® Dual-Enhanced View Optic (D-EVO®) in front of virtually any compact red dot sight and instantly maximize the range of your AR-style rifle.

The D-EVO's unique design lets you move between your 1x red dot site and the 6x magnification D-EVO by simply shifting your eye line–not your head. Now you can quickly move between close-quarter shots and mid-range shots with speed and accuracy. Whether your target materializes at 20 yards or 200 yards, you'll be ready to engage. It's not magic, it's the future of carbine optics.

Leupold® pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks. That means the D-EVO will stay moisture free and crystal-clear for life. And, like all Leupold scopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
Leupold’s Professional-Grade Red Dot Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
The Compact Footprint design allows you to mount the optic on different platforms and in combinations with other sights.
A built-in Picatinny mount allows you to quickly and easily mount the optic with no additional hardware.
The Quick Eye Magnification Shift design allows you to glance down from your unmagnified reflex optic to the magnified optic and gain a clear, 6x view of the target, all without moving your head on the rifle.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Leupold’s Professional-Grade Red Dot Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
The Compact Footprint design allows you to mount the optic on different platforms and in combinations with other sights.
A built-in Picatinny mount allows you to quickly and easily mount the optic with no additional hardware.
The Quick Eye Magnification Shift design allows you to glance down from your unmagnified reflex optic to the magnified optic and gain a clear, 6x view of the target, all without moving your head on the rifle.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
Finish Matte
Adjustable Objective No
Side Focus No
Elevation Adjustment Type Coin Click
Zero Stop No
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Windage Adjustment Type Coin Click
Custom Dial System (CDS) No
Custom Dial Compatible No
BDC Dial Included No
Reticle CMR-W D-EVO
Illuminated No
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 13.8
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 50
Elevation Adjustment Range (MIL) 15
Elevation Adjustment Range (cm @ 100m) 145
Elevation Adjustment Per Revolution 6 MIL
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 50
Windage Adjustment Range (MIL) 15
Windage Adjustment Range (cm @ 100m) 145
Windage Adjustment Per Revolution 6 MIL
Magnification Min 6
Objective Lens Diameter (mm) 20
Linear FOV Low Mag (ft@100yds) 15.7
Angular FOV Low Mag (Degrees) 3
Eye Relief Low Mag (in) 3.4
Fixed Parallax-Free Distance (yd) 150
Total Mounting Space (in) 0
Front Mounting Space (in) 0
Rear Mounting Space (in) 0
Eyepiece Length (in) 0
Objective Length (in) 0
Objective Diameter (in) 0
Eyepiece Diameter (in) 0
Dimensions
A Total Length (in) - A 4.6
Documents

Downloadable PDFs

Detailed reticle info

CMR-W D-EVO

Download PDF
  • Compensates for the lateral offset of the D-EVO® so shooters can estimate range and engage targets with maximum speed and accuracy
  • Rear (second) focal plane
