BX-4 Range HD

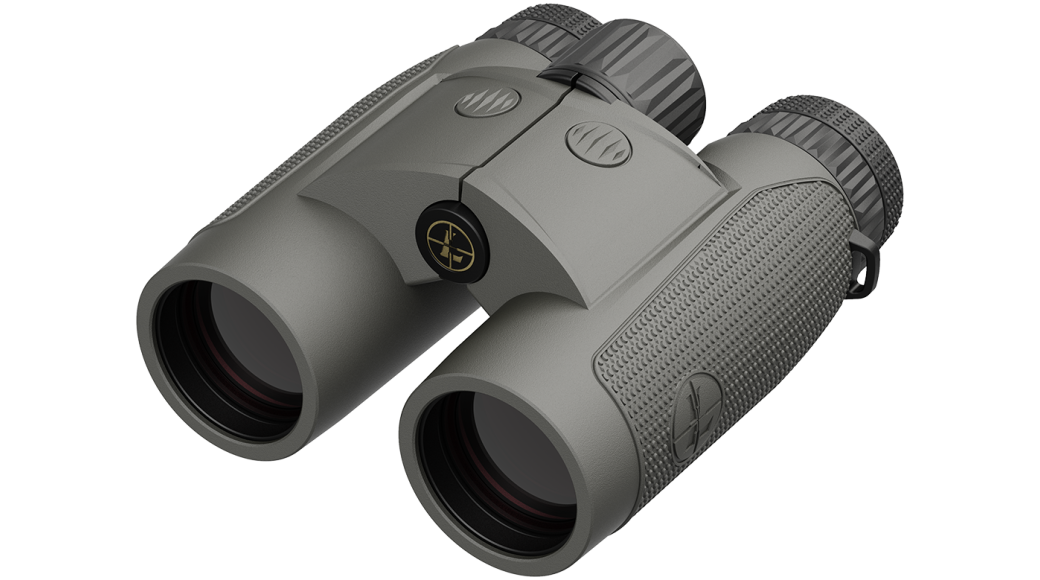

BX-4 Range HD TBR/W 10x42mm

Out of stock
Part #
182883

When speed is paramount, there’s no substitute for a range-finding binocular. The BX-4 Range HD TBR®/W 10x42mm fuses our DNA® engine and ballistics software with the optical performance diehard hunters and shooters demand.

$1,599.99
Find it locally

When speed is paramount, there’s no substitute for a range-finding binocular. The BX-4 Range HD TBR®/W 10x42mm fuses our DNA® engine and ballistics software with the optical performance diehard hunters and shooters demand. Now you can spot and range targets without wasting valuable seconds switching between gear. Its high-contrast red OLED display delivers visible readouts in any light, and its edge-to-edge clarity makes glassing sessions easy on the eyes. The next time you’re packing for a match or hunt, cut the excess. Take the BX-4 Range HD TBR/W.

This time-saving combo of tech and glass is built around our Elite Optical System. It delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity you can count on in the backcountry. Compare it to other range-finding binoculars in its class, and you’ll see a difference, especially in low light.

But that’s just half of what this optic is all about. Its 10x magnification provides a large field of view for glassing in tight areas while still being powerful enough to make positive IDs from a distance. And when you finally spot your target, one press of the power button will tell you exactly how far to send your rounds. Backed by our Lifetime Optics Guarantee and our Two-Year Electronics Guarantee, the BX-4 Range HD is built for years of performance.

Features
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
A built-in 1/4-20 rotatable tripod adapter port makes it easy to mount to a tripod.
Our ergonomic design ensures our products are slim, lightweight, and fit well in your hands no matter what size they are.
All-day glassing comfort with increased contact area, and a flexible ergonomic design.
Features an extremely smooth focusing system for fine adjustments.
Removable twist-up eyecups allow you replace them in the field if damaged.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures and elevation changes, so the internals of the optics stay moisture free and crystal clear for life.
Line of Sight (LOS) calculates the distance to a target in a straight line, regardless of any incline or decline.
Bow Mode uses the distance and the angle of a shot to calculate a ballistic equivalent to the target for more accurate uphill and downhill shots.
TBR
True Ballistic Range® (TBR®) technology provides ballistically calculated ranges for extremely accurate shots at longer distances and steeper angles.
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
A built-in 1/4-20 rotatable tripod adapter port makes it easy to mount to a tripod.
Our ergonomic design ensures our products are slim, lightweight, and fit well in your hands no matter what size they are.
All-day glassing comfort with increased contact area, and a flexible ergonomic design.
Features an extremely smooth focusing system for fine adjustments.
Removable twist-up eyecups allow you replace them in the field if damaged.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures and elevation changes, so the internals of the optics stay moisture free and crystal clear for life.
Line of Sight (LOS) calculates the distance to a target in a straight line, regardless of any incline or decline.
Bow Mode uses the distance and the angle of a shot to calculate a ballistic equivalent to the target for more accurate uphill and downhill shots.
True Ballistic Range® (TBR®) technology provides ballistically calculated ranges for extremely accurate shots at longer distances and steeper angles.
Specifications
More Information
Badge Coming Soon
Tripod Compatible (1/4-20) Yes
Rifle Angle Compensation TBR/W
True Ballistic Range - Wind (TBR-W) Yes
Horizontal Distance (Trig) No
Archer's Advantage No
Trophy Scale No
Flightpath No
Last Target Mode No
Battery Type CR2
Display Type OLED
Guard-ion Lens Coating Yes
Length (in) 5.9
Weight (oz) 39
Magnification 10
Objective Lens Diameter (mm) 42
Linear FOV (ft@1000 yd) 334
Angular FOV (Degrees) 6.2
Eye Relief (mm) 17
Min Diopter (dpt) -3.5
Max Diopter (dpt) 3.5
Close Focus Distance (ft) 13
Interpupillary Distance Max (mm) 76
Interpupillary Distance Min (mm) 56
Light Transmission Left Channel (%) 81
Light Transmission Right Channel (%) 80
Accuracy to 125 (yd) 1
Accuracy to 1000 (yd) 1
Accuracy above 1000 (yd) % .2
Battery Life (Actuations) 3000
Max Range - Deer (yd) 1100
Max Range - Trees (yd) 1600
Max Range - Reflective (yd) 2600
Min Range (yd) 12
Laser Classification Class 1M
