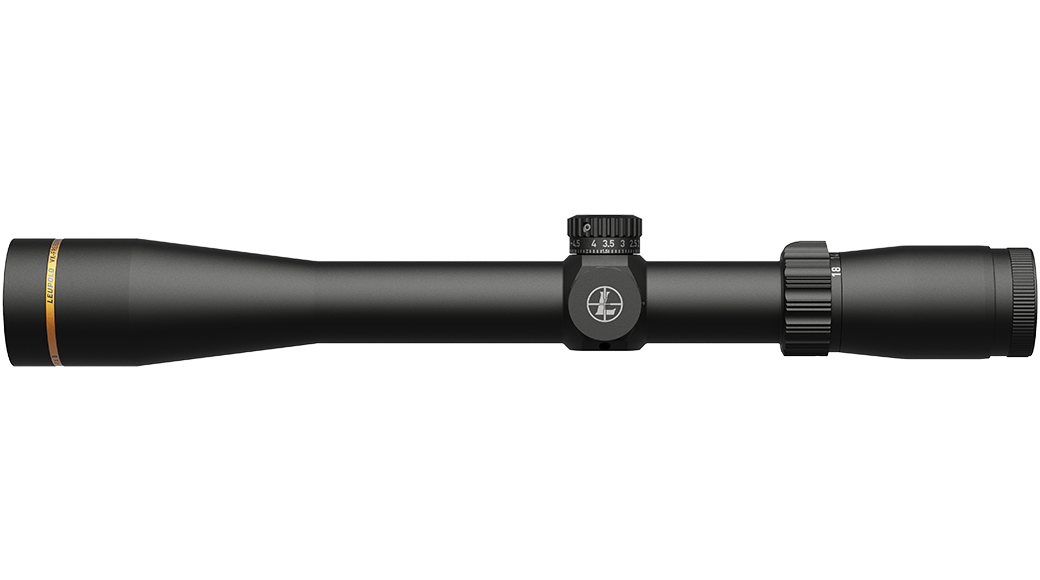

VX-Freedom AR 6-18X40 Side Focus TMR
Part #
182003
The VX®-Freedom® AR 6-18x40mm delivers the features you need to get the most out of your .223/5.56 on the range or in competition. With a host of features you would expect in a higher price-point scope, this 18x magnification scope can make your long range dreams come true.
$542.29
The VX®-Freedom® AR 6-18x40mm delivers the features you need to get the most out of your .223/5.56 on the range or in competition. With a host of features you would expect in a higher price-point scope, this 18x magnification scope can make your long range dreams come true.
It comes with our proprietary Firedot® illumination to give you a bright, intuitive aiming point that won't get lost in low-light conditions. Combine that with Leupold's Advanced Optical Syste, which delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
| BDC Dial Included | Yes |
|---|---|
| Custom Dial Compatible | Yes |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | AR Finger Click |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Illuminated | No |
| Locking Dial | No |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Revolution Indicator | No |
| Reticle | TMR (VX-Freedom) |
| Rezero Type | Set Screw |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 17 |
| Elevation Adjustment Value per Click | 0.1Mil |
| Elevation Adjustment Range (MOA) | 55 |
| Elevation Adjustment Range (MIL) | 16 |
| Elevation Adjustment Range (cm @ 100m) | 160 |
| Elevation Adjustment Per Revolution | 6 MIL |
| Elevation Dial Travel Limit | 5.6MIL |
| Windage Adjustment Value per Click | 0.1Mil |
| Windage Adjustment Range (MOA) | 55 |
| Windage Adjustment Range (MIL) | 16 |
| Windage Adjustment Range (cm @ 100m) | 160 |
| Windage Adjustment Per Revolution | 6 MIL |
| Magnification Max | 18 |
| Magnification Min | 6 |
| Objective Lens Diameter (mm) | 40 |
| Linear FOV Low Mag (ft@100yds) | 13.1 |
| Linear FOV High Mag (ft@100yds) | 6.8 |
| Angular FOV Low Mag (Degrees) | 2.5 |
| Angular FOV High Mag (Degrees) | 1.3 |
| Eye Relief Low Mag (in) | 5.1 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 60 |
Dimensions
| A Total Length (in) - A | 14.3 |
|---|---|
| B Total Mounting Space (in) - B | 6.6 |
| C Front Mounting Space (in) - C | 3.5 |
| D Rear Mounting Space (in) - D | 1.9 |
| E Eyepiece Length (in) - E | 3.4 |
| F Objective Length (in) - F | 3.4 |
| G Objective Diameter (in) - G | 1.8 |
| H Eyepiece Diameter (in) - H | 1.63 |
| K Maintube Diameter (mm/in) - K | 30 mm |
