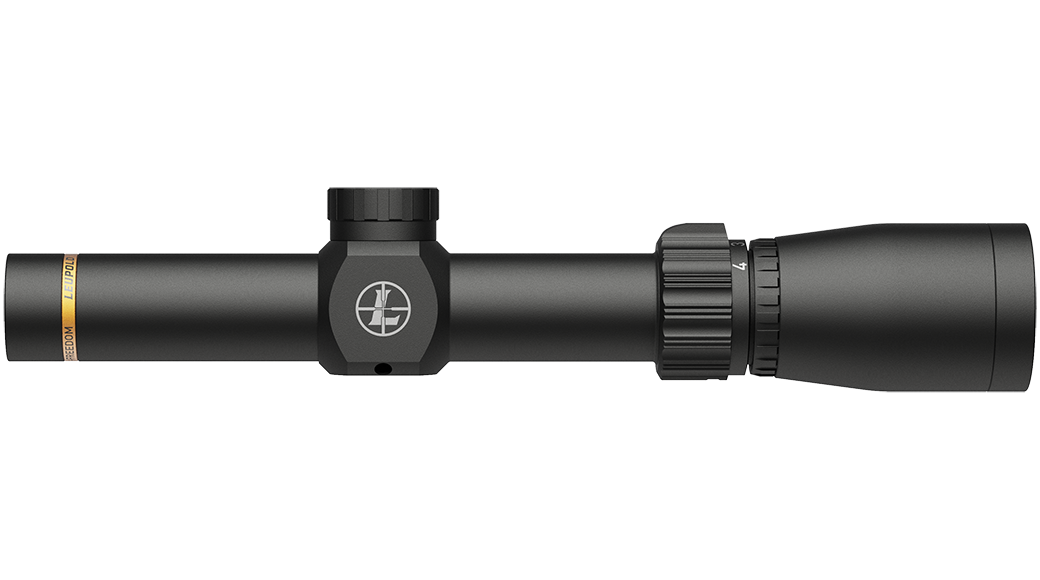

BLEM VX-Freedom 1.5-4x20 (1 inch) MOA Ring

Description

The VX®-Freedom® delivers the legendary Leupold® performance and dependability hunters and shooters have demanded for decades. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, close to mid-range shots.

Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Product Features

Features

3:1 Zoom Ratio

A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.

Scratch Resistant Lenses

Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.

Waterproof, Fogproof, & Shockproof

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.

Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

Specifications

More Information
BDC Dial Included	No
Custom Dial Compatible	No
Daylight Bright Illumination	No
Custom Dial System (CDS)	No
Elevation Adjustment Type	Finger Click
Electronic Reticle Level	No
Guard-ion Lens Coating	No
Illuminated	No
Light Management System	Advanced Optical System
Locking Dial	No
Magnification Type	Variable
Motion Sensor Technology (MST)	No
Nightvision Compatible Illumination	No
Reticle Focal Plane	Second Focal Plane
Revolution Indicator	No
Reticle	MOA-Ring
Rezero Type	Resettable Index Ring
Reticle Type	Second Focal Plane
Adjustable Objective	No
Side Focus	No
Windage Adjustment Type	Finger Click
Weight (oz)	9.6
Elevation Adjustment Value per Click	1/4MOA
Elevation Adjustment Range (MOA)	125
Elevation Adjustment Range (MIL)	36
Elevation Adjustment Range (cm @ 100m)	364
Elevation Adjustment Per Revolution	15 MOA
Elevation Dial Travel Limit	Total Scope Travel
Windage Adjustment Value per Click	1/4MOA
Windage Adjustment Range (MOA)	125
Windage Adjustment Range (MIL)	36
Windage Adjustment Range (cm @ 100m)	364
Windage Adjustment Per Revolution	15 MOA
Magnification Max	4
Magnification Min	1.5
Objective Lens Diameter (mm)	20
Linear FOV Low Mag (ft@100yds)	74.2
Linear FOV High Mag (ft@100yds)	29.4
Angular FOV Low Mag (Degrees)	14.1
Angular FOV High Mag (Degrees)	5.6
Eye Relief Low Mag (in)	4.2
Eye Relief High Mag (in)	3.7
Fixed Parallax-Free Distance (yd)	150

Dimensions

A Total Length (in) - A	9.35
B Total Mounting Space (in) - B	5.4
C Front Mounting Space (in) - C	2.17
D Rear Mounting Space (in) - D	1.85
E Eyepiece Length (in) - E	3.5
F Objective Length (in) - F	.45
G Objective Diameter (in) - G	1
H Eyepiece Diameter (in) - H	1.56
K Maintube Diameter (mm/in) - K	1 Inch
