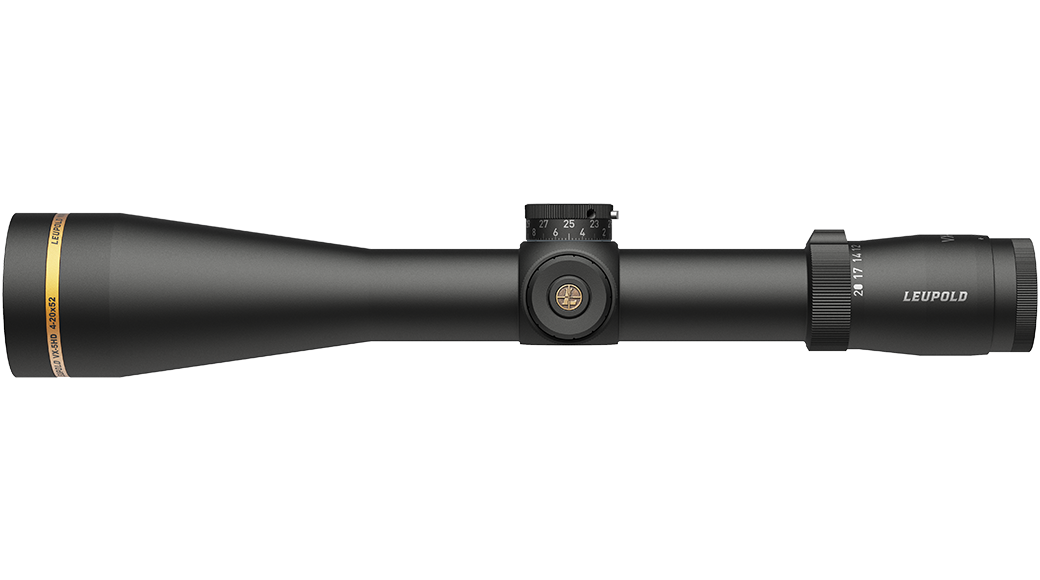

BLEM VX-5HD 4-20x52 CDS-ZL2 Side Focus FireDot Duplex

Description

The VX®-5HD 4-20x52mm may just be that sweet spot you've been looking for in magnification ranges. Low enough magnification to get the job done in densely wooded areas, but with the horsepower at the top-end to make accurate shots at extreme distances. Plus, the low-profile CDS-ZL2 provides precise adjustments with the security of a push-button lock and two revolutions of adjustment.

The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Product Features

Features

5:1 Zoom Ratio

A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.

CDS-ZL2 Elevation Dial

The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.

Custom Dial System

Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

Custom Dial Compatible

Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

Zero Lock Dial

The ZeroLock® system eliminates accidental dial movement by locking it in place.

Zero Stop

The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.

Side Focus

The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.

A versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power (model magnification ranges may be available in powers of 5x: 1-5, 2-10, 3-15, 4-20, etc.), so you can adjust your magnification to find the perfect balance between magnification and field of view for any situation. The larger the zoom ratio, the more versatile one scope can be.

The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold's award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.

Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

The ZeroLock® system eliminates accidental dial movement by locking it in place.

The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.

The side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances.

Specifications

More Information
Battery Type	CR2032
BDC Dial Included	No
Daylight Bright Illumination	Yes
Elevation Adjustment Type	CDS-ZL2
Electronic Reticle Level	No
Guard-ion Lens Coating	No
Illuminated	Yes
Light Management System	Professional-Grade Optical System
Locking Dial	Yes
Magnification Type	Variable
Motion Sensor Technology (MST)	Yes
Nightvision Compatible Illumination	No
Reticle Focal Plane	Second Focal Plane
Revolution Indicator	Yes
Reticle	Illum. FireDot Duplex
Rezero Type	Set Screw
Reticle Type	Illuminated
Adjustable Objective	No
Switch Type	Push Button
Windage Adjustment Type	Pop-Up Rezero
Weight (oz)	23.5
Elevation Adjustment Value per Click	1/4MOA
Elevation Adjustment Range (MOA)	75
Elevation Adjustment Range (MIL)	22
Elevation Adjustment Range (cm @ 100m)	218
Elevation Adjustment Per Revolution	20 MOA
Elevation Dial Travel Limit	38MOA
Windage Adjustment Value per Click	1/4MOA
Windage Adjustment Range (MOA)	75
Windage Adjustment Range (MIL)	22
Windage Adjustment Range (cm @ 100m)	218
Windage Adjustment Per Revolution	15 MOA
Magnification Max	20
Magnification Min	4
Objective Lens Diameter (mm)	52
Linear FOV Low Mag (ft@100yds)	28.4
Linear FOV High Mag (ft@100yds)	7.7
Angular FOV Low Mag (Degrees)	5.4
Angular FOV High Mag (Degrees)	1.5
Eye Relief Low Mag (in)	3.7
Eye Relief High Mag (in)	3.8
Minimum Parallax-Free Distance (yd)	50
Battery Life (hr), Low Intensity	1600
Battery Life (hr), Medium Intensity	1000
Battery Life (hr), High Intensity	300
Number of Illum Settings	8

Dimensions

A Total Length (in) - A	14.7
B Total Mounting Space (in) - B	6.2
C Front Mounting Space (in) - C	2.1
D Rear Mounting Space (in) - D	2.6
E Eyepiece Length (in) - E	3.3
F Objective Length (in) - F	5.1
G Objective Diameter (in) - G	2.4
H Eyepiece Diameter (in) - H	1.8
K Maintube Diameter (mm/in) - K	34 mm
