VX-Freedom

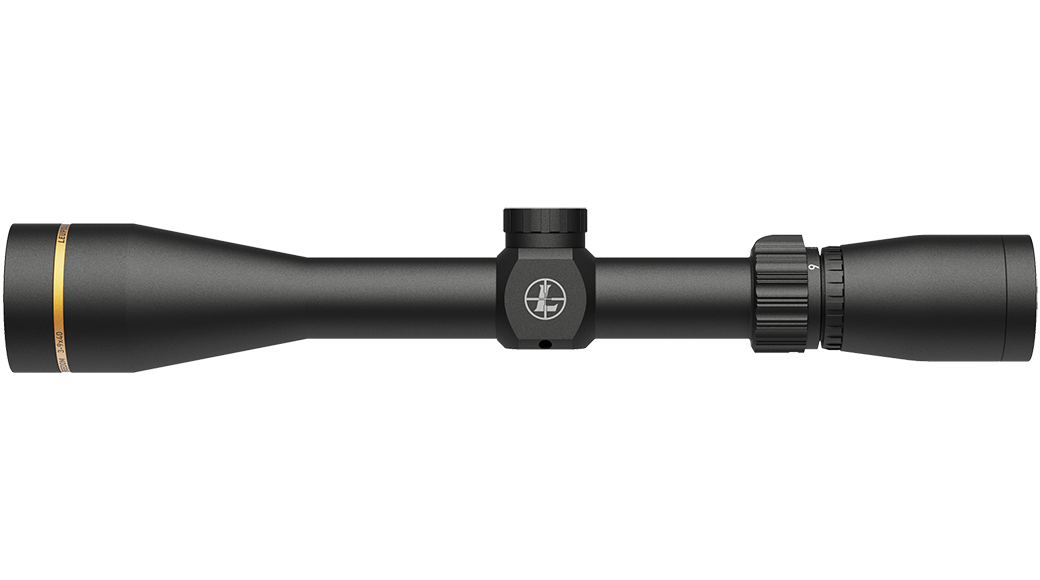

VX-Freedom 3-9x40 Rimfire MOA

Part #
174181

The Leupold® VX®-Freedom® 3-9x40mm Rimfire scope features a 60-yard focus setting, an extremely popular 3-9 magnification range, and our unique Rimfire MOA reticle that's guaranteed to take your plinking to the next level.

Rimfire MOA Reticle info
$299.99
Find it locally

Shooting rimfire is arguably the most fun you'll have with a gun in your hand. So it makes sense to use a dedicated scope to get the most out of the experience. The Leupold® VX®-Freedom® 3-9x40mm rimfire scope features a 60-yard focus setting, an extremely popular 3-9 magnification range, and our unique Rimfire MOA reticle that's guaranteed to take your plinking to the next level.

Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
More Information
BDC Dial Included No
Custom BDC Dial Compatible No
Daylight Bright Illumination No
Custom Dial System (CDS) No
Elevation Adjustment Type Finger Click
Electronic Reticle Level No
Guard-ion Lens Coating No
Illuminated No
Locking Dial No
Magnification Type Variable
Motion Sensor Technology (MST) No
Nightvision Compatible Illumination No
Revolution Indicator No
Reticle Rimfire MOA
Rezero Type Resettable Index Ring
Reticle Type MOA Scale
Adjustable Objective No
Side Focus No
Windage Adjustment Type Finger Click
Weight (oz) 12.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 60
Elevation Adjustment Range (MIL) 17
Elevation Adjustment Range (cm @ 100m) 175
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit Total Scope Travel
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17
Windage Adjustment Range (cm @ 100m) 175
Windage Adjustment Per Revolution 15 MOA
Magnification Max 9
Magnification Min 3
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 33.1
Linear FOV High Mag (ft@100yds) 13.6
Angular FOV Low Mag (Degrees) 6.3
Angular FOV High Mag (Degrees) 2.6
Eye Relief Low Mag (in) 4.2
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 60
Dimensions
A Total Length (in) - A 12.49
B Total Mounting Space (in) - B 5.39
C Front Mounting Space (in) - C 2.32
D Rear Mounting Space (in) - D 1.85
E Eyepiece Length (in) - E 3.5
F Objective Length (in) - F 3.6
G Objective Diameter (in) - G 1.83
H Eyepiece Diameter (in) - H 1.56
K Maintube Diameter (mm/in) - K 1 Inch

Detailed reticle info

Rimfire MOA

Download PDF
  • Proprietary Leupold® design
  • Based off the T-MOA® reticle
  • Provided hash marks in 1 MOA increments
  • Features 25 MOA of measurement
  • 5 MOA hash is wider for quick reference
  • Thinner hash marks for rimfire specific targets
  • Not caliber specific
  • Rear (second) focal plane
